Liftgate Module / Trunk Module Connector End View - C4174A

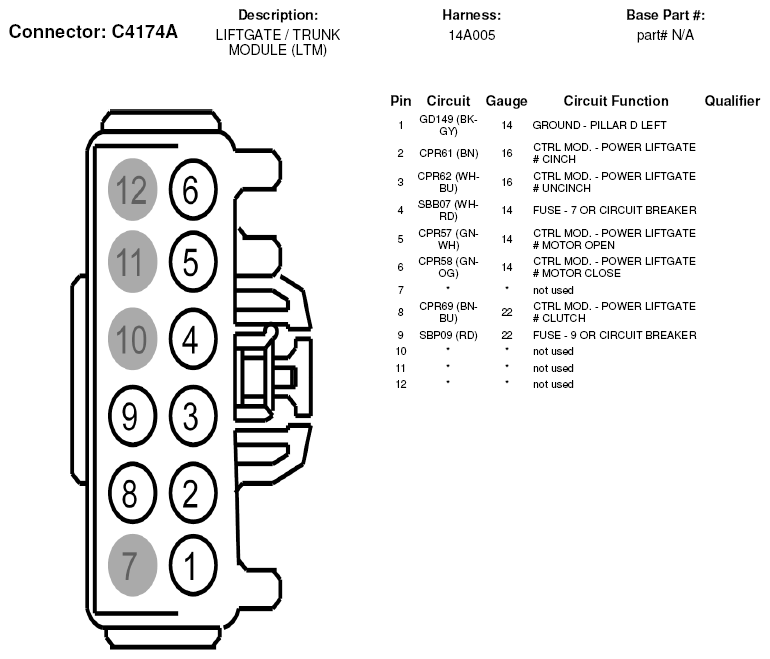

Fig 1: Liftgate Module / Trunk Module Connector End View (C4174A)
G07327290Courtesy of FORD MOTOR CO.
