Steering Column Control Module Connector
›
Steering Column Control Module Connector End View - C2414A
Steering Column Control Module Connector End View - C2414A

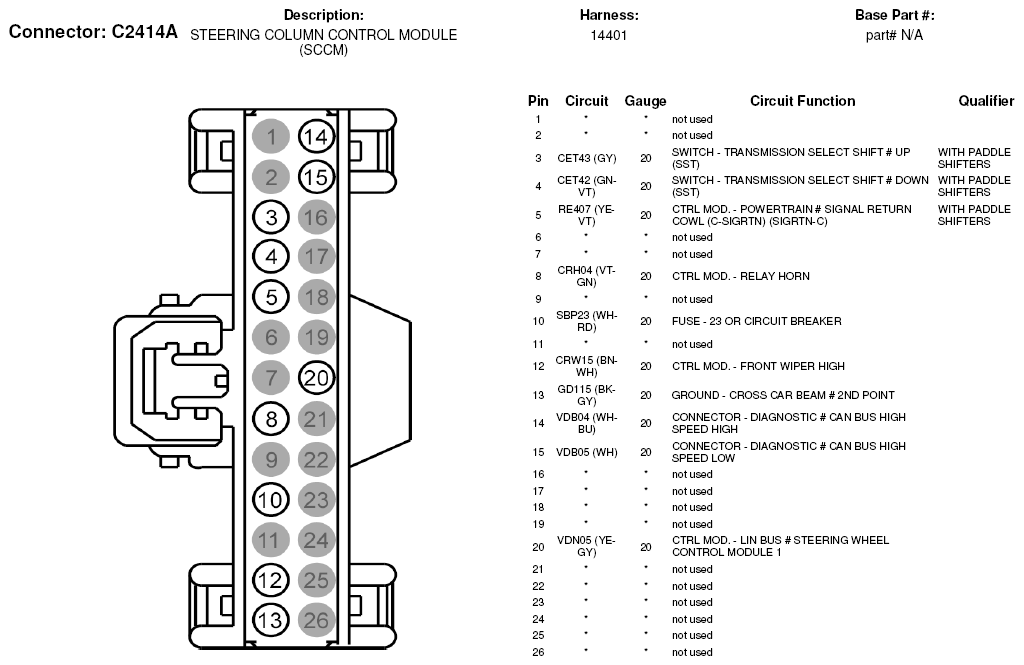

Fig 1: Steering Column Control Module Connector End View (C2414A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
