Steering Column Control Module Connector
›
Steering Column Control Module Connector End View - C2414B
Steering Column Control Module Connector End View - C2414B

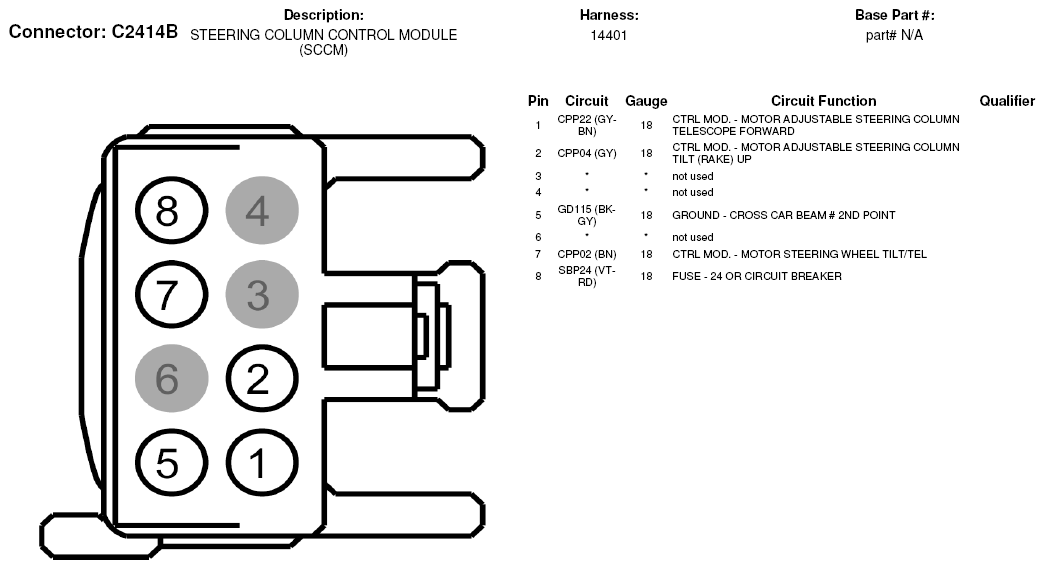

Fig 1: Steering Column Control Module Connector End View (C2414B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
