Steering Column Control Module Connector
›
Steering Column Control Module Connector End View - C2414C
Steering Column Control Module Connector End View - C2414C

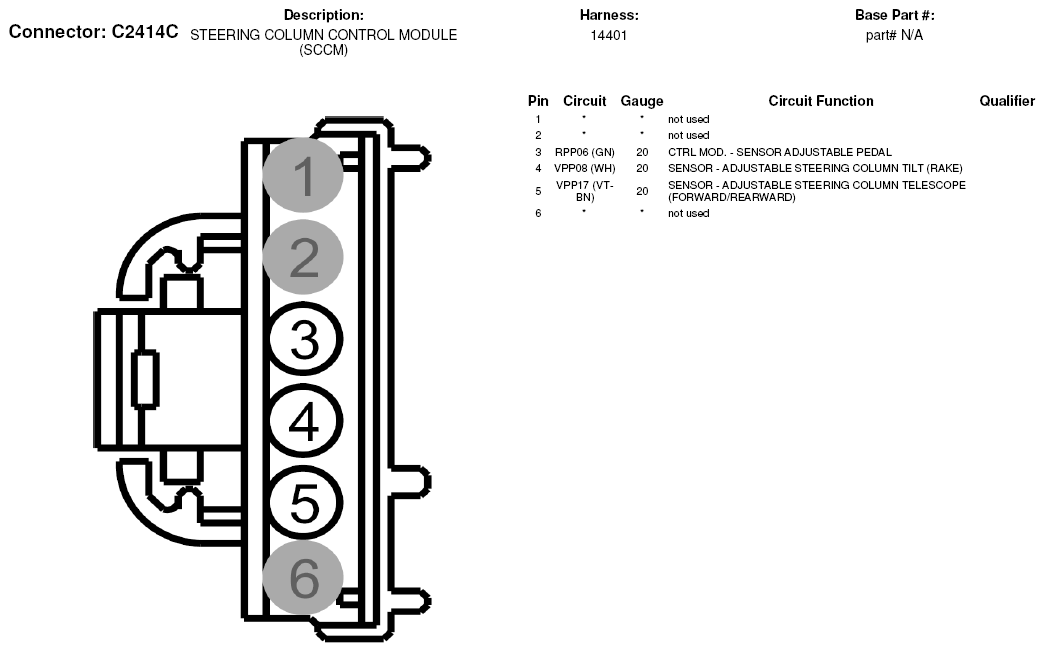

Fig 1: Steering Column Control Module Connector End View (C2414C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
