Steering Column Control Module Connector
›
Steering Column Control Module Connector End View - C2414D
Steering Column Control Module Connector End View - C2414D

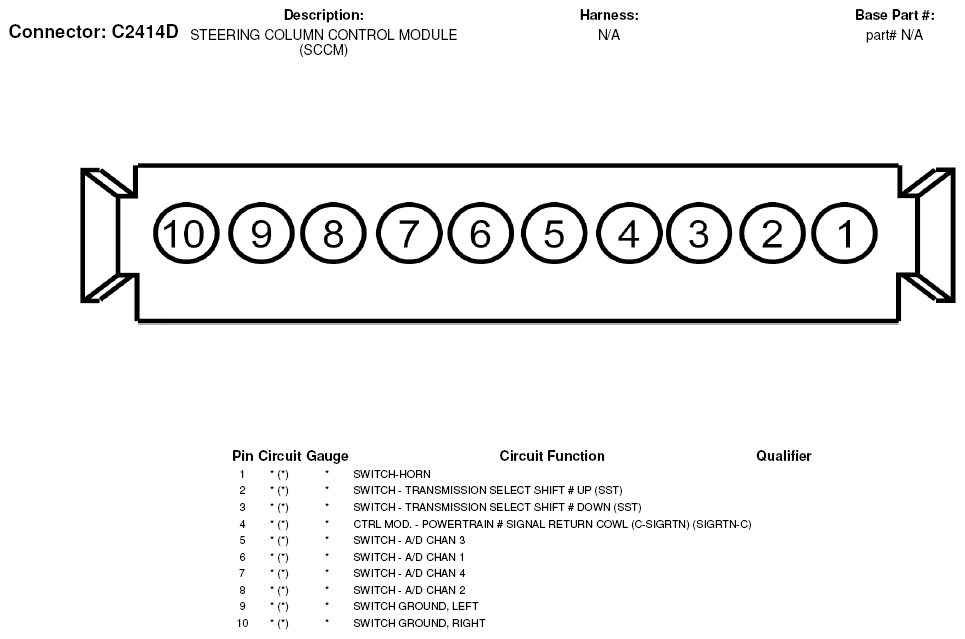

Fig 1: Steering Column Control Module Connector End View (C2414D)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
