Removal and Installation

  1. Release the memory SET switch bezel tab at the top and separate from the door panel.

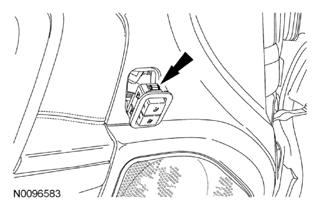

    Fig 1: Locating Memory SET Switch Bezel Tab
    G07788979Courtesy of FORD MOTOR CO.
  2. Disconnect the electrical connector, release the 4 tabs and remove the memory SET switch.
  3. To install, reverse the removal procedure.
