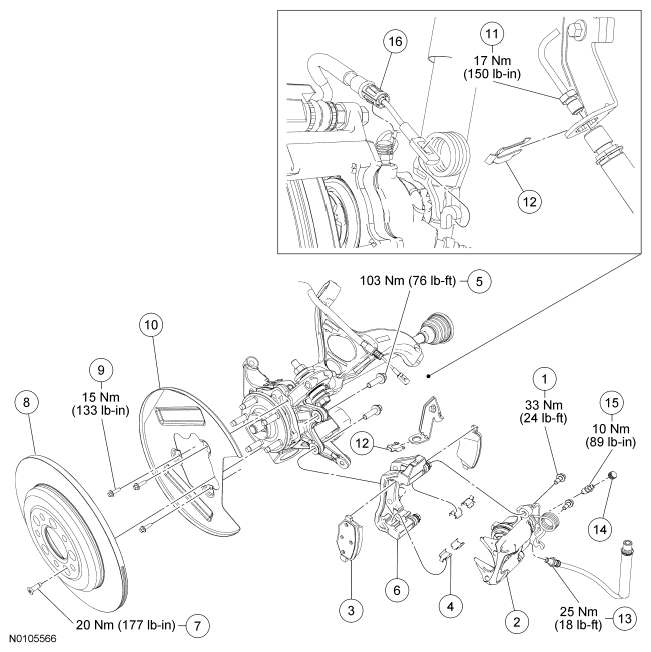

Rear Disc Brake System - Exploded View
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake caliper bolt (2 required) (part of 2386 service kit) |
| 2 | 2552 RH/2553 LH | Brake caliper |
| 3 | - | Brake pad (part of 2200 service kit) |
| 4 | - | Spring clip (part of 2200 service kit) (4 required) |
| 5 | W710681 | Brake caliper anchor plate bolt (2 bolts each side) |
| 6 | - | Brake caliper anchor plate (part of 2B511 RH/2B512 LH service kits) |
| 7 | W708733 | Brake disc screw |
| 8 | 2C026 | Brake disc |
| 9 | W505255 | Brake disc shield bolt (3 required) |
| 10 | 2C028 RH/2C029 LH | Brake disc shield |
| 11 | - | Brake tube fitting (part of 2C296) |
| 12 | 386493 | Brake flexible hose retainer |
| 13 | 2A442 | Brake flexible hose |
| 14 | - | Bleeder cap (part of 2208) |
| 15 | 2208 | Bleeder screw |
| 16 | 2A635 RH/2A809 LH | Parking brake cable |
- For additional information, refer to the appropriate procedures in this service information.
