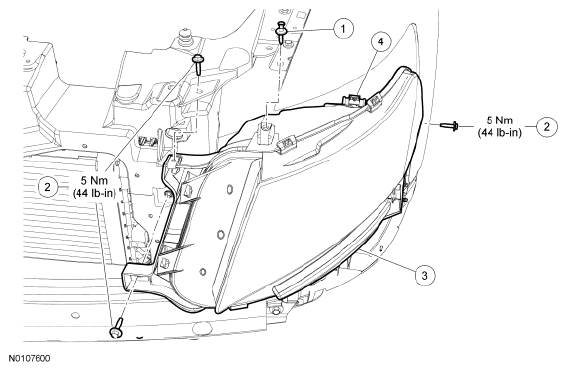

Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W709984 |
Pin-type retainer |
| 2 |
W505425 |
Headlamp assembly bolts (3 required) |
| 3 |
- |
Headlamp electrical connectors (part of 14290) |
| 4 |
13008 |
Headlamp assembly |
