Removal And Installation: Thermostat: Notes
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL
| Item | Specification |
|---|---|
| Motorcraft® Specialty Green Engine Coolant VC-10-A2 (US); CVC-10-A (Canada) |
WSS-M97B55-A |
NOTE:

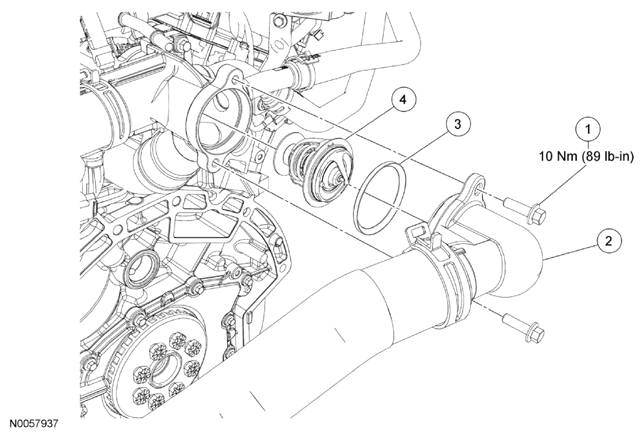

3.7L shown in illustration, 3.5L Gasoline Turbocharged Direct Injection (GTDI) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W500014 | Thermostat housing bolt (2 required) |
| 2 | 8594 | Thermostat housing |
| 3 | - | O-ring seal |
| 4 | 8575 | Thermostat |
