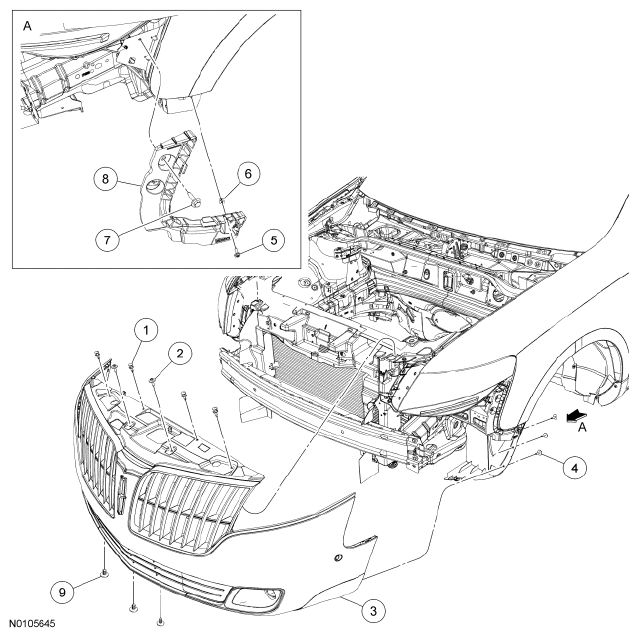

Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706350 | Front bumper cover pin-type retainer (4 required) |
| 2 | W711685 | Front bumper cover bolt (2 required) |
| 3 | 17D957 | Front bumper cover |
| 4 | W710763 | Fender splash shield screw (6 required) |
| 5 | W505022 | Front bumper cover bracket screw |
| 6 | W705894 | Front bumper cover bracket nut insert |
| 7 | W505425 | Front bumper cover bracket bolt |
| 8 | 17D959 LH/17D958 RH | Front bumper cover bracket |
| 9 | W712196 | Lower air deflector pin-type retainer (3 required) |
- For additional information, refer to the appropriate procedures.
