Servo Kit - 3.5L Engine

NOTE: Kit assembly part number is 7D027.

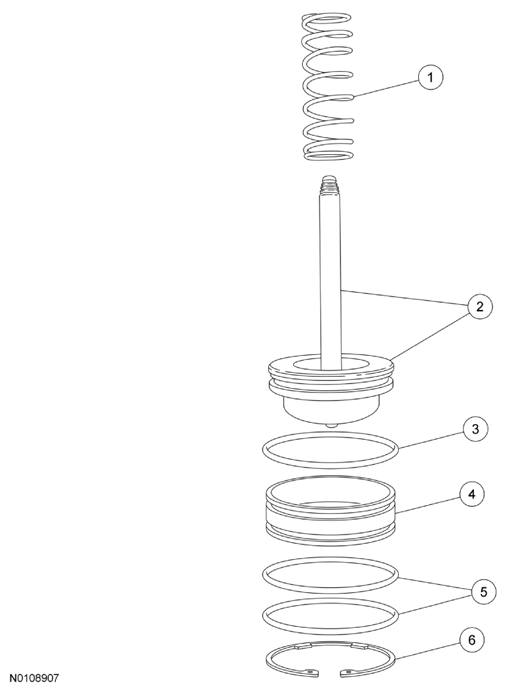

Fig 1: Exploded View Of Servo Kit - 3.5L Engine

G07785990

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	-	Servo spring
2	-	Servo piston
3	7D024	Servo piston O-ring
4	7D027	Servo cover
5	7D024	Servo cover O-rings (2 required)
6	7H074	Servo retainer
