Module Communications Network

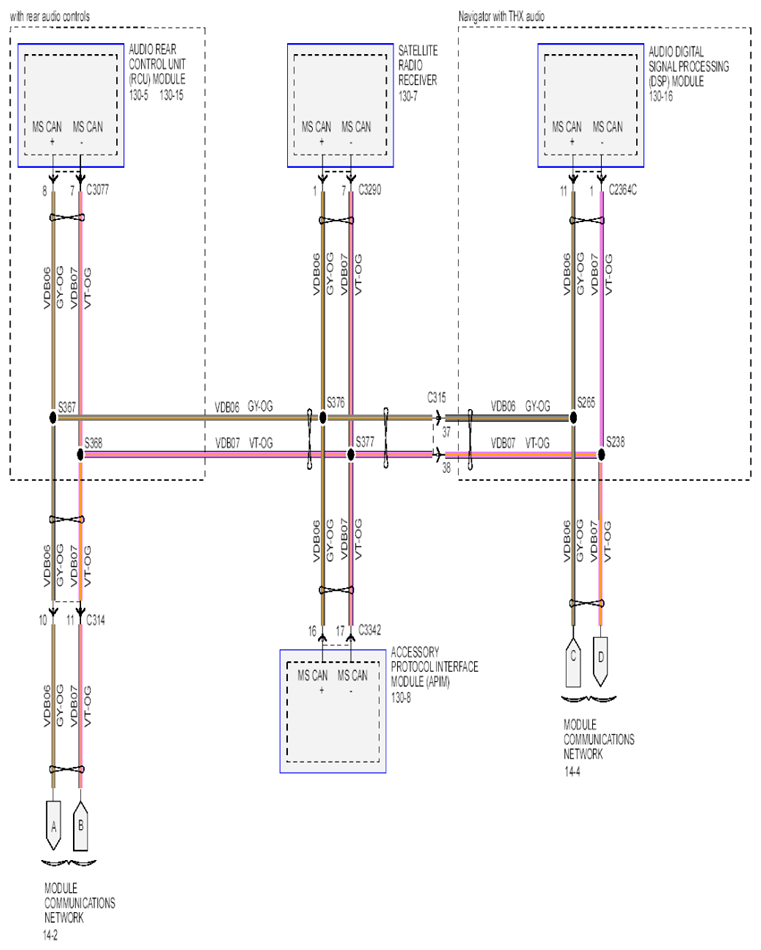

Fig 1: Module Communications Network Schematic (1 Of 5)

Courtesy of FORD MOTOR CO.

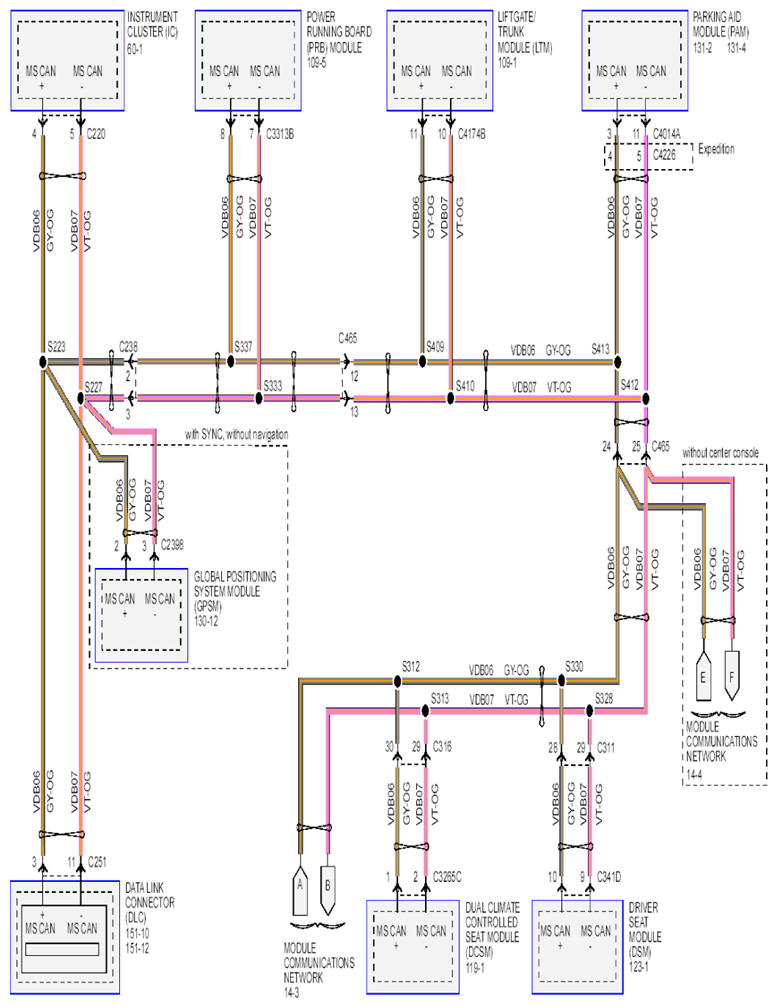

Fig 2: Module Communications Network Schematic (2 Of 5)

Courtesy of FORD MOTOR CO.

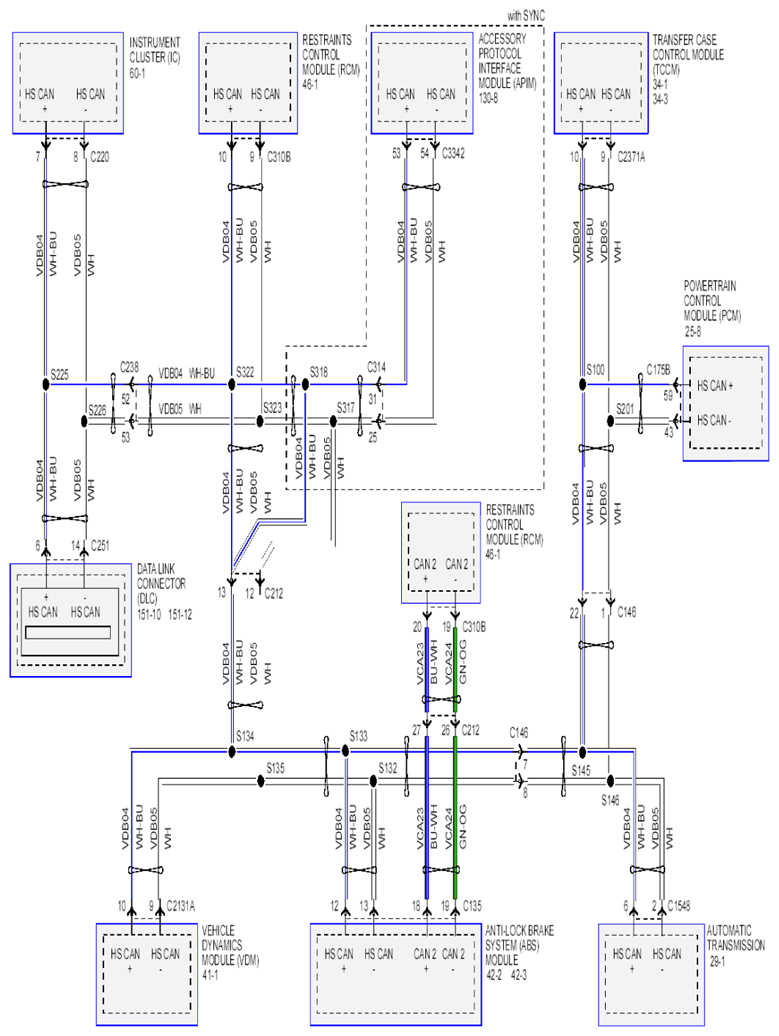

Fig 3: Module Communications Network Schematic (3 Of 5)

Courtesy of FORD MOTOR CO.

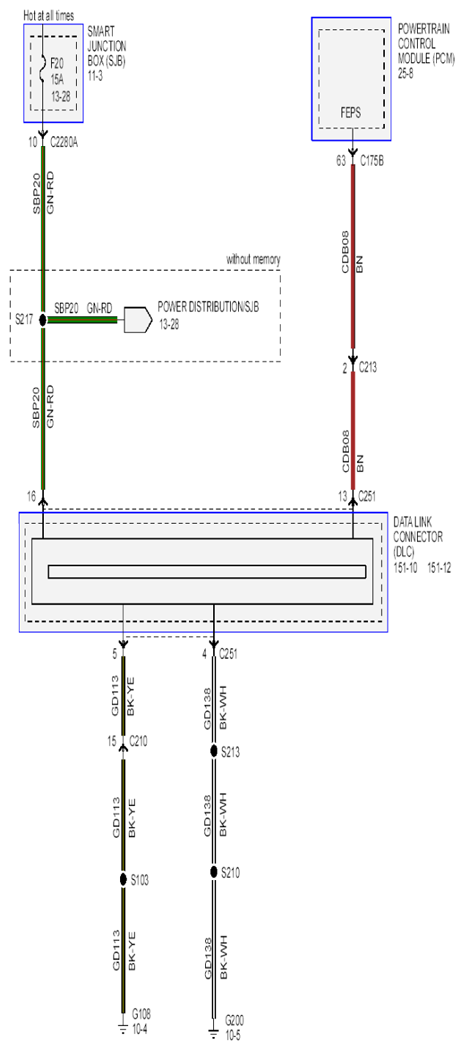

Fig 4: Module Communications Network Schematic (4 Of 5)

Courtesy of FORD MOTOR CO.

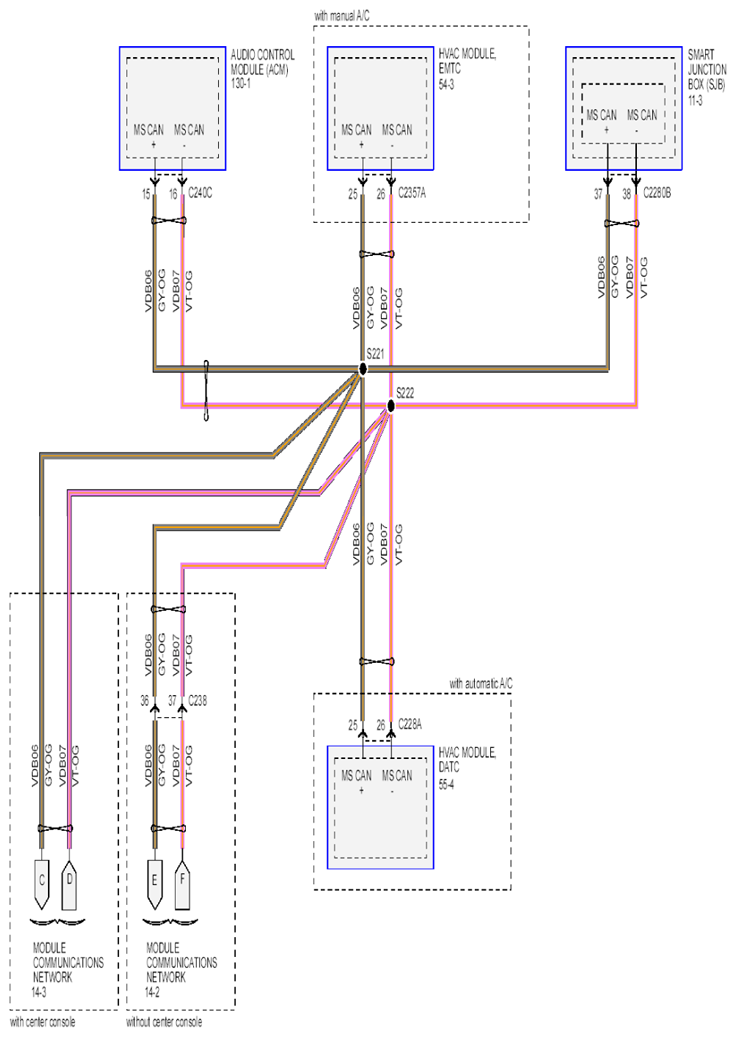

Fig 5: Module Communications Network Schematic (5 Of 5)

Courtesy of FORD MOTOR CO.
