Transfer Case Assembly Connector - C350

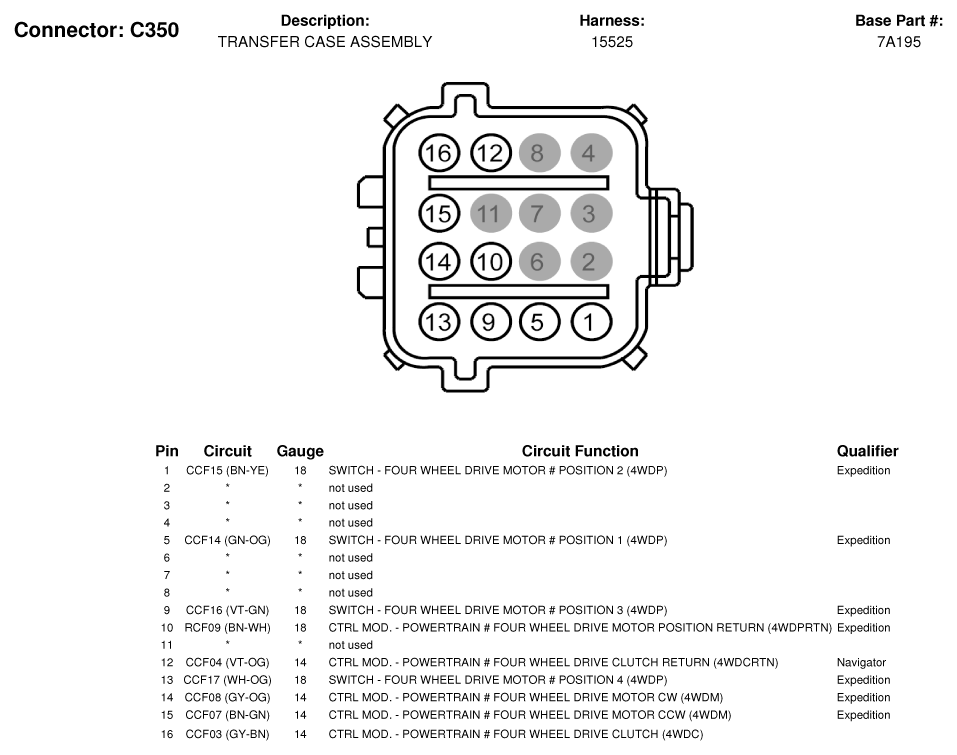

Fig 1: Transfer Case Assembly Connector End View (C350)
G07327515Courtesy of FORD MOTOR CO.
