Neutral Position
›
Notes
Neutral Position: Notes

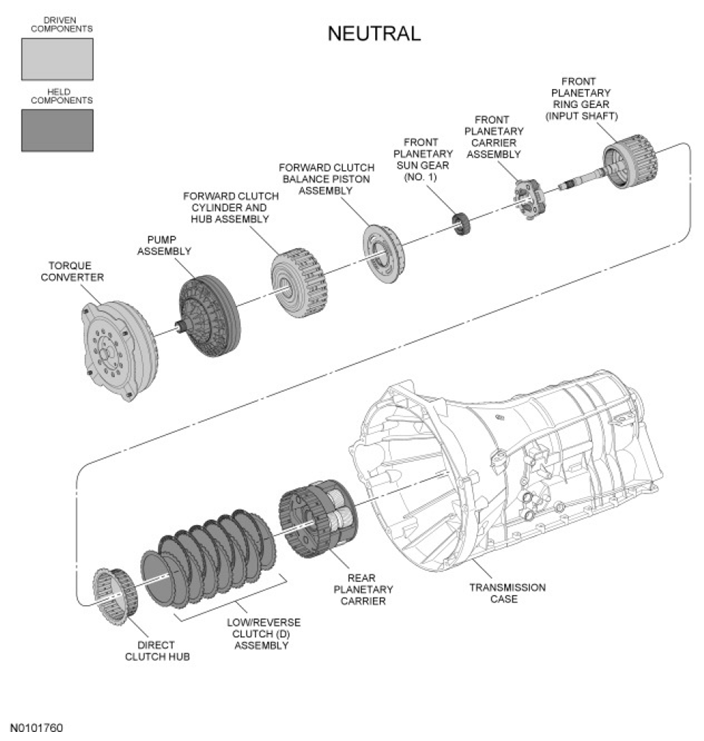

Fig 1: Exploded View Of Neutral Position Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
