Removal and Installation

NOTE: To prevent damage to the selector lever boot, do not pull on the top of the boot frame.

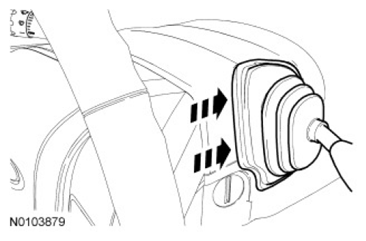

Fig 1: Removing Selector Lever Boot

Courtesy of FORD MOTOR CO.

Remove the selector lever boot from the steering column shroud by pressing in on the selector lever boot frame.
Position the selector lever boot up the selector lever.

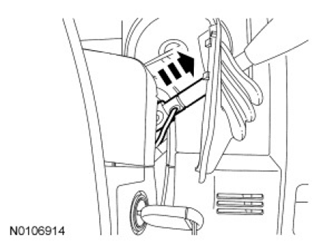

Fig 2: Positioning Selector Lever Boot Up Selector Lever
Courtesy of FORD MOTOR CO.

NOTE: Steering wheel removed for clarity.

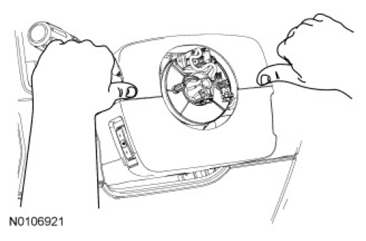

Fig 3: Removing Upper Steering Column Shroud From Lower Shroud

Courtesy of FORD MOTOR CO.

Unsnap and remove the upper steering column shroud from the lower shroud.
Remove the lower steering column shroud.
1. Remove the screws and the lower steering column shroud.

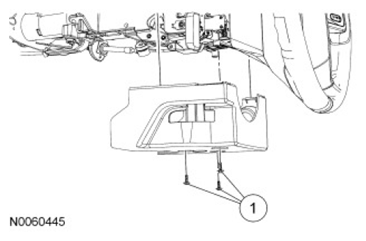

  Fig 4: Locating Steering Column Lower Shroud And Screws
  Courtesy of FORD MOTOR CO.
Disconnect the electrical connector and remove the screw that retains the harness clip to the steering column.

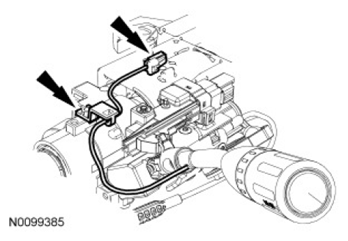

Fig 5: Locating Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the selector lever bolt.
- To install, tighten to 18 Nm (159 lb-in).

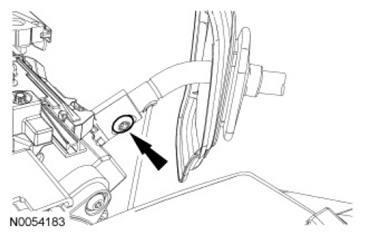

  Fig 6: Locating Selector Lever Bolt
  Courtesy of FORD MOTOR CO.
Remove the selector lever.

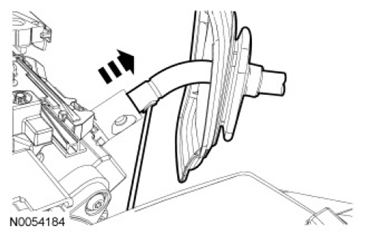

Fig 7: Removing Selector Lever
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
