Audio Rear Control Unit Module Connector - C3077

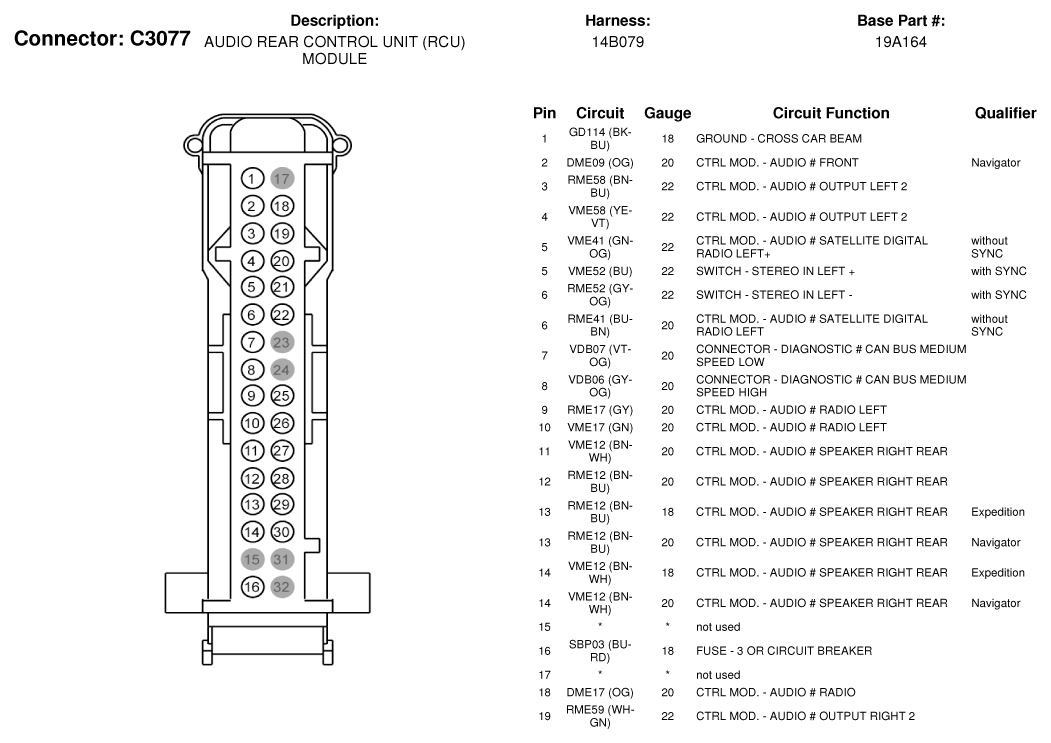

Fig 1: Audio Rear Control Unit Module Connector End View (C3077) (1 Of 2)
G07327724Courtesy of FORD MOTOR CO.

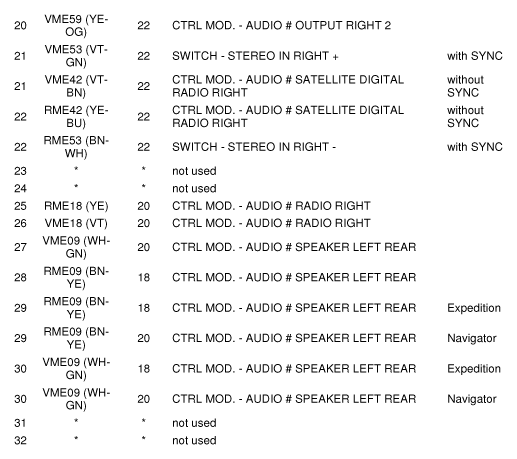

Fig 2: Audio Rear Control Unit Module Connector End View (C3077) (2 Of 2)
G07327725Courtesy of FORD MOTOR CO.
