Global Positioning System Module Connector - C2398
Global Positioning System Module Connector - C2398

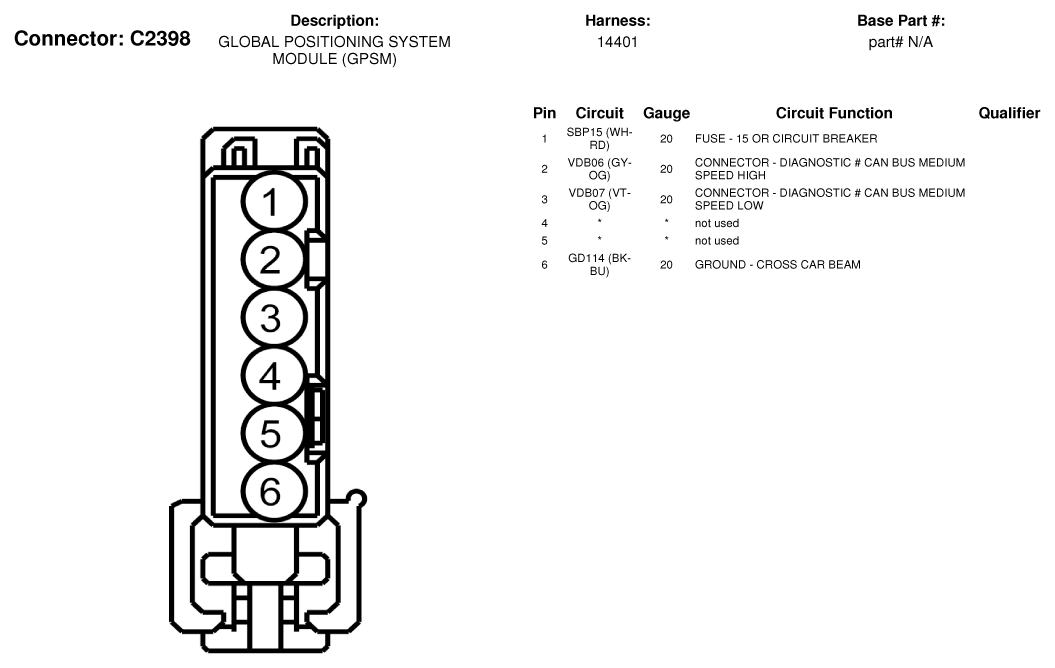

Fig 1: Global Positioning System Module Connector End View (C2398)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
