Satellite Digital Audio Receiver System Module Connector - C3290
Satellite Digital Audio Receiver System Module Connector - C3290

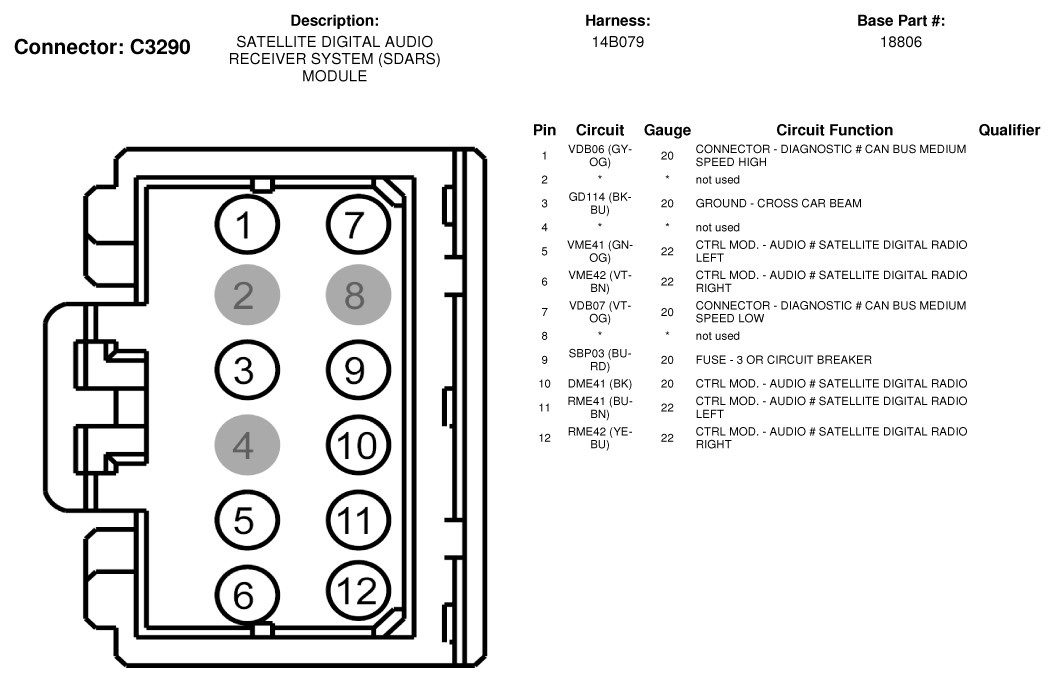

Fig 1: Satellite Digital Audio Receiver System Module Connector End View (C3290)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
