Throttle Position Sensor Connector - C189
Throttle Position Sensor Connector - C189

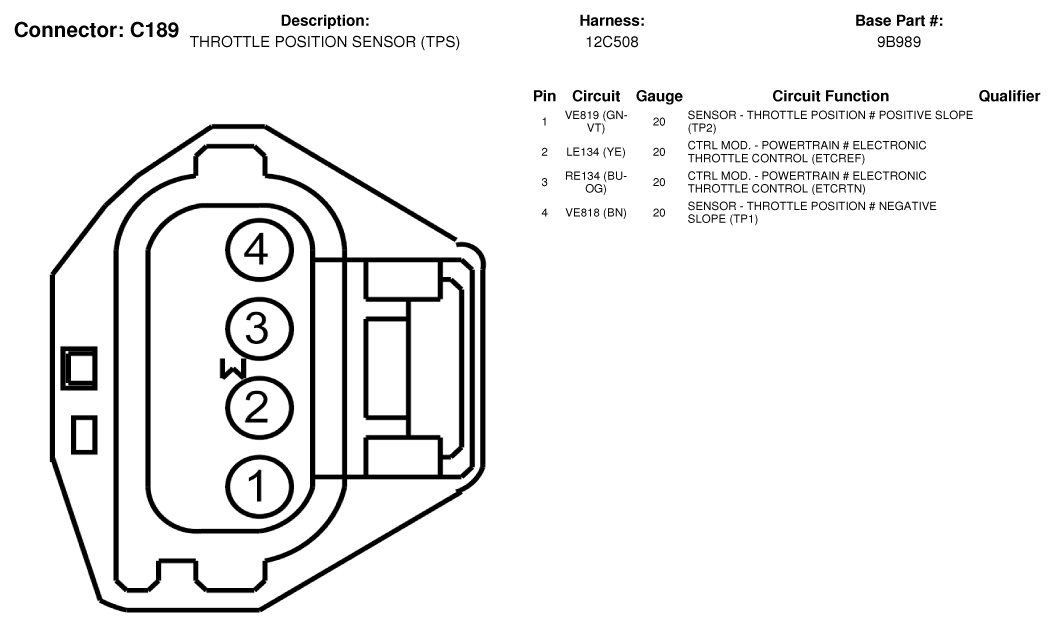

Fig 1: Throttle Position Sensor Connector End View (C189)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
