Air Suspension Compressor Drier: Notes

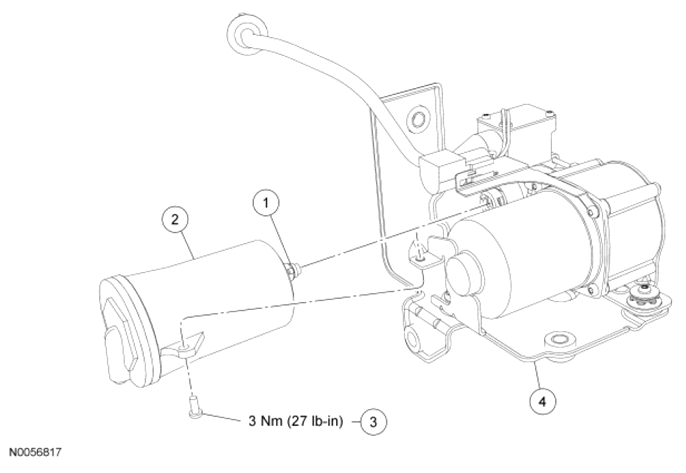

Fig 1: Locating Air Suspension Compressor Drier Components With Torque Specification

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	O-ring (part of 5346)
2	5346	Compressor drier
3	-	Compressor drier screw (part of 5346)
4	3B484	Compressor and bracket assembly
