Overdrive Clutch Assembly: Disassembly

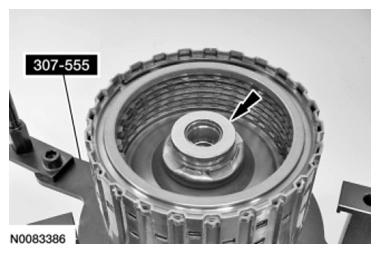

Position the Overdrive (O/D) clutch assembly in the Clutch End Play Gauge 307-555 and remove the T3 thrust bearing.

Fig 1: Locating T3 Thrust Bearing
Courtesy of FORD MOTOR CO.

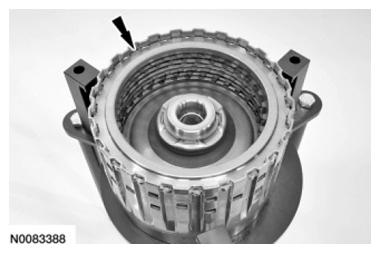

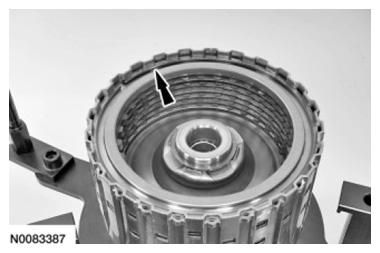

Remove the O/D clutch pack snap ring.

Fig 2: Locating O/D Clutch Pack Snap Ring
Courtesy of FORD MOTOR CO.

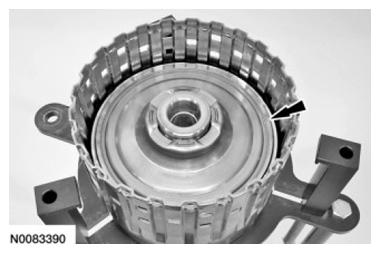

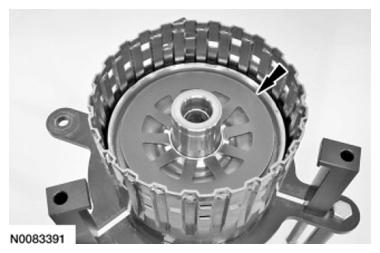

Remove the O/D clutch pack.

Fig 3: Locating O/D Clutch Pack
Courtesy of FORD MOTOR CO.

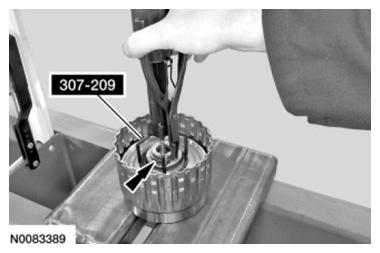

Using the Spring Washer Compressor 307-209 and a press, remove and discard the O/D clutch balance piston retaining ring.

Fig 4: Removing O/D Clutch Balance Piston Retaining Ring
Courtesy of FORD MOTOR CO.

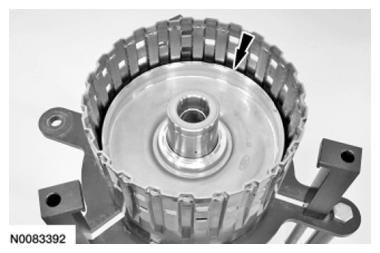

Remove the O/D clutch balance piston.

Fig 5: Locating O/D Clutch Balance Piston
Courtesy of FORD MOTOR CO.

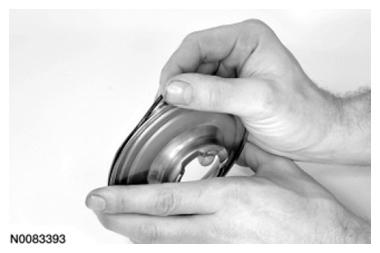

Remove the O/D clutch return spring.

Fig 6: Locating O/D Clutch Return Spring
Courtesy of FORD MOTOR CO.
Remove the O/D clutch apply piston.

Fig 7: Locating O/D Clutch Apply Piston
Courtesy of FORD MOTOR CO.
Remove and discard the outer O-ring seal on the O/D clutch balance piston.

Fig 8: Removing Outer O-Ring Seal On O/D Clutch Balance Piston
Courtesy of FORD MOTOR CO.

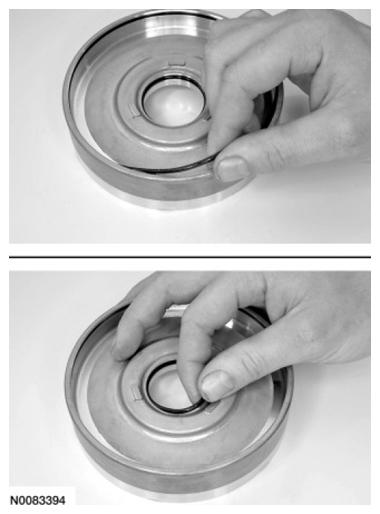

Remove and discard both the inner (one large and one small) O-ring seals on the O/D clutch apply piston.

Fig 9: Removing Inner O-Ring Seals On O/D Clutch Apply Piston
Courtesy of FORD MOTOR CO.

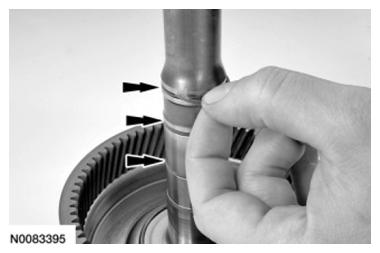

Remove and discard the 3 scarf cut seals.

Fig 10: Removing Scarf Cut Seals
Courtesy of FORD MOTOR CO.
