Front Display Interface Module (FDIM) - Without Navigation: Notes

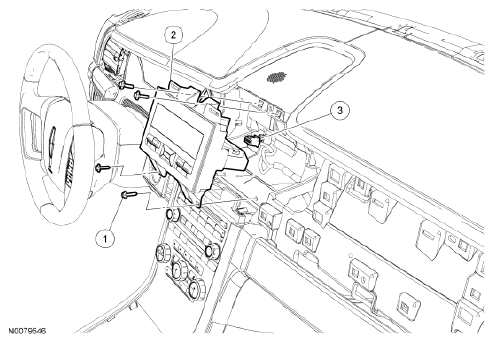

Fig 1: Identifying Front Display Interface Module (FDIM), Electrical Connectors And Screws - Without Navigation

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707628-S	Front Display Interface Module (FDIM) screws (4 required)
2	10D885	FDIM
3	-	FDIM electrical connector (part of 14401)
