Fuel Level Sensor Assembly Mounted Sender: Notes

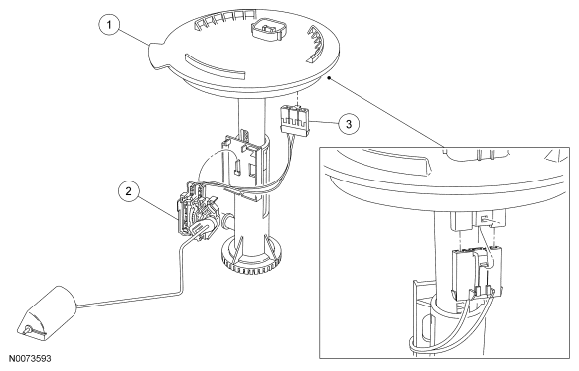

Fig 1: Identifying Fuel Level Sensor Assembly Mounted Sender Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9275A	Fuel level sensor assembly
2	9A299	Fuel level sender
3	-	Fuel level sender electrical connector (part of 9A299)
