Exploded View: Notes

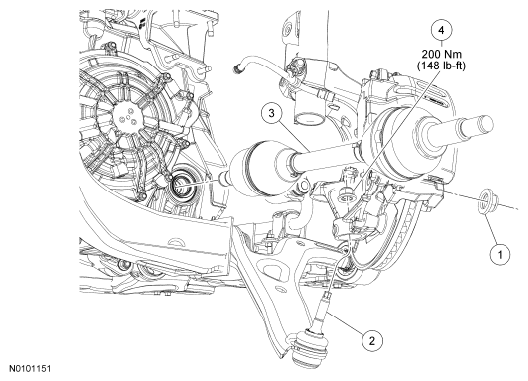

Fig 1: Exploded View Of Halfshaft - LH
G06261262Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W712435 Wheel hub nut
2 3051LH Lower ball joint
3 3B437 Halfshaft assembly
4 W710015 Lower ball joint nut
