Knock Sensor (KS) - 3.5L GTDI: Notes

NOTE: LH cylinder head removed from art for clarity.

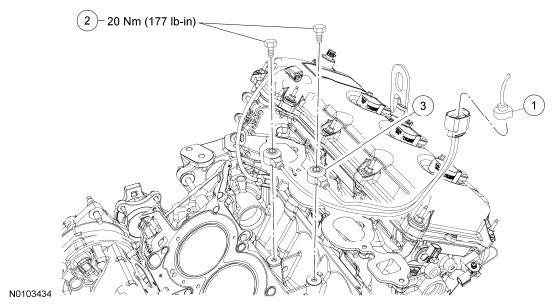

Fig 1: Lnock Sensor (KS) Replacement Components - 3.5L GTDI With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Knock Sensor (KS) electrical connector
2	W704749	KS bolts
3	12A699	KS
