Multifunction Switch, Wiper/Washer Portion: Schematic

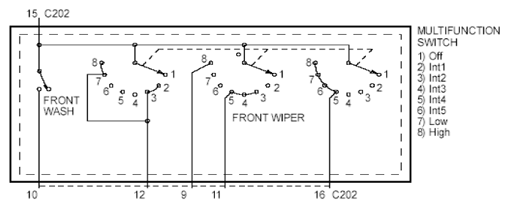

Fig 1: Multifunction Switch, Wiper/Washer Portion Schematic Diagram
G07921146Courtesy of FORD MOTOR CO.
