OEM Ground Distribution: Grounds: G201

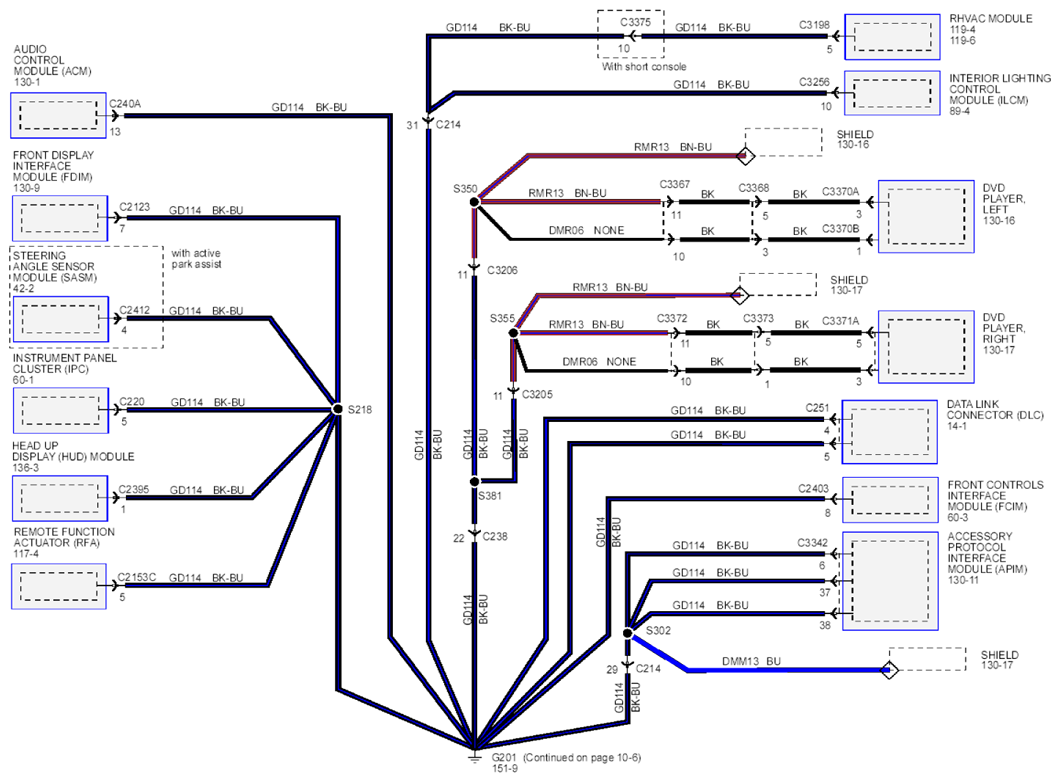

Fig 1: Grounds Circuit Diagram - G201

G07920947

Courtesy of FORD MOTOR CO.

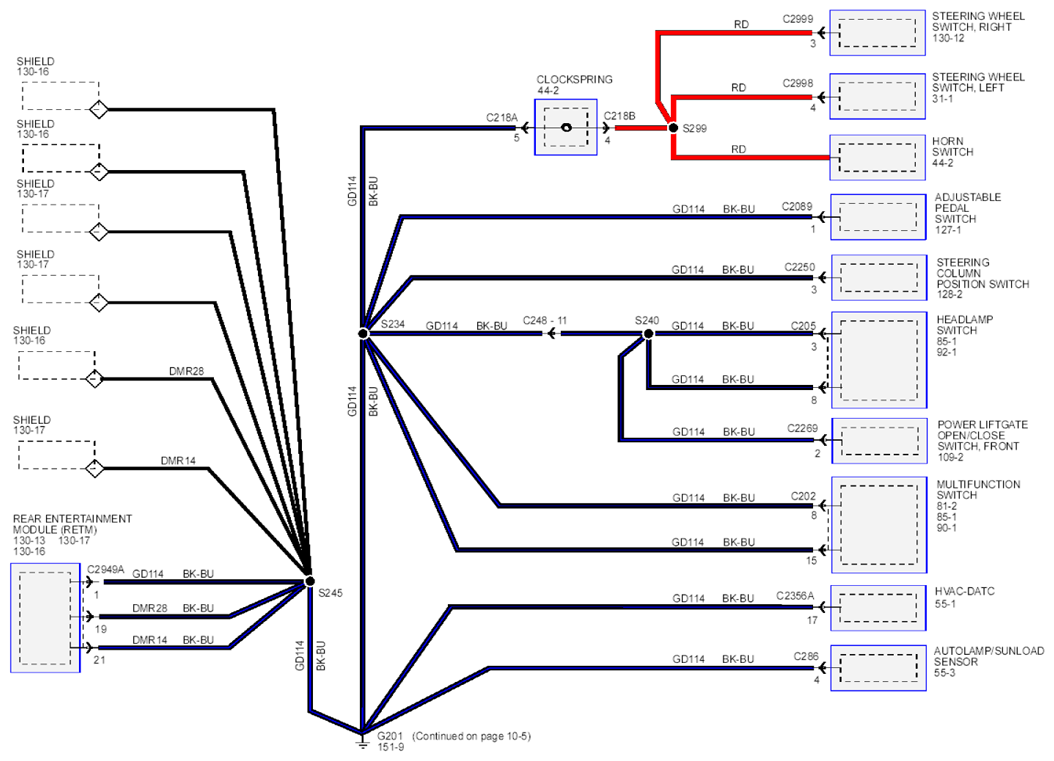

Fig 2: Grounds Circuit Diagram - G201

G07920948

Courtesy of FORD MOTOR CO.
