Component Location Views

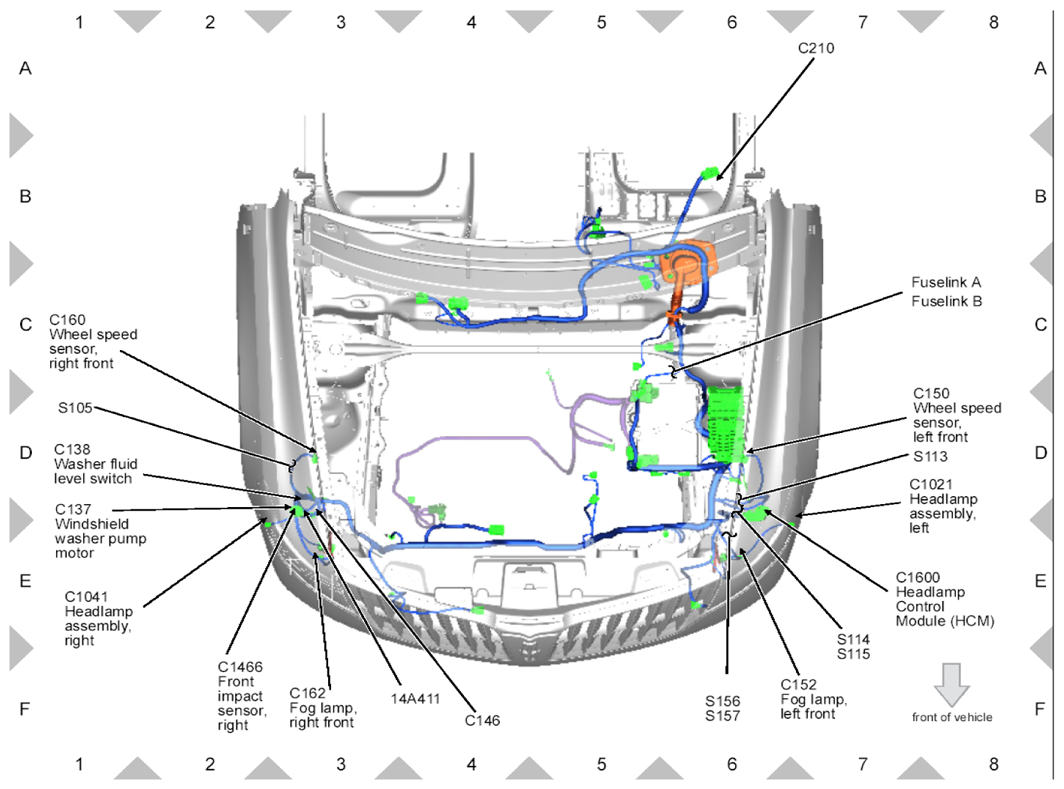

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 3)

G07922060

Courtesy of FORD MOTOR CO.

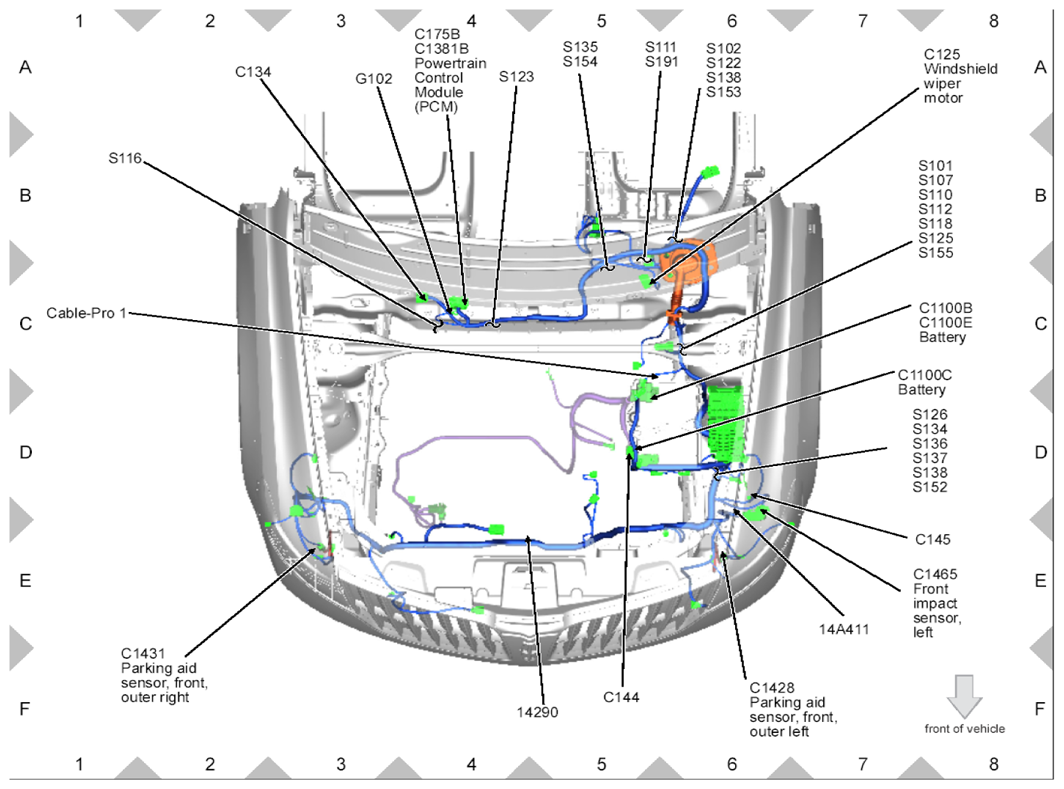

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 3)

G07922061

Courtesy of FORD MOTOR CO.

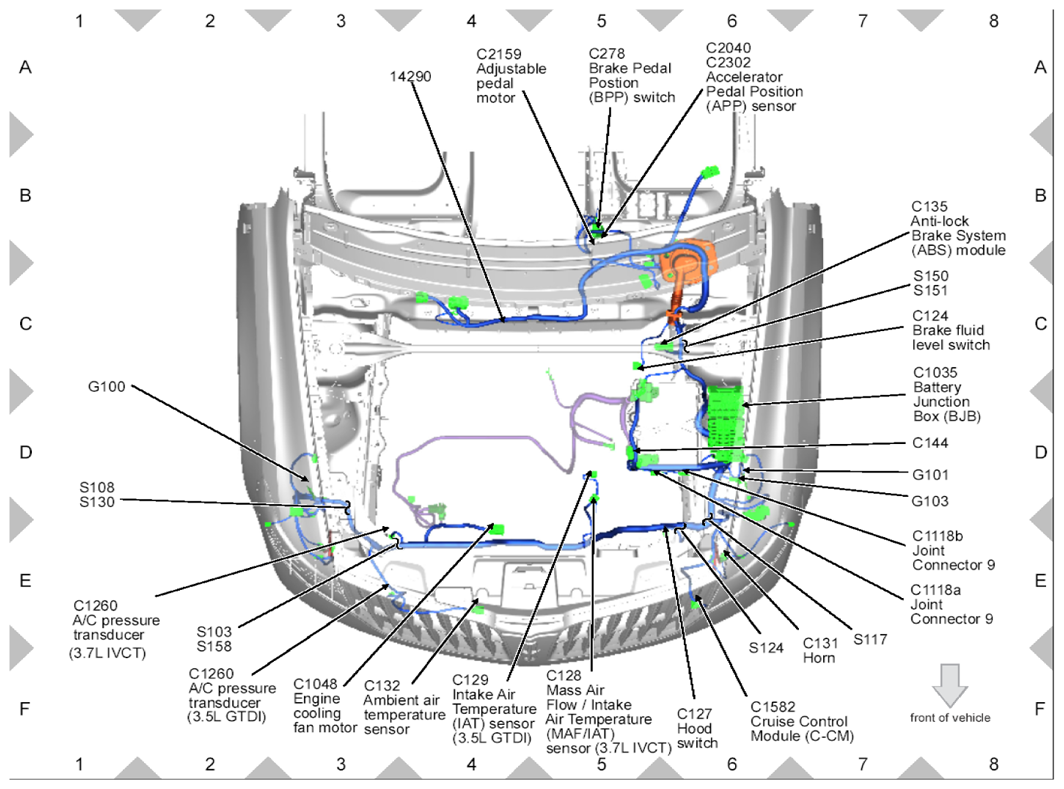

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 3)

G07922062

Courtesy of FORD MOTOR CO.

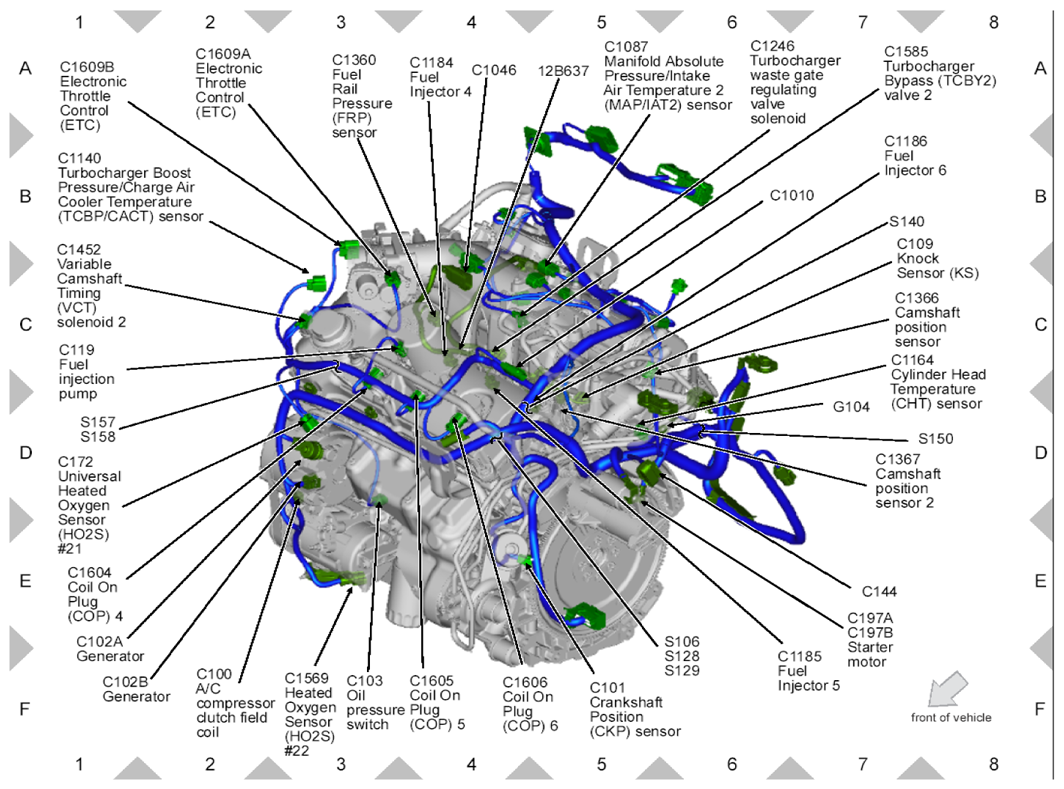

Fig 4: Engine Harness Connectors Location (1 Of 5)

G07922063

Courtesy of FORD MOTOR CO.

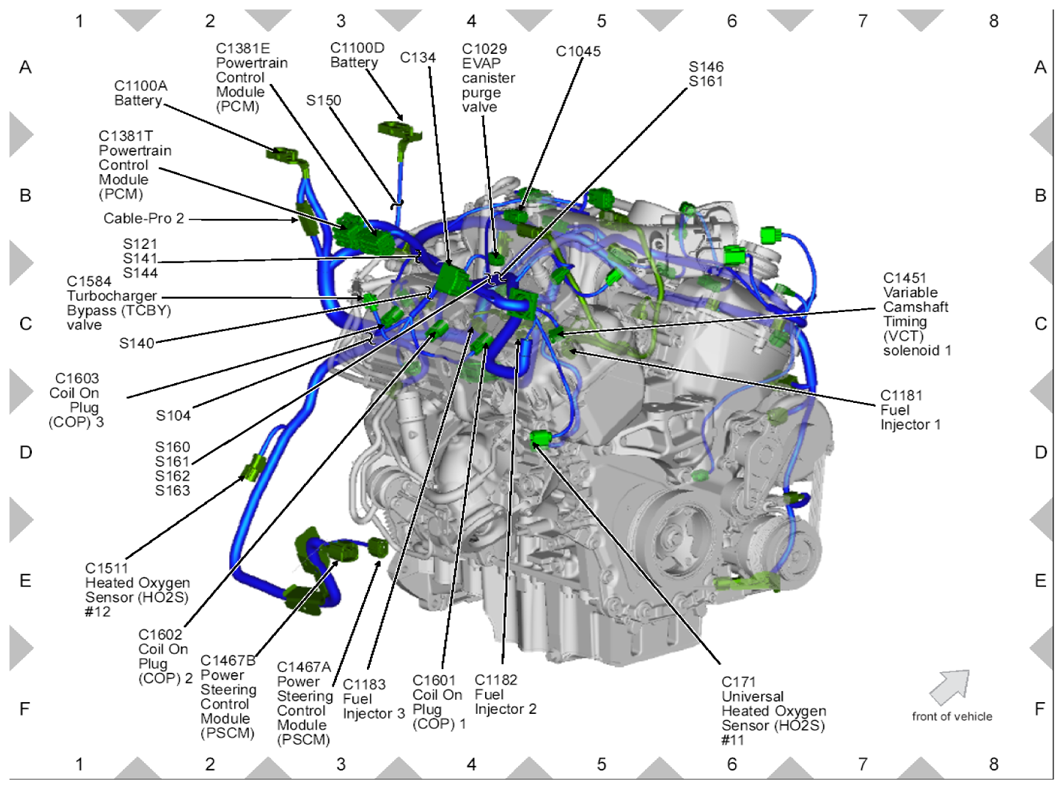

Fig 5: Engine Harness Connectors Location (2 Of 5)

G07922064

Courtesy of FORD MOTOR CO.

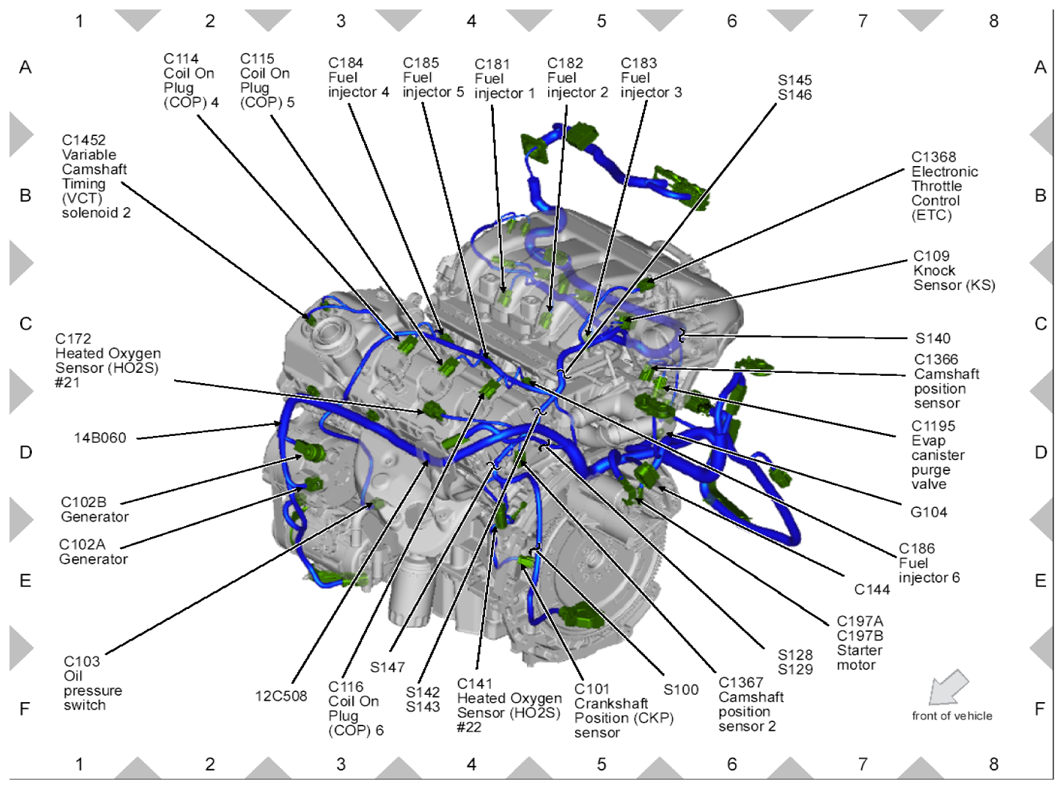

Fig 6: Engine Harness Connectors Location (3 Of 5)

G07922065

Courtesy of FORD MOTOR CO.

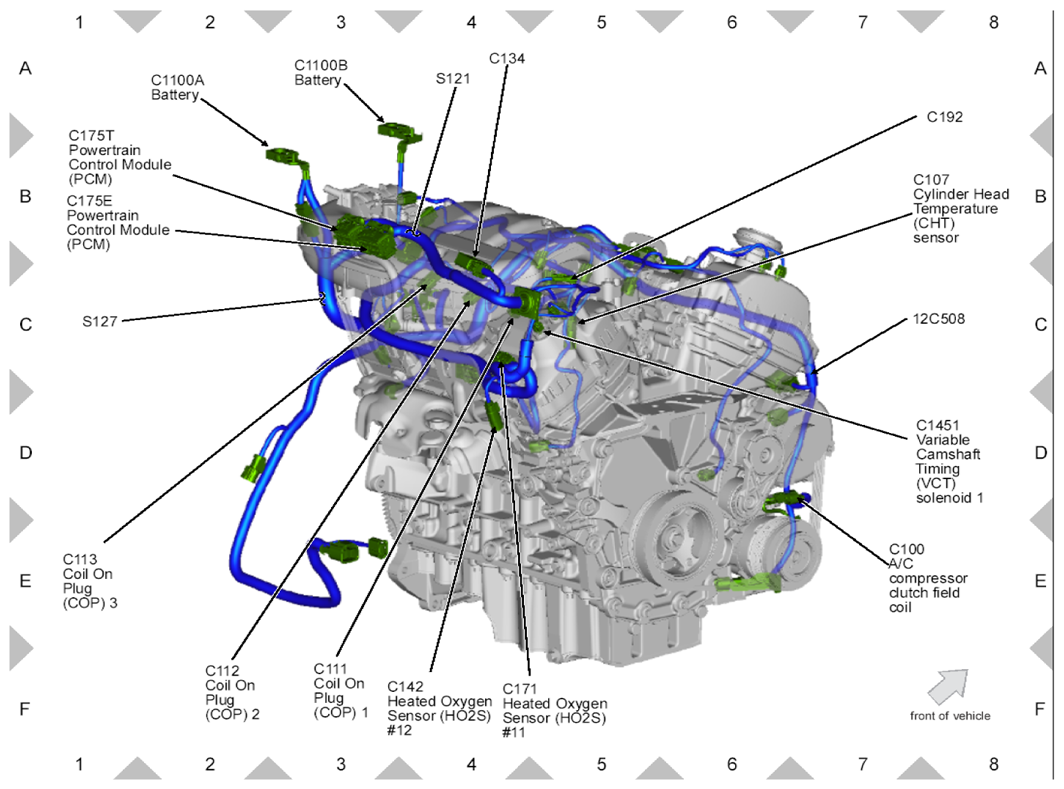

Fig 7: Engine Harness Connectors Location (4 Of 5)

G07922066

Courtesy of FORD MOTOR CO.

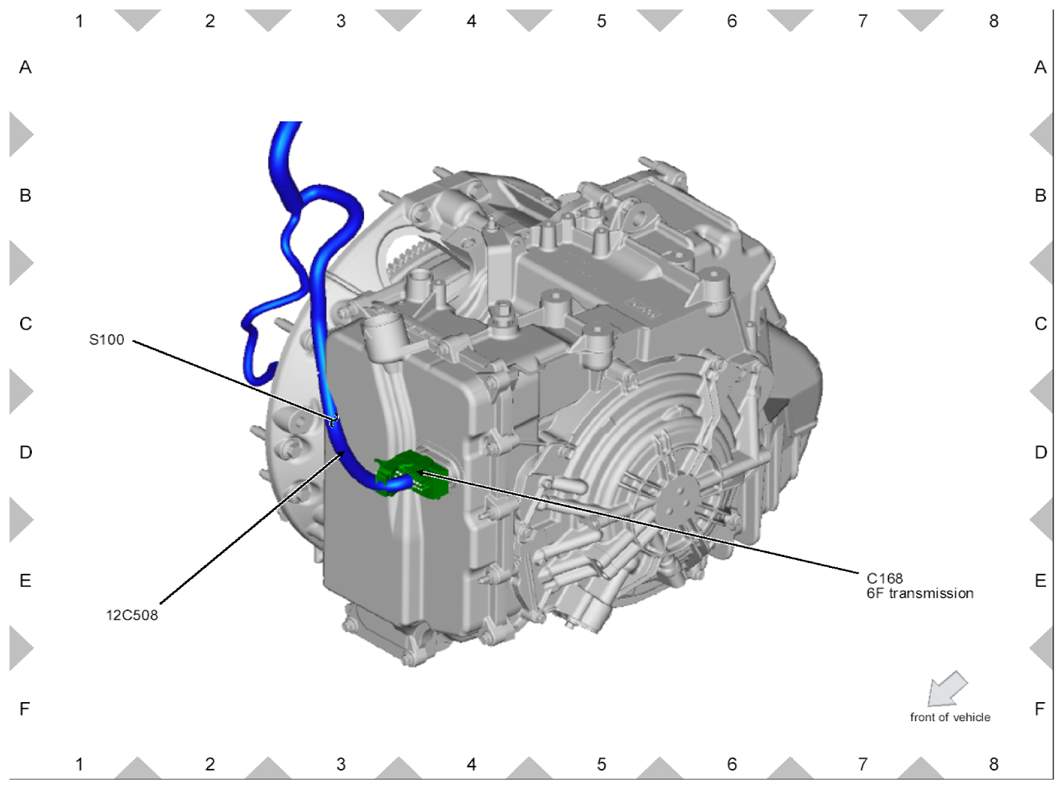

Fig 8: Engine Harness Connectors Location (5 Of 5)

G07922067

Courtesy of FORD MOTOR CO.

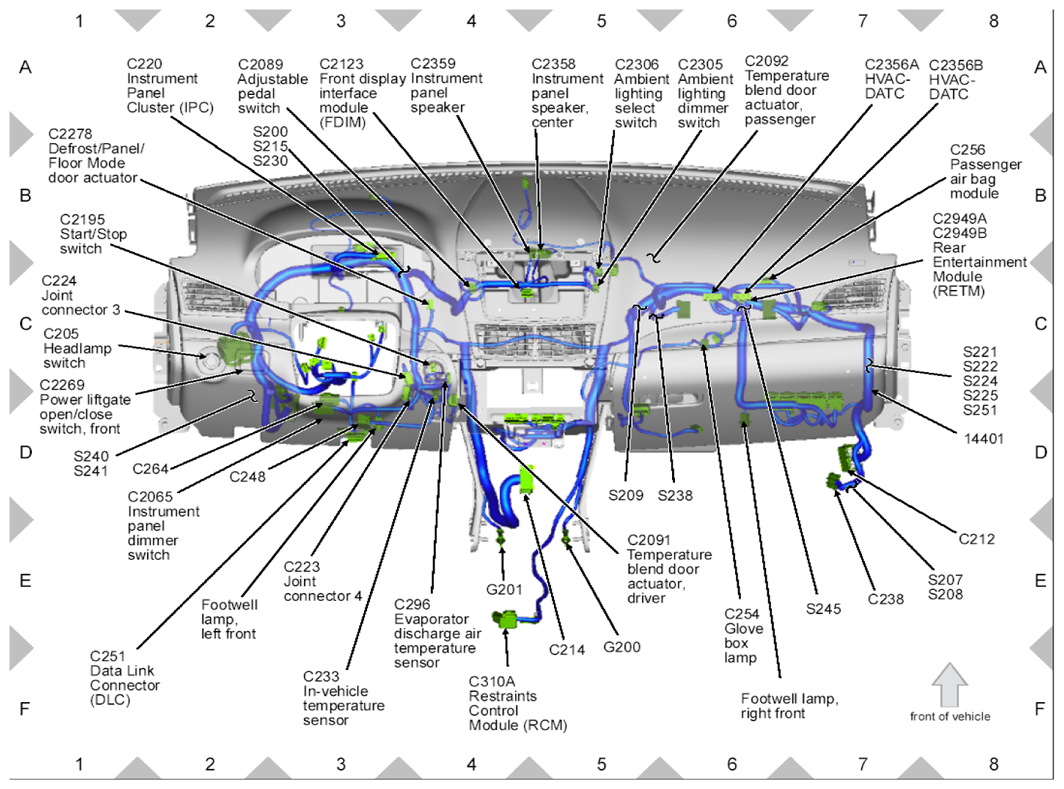

Fig 9: Dash Panel Harness Connectors Location (1 Of 2)

G07922068

Courtesy of FORD MOTOR CO.

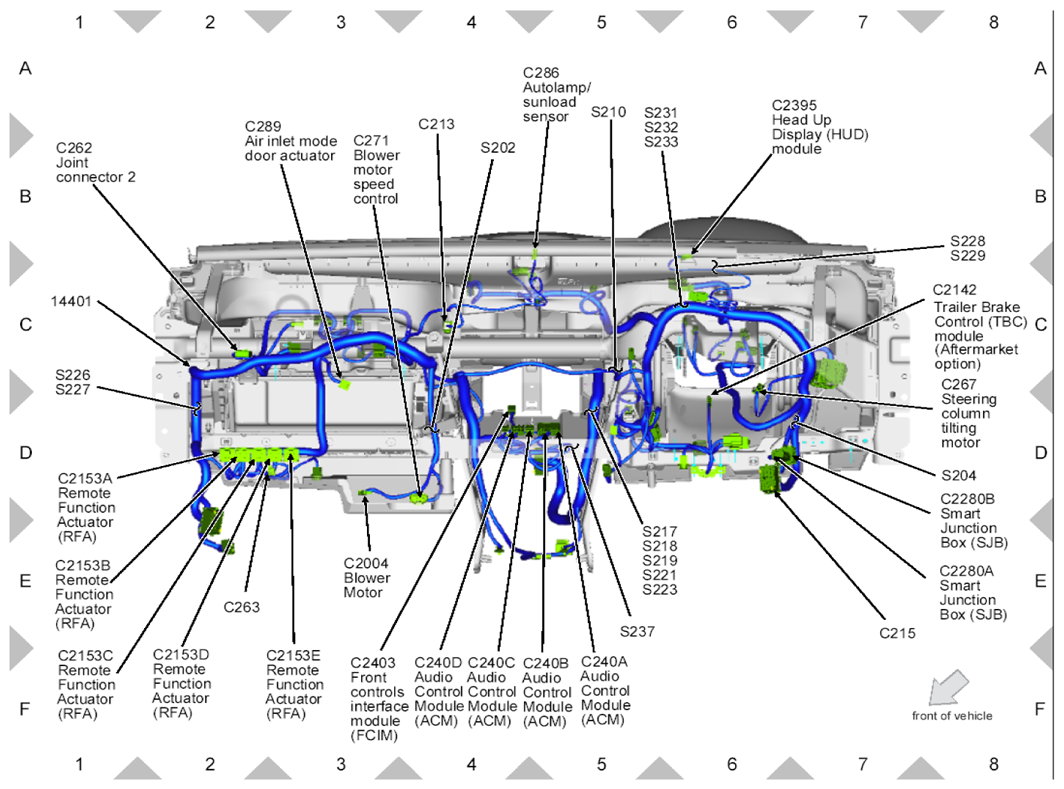

Fig 10: Dash Panel Harness Connectors Location (2 Of 2)

G07922069

Courtesy of FORD MOTOR CO.

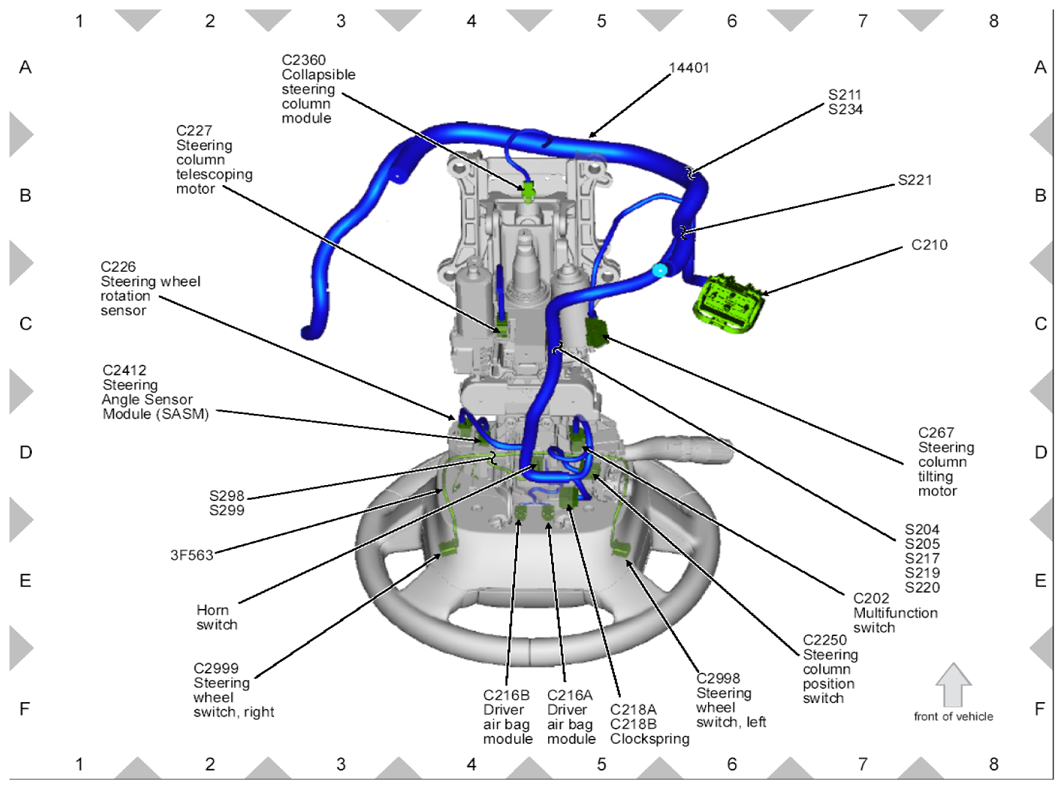

Fig 11: Steering Column Harness Connectors Location

G07922070

Courtesy of FORD MOTOR CO.

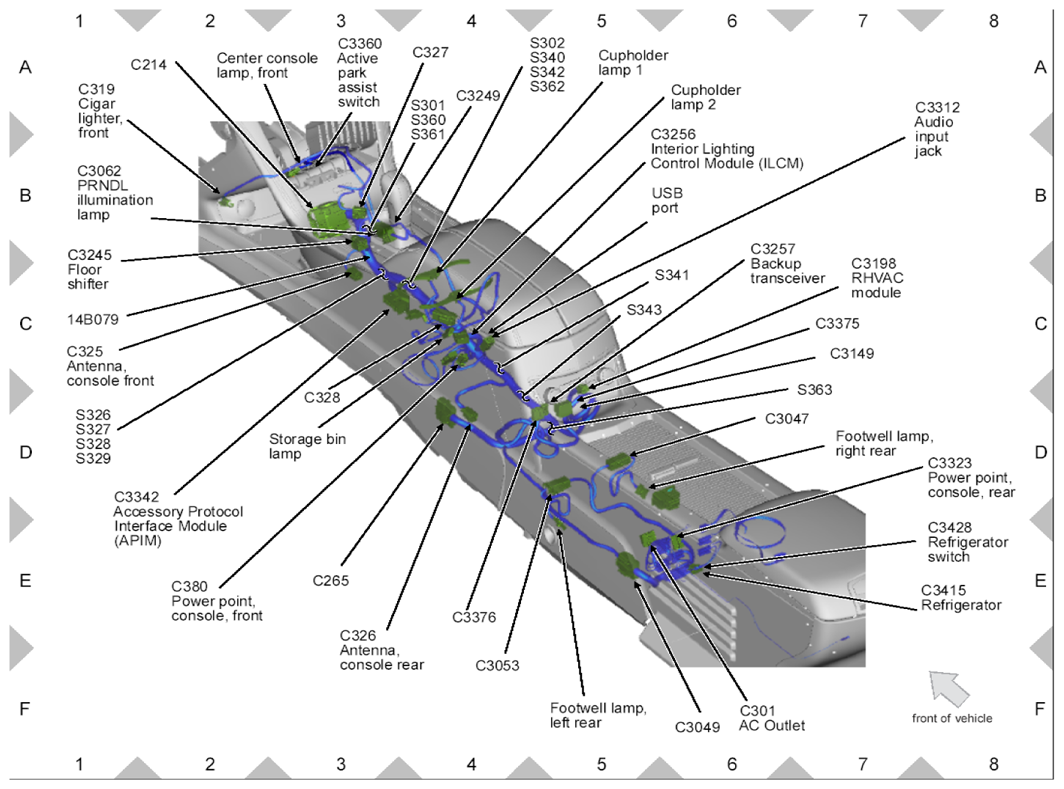

Fig 12: Center Console Harness Connectors Location

G07922071

Courtesy of FORD MOTOR CO.

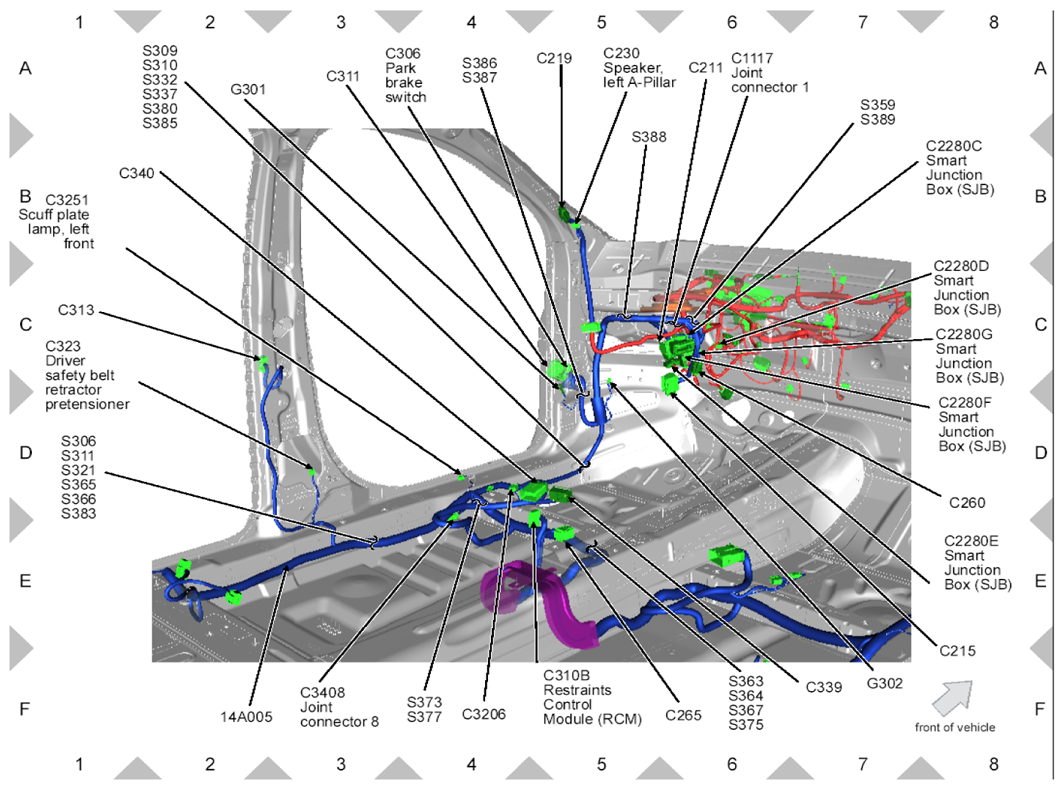

Fig 13: Door Harness Connectors Location (1 Of 2)

G07922072

Courtesy of FORD MOTOR CO.

Fig 14: Door Harness Connectors Location (2 Of 2)

G07922073

Courtesy of FORD MOTOR CO.

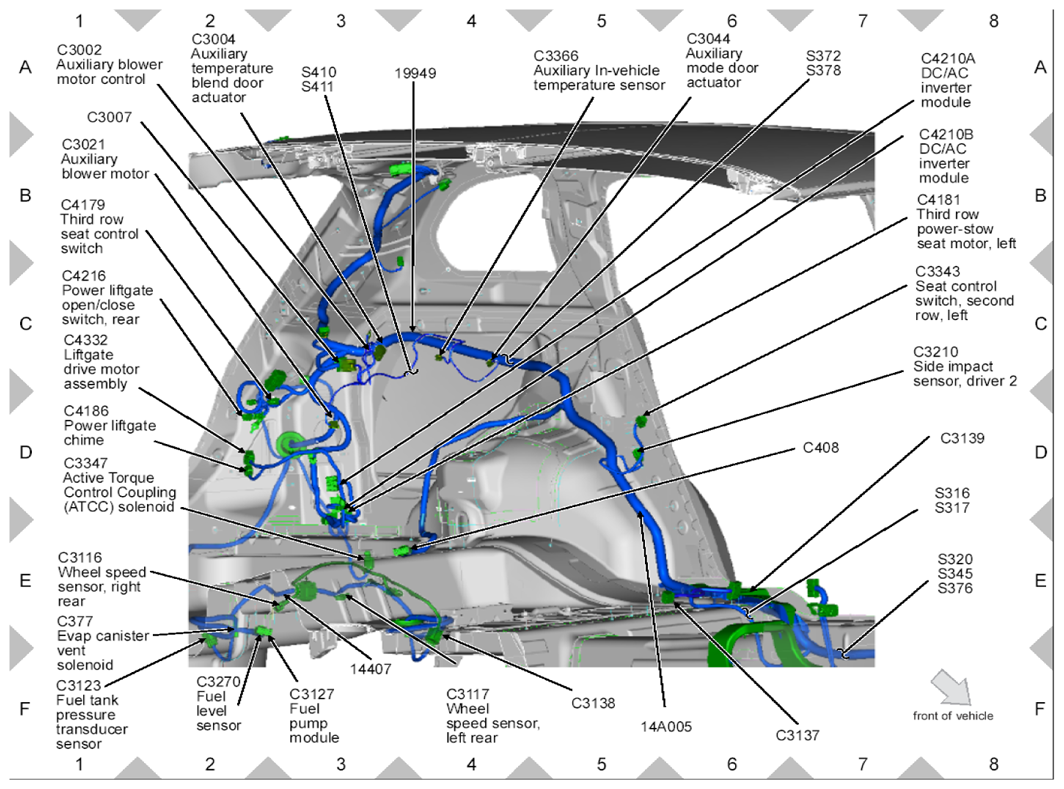

Fig 15: Luggage Compartment Harness Connectors Location

G07922074

Courtesy of FORD MOTOR CO.

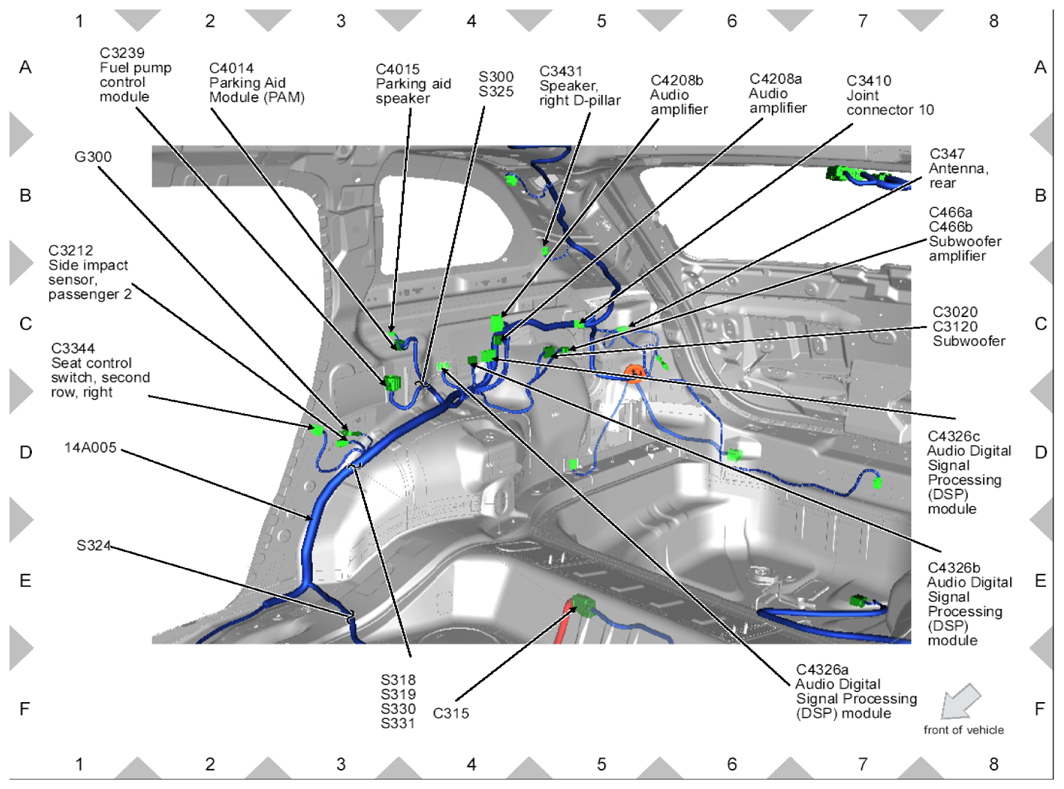

Fig 16: Vehicle Interior Harness Connectors Location

G07922075

Courtesy of FORD MOTOR CO.

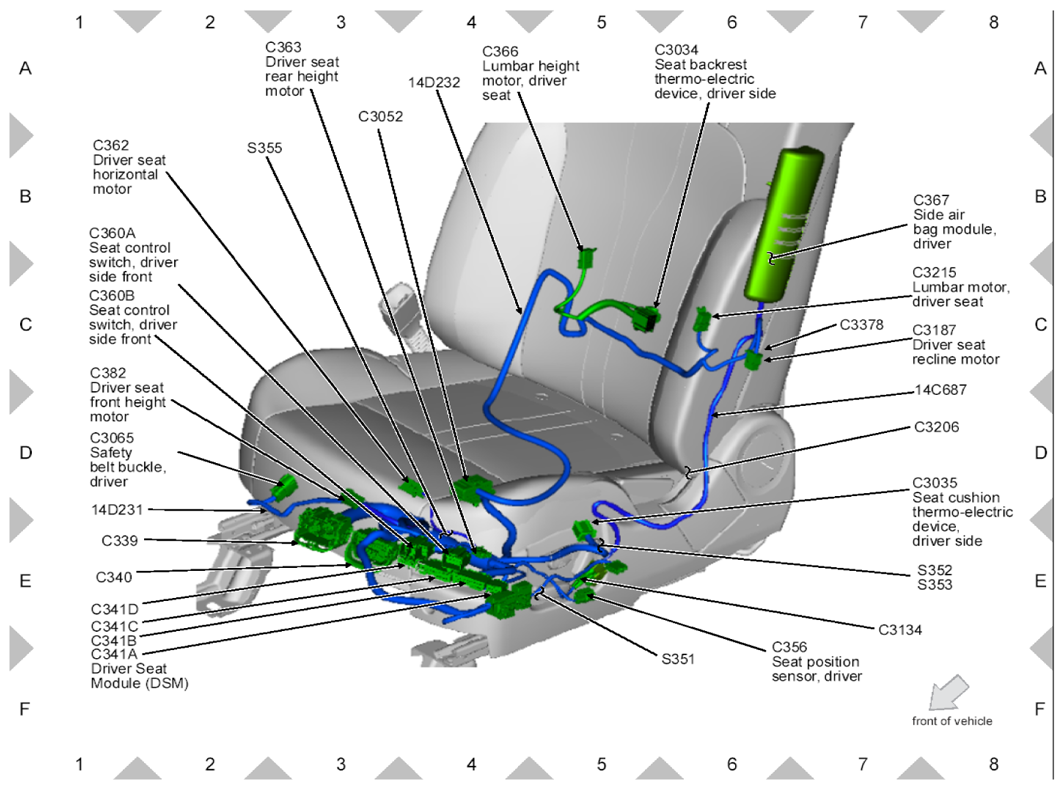

Fig 17: Seat Harness Connectors Location (1 Of 4)

G07922076

Courtesy of FORD MOTOR CO.

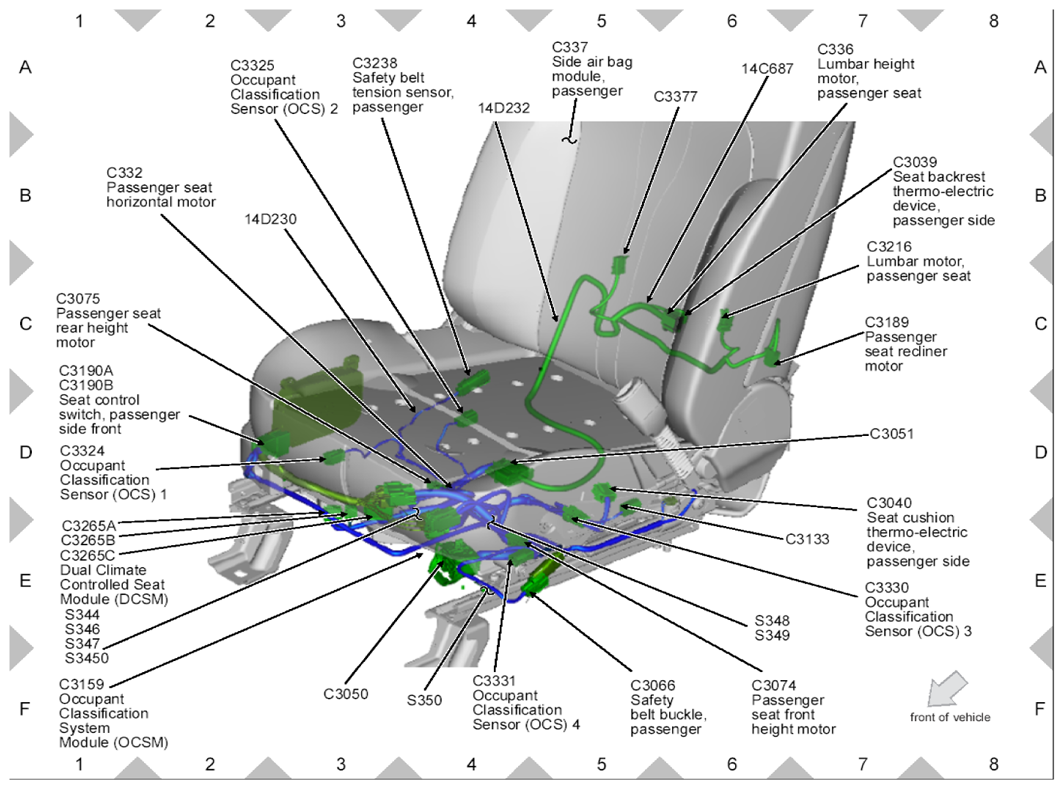

Fig 18: Seat Harness Connectors Location (2 Of 4)

G07922077

Courtesy of FORD MOTOR CO.

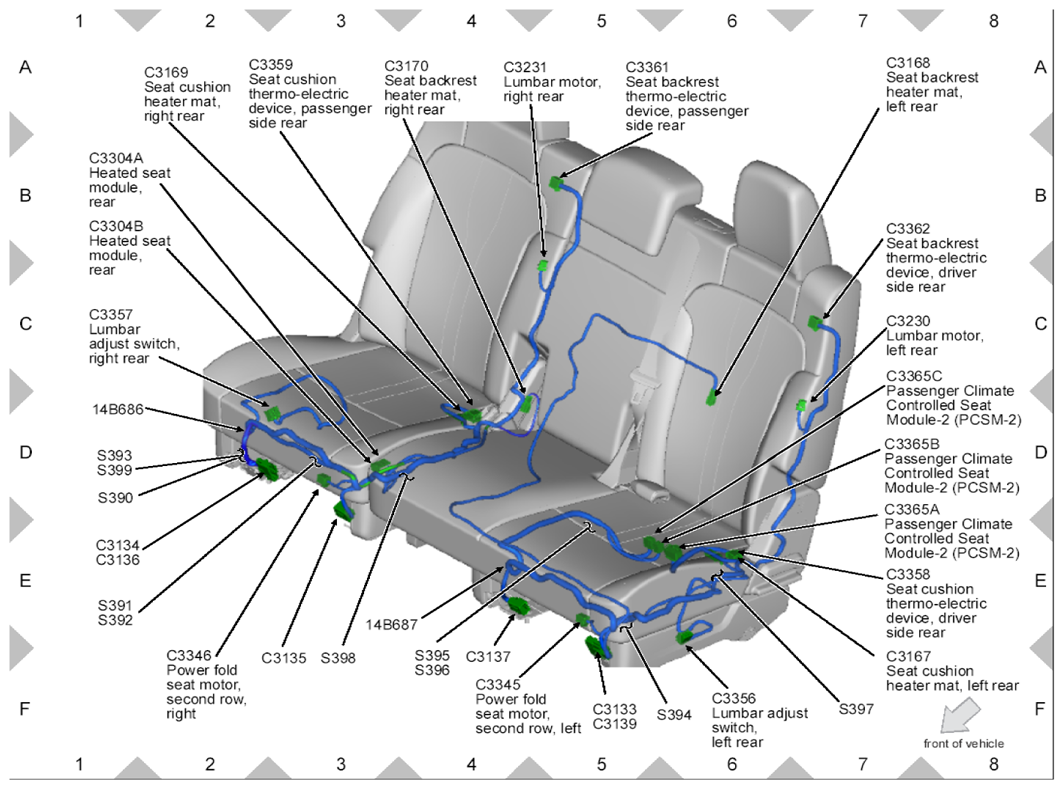

Fig 19: Seat Harness Connectors Location (3 Of 4)

G07922078

Courtesy of FORD MOTOR CO.

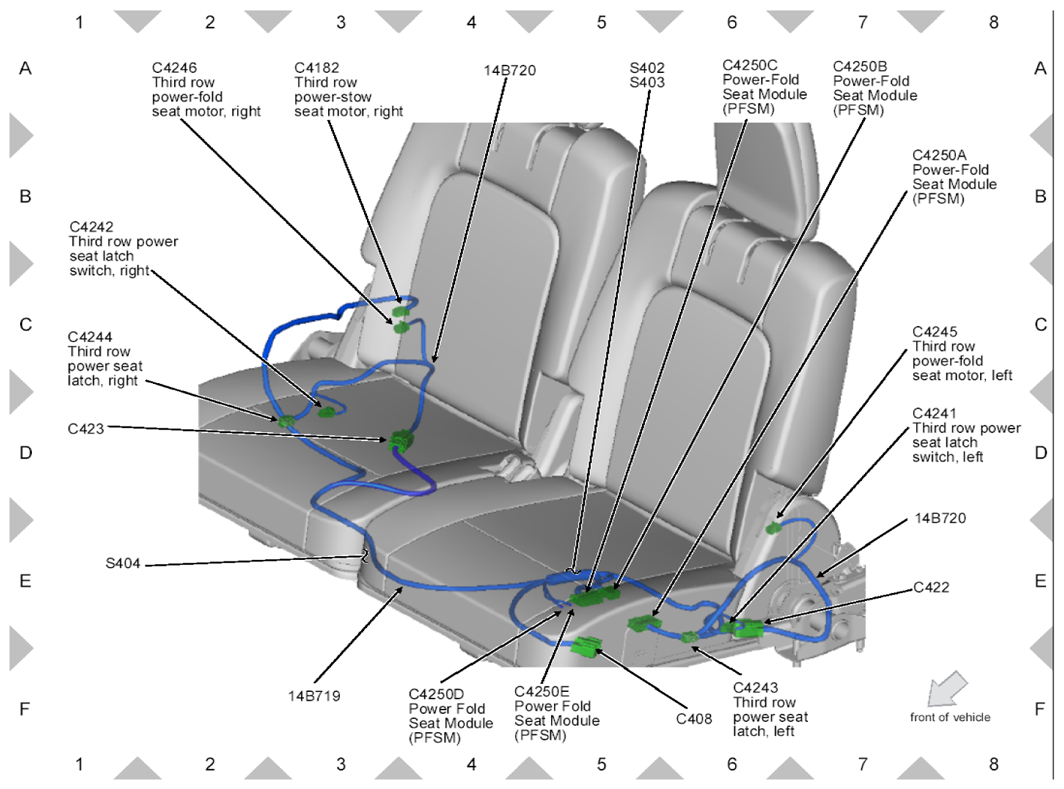

Fig 20: Seat Harness Connectors Location (4 Of 4)

G07922079

Courtesy of FORD MOTOR CO.

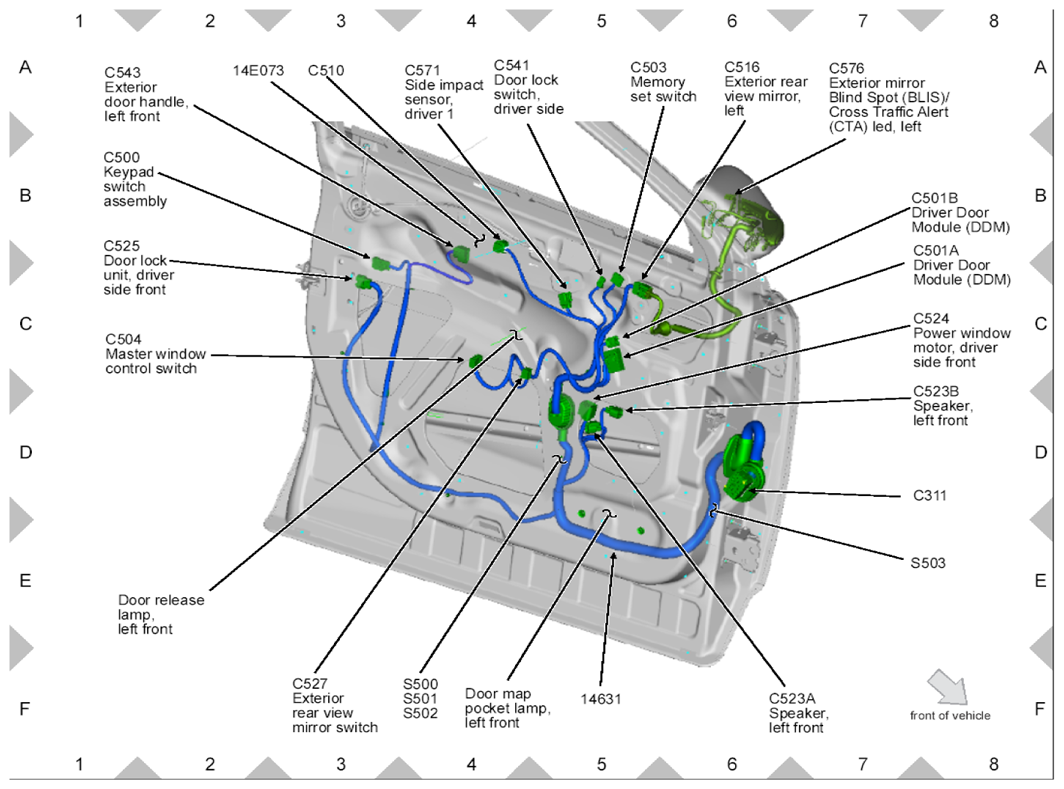

Fig 21: Door Harness Connectors Location (1 Of 4)

G07922080

Courtesy of FORD MOTOR CO.

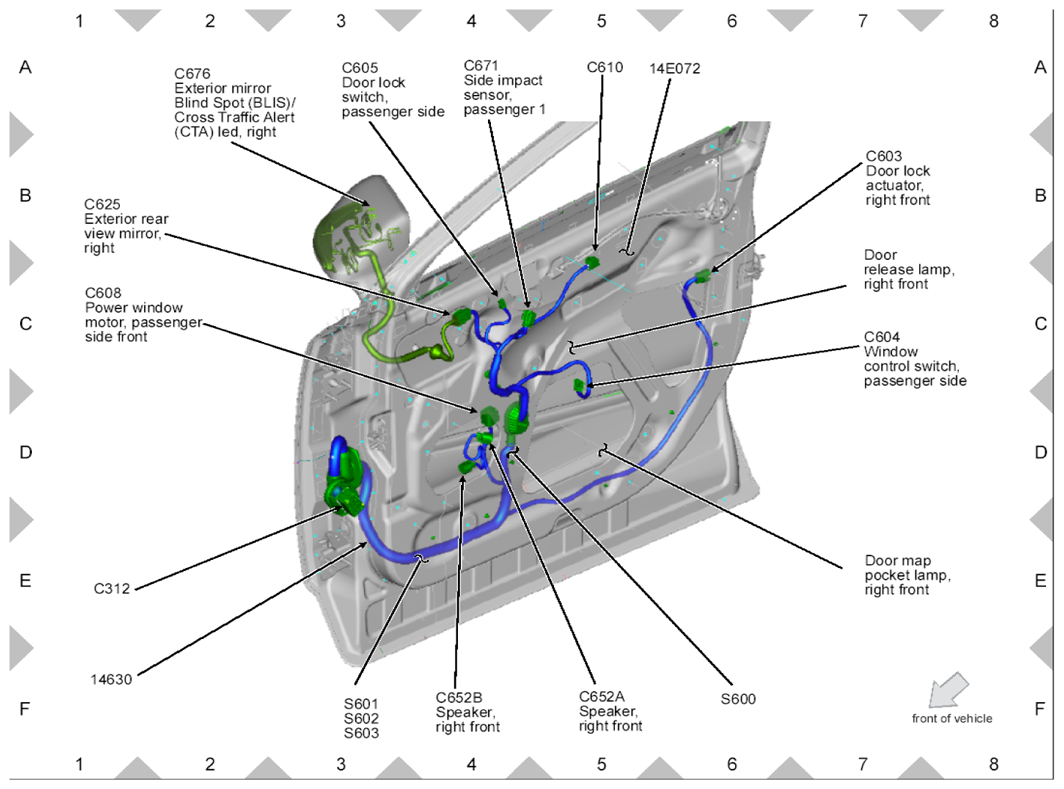

Fig 22: Door Harness Connectors Location (2 Of 4)

G07922081

Courtesy of FORD MOTOR CO.

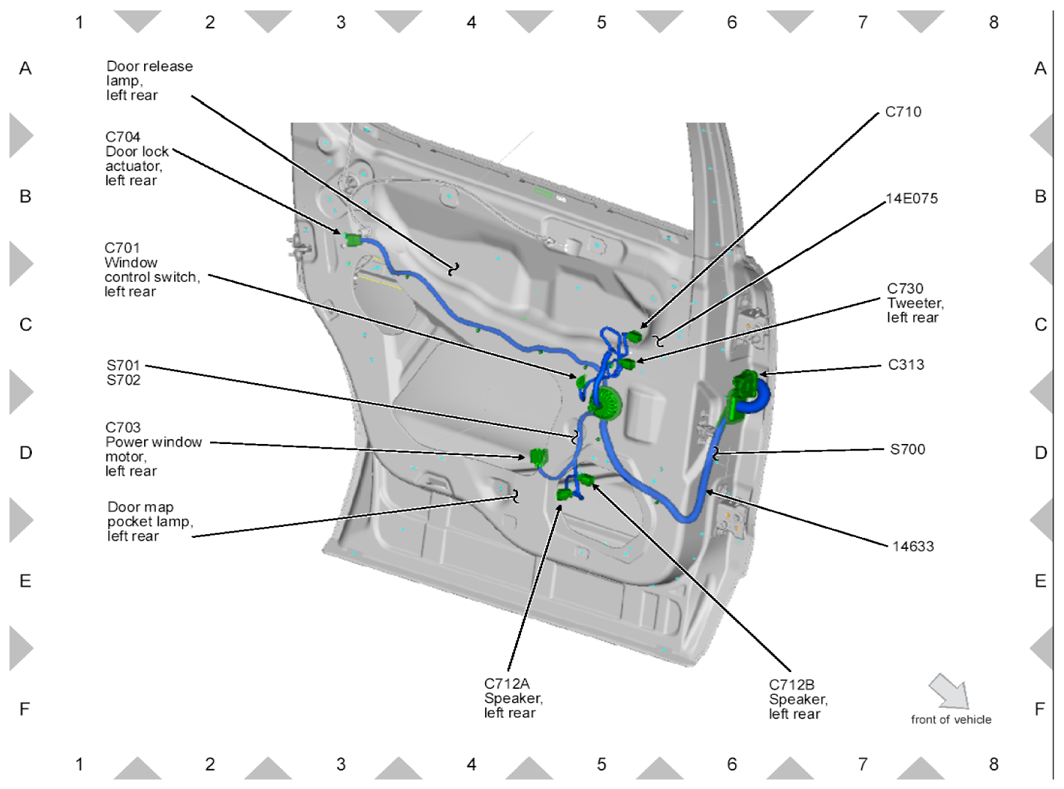

Fig 23: Door Harness Connectors Location (3 Of 4)

G07922082

Courtesy of FORD MOTOR CO.

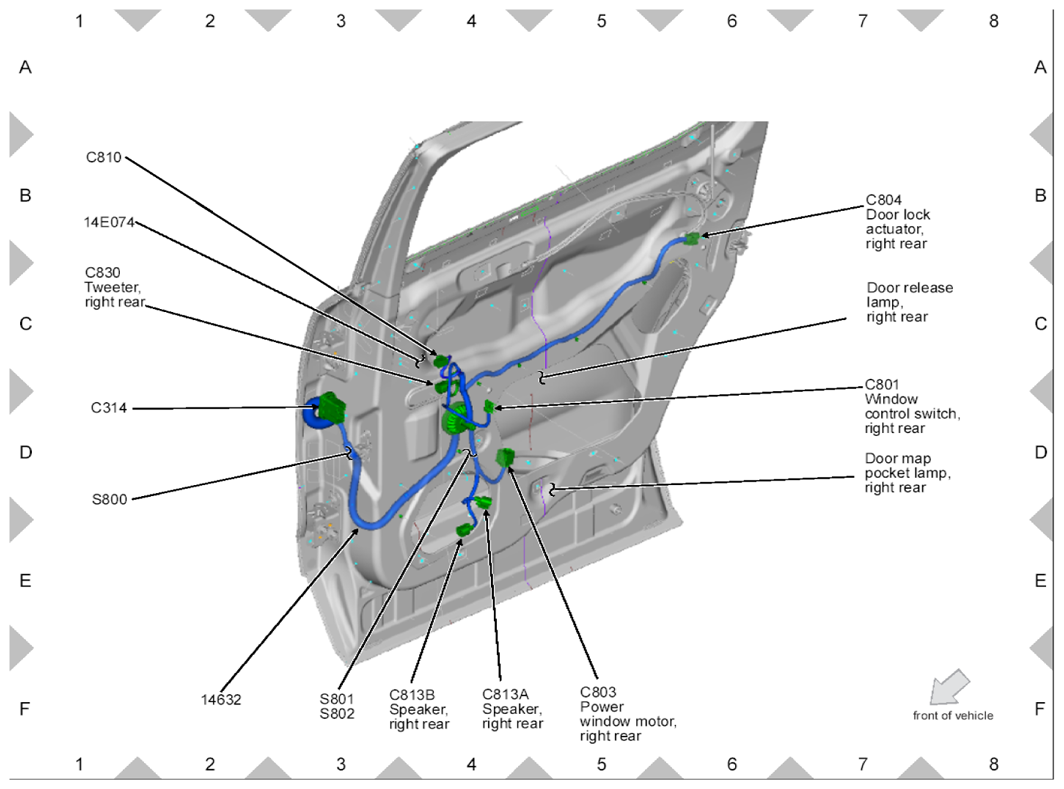

Fig 24: Door Harness Connectors Location (4 Of 4)

G07922083

Courtesy of FORD MOTOR CO.

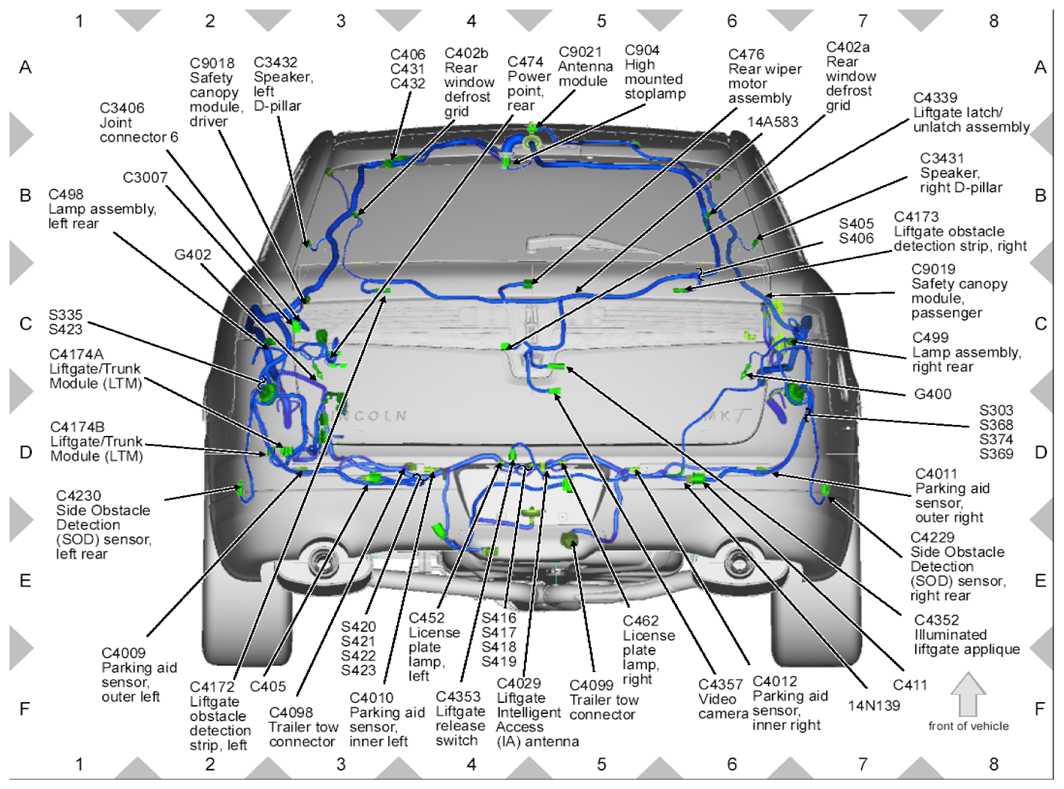

Fig 25: Vehicle Rear Harness Connectors Location

G07922084

Courtesy of FORD MOTOR CO.

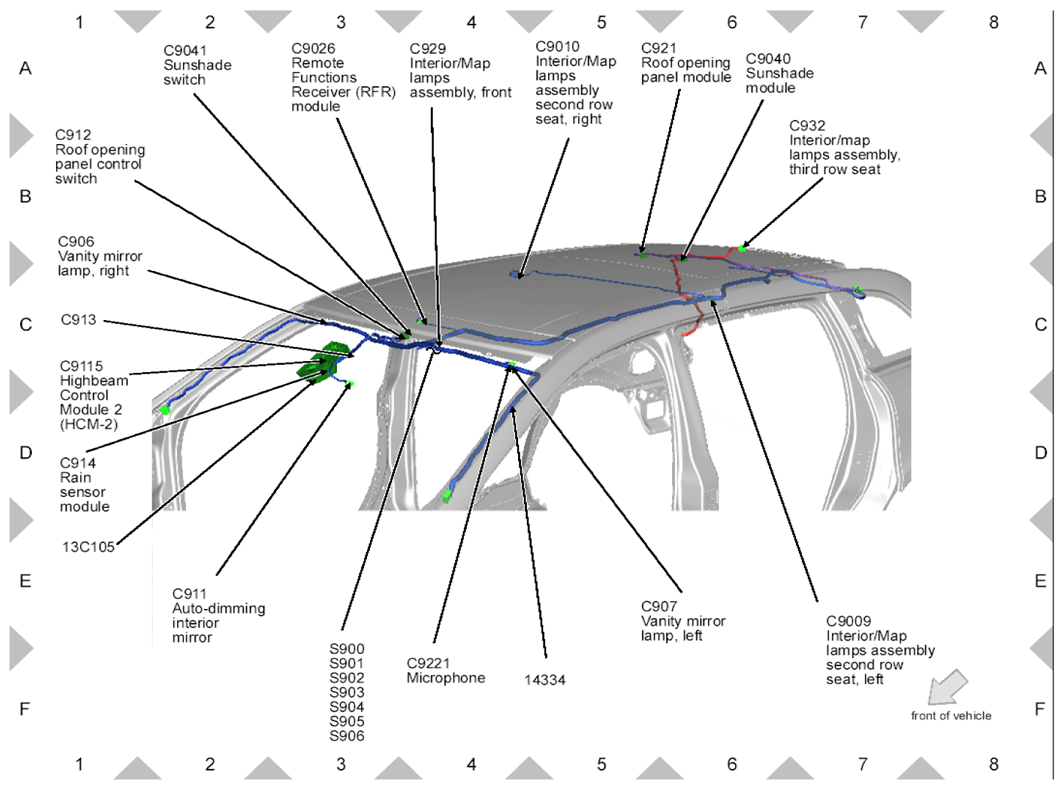

Fig 26: Roof Harness Connectors Location

G07922085

Courtesy of FORD MOTOR CO.

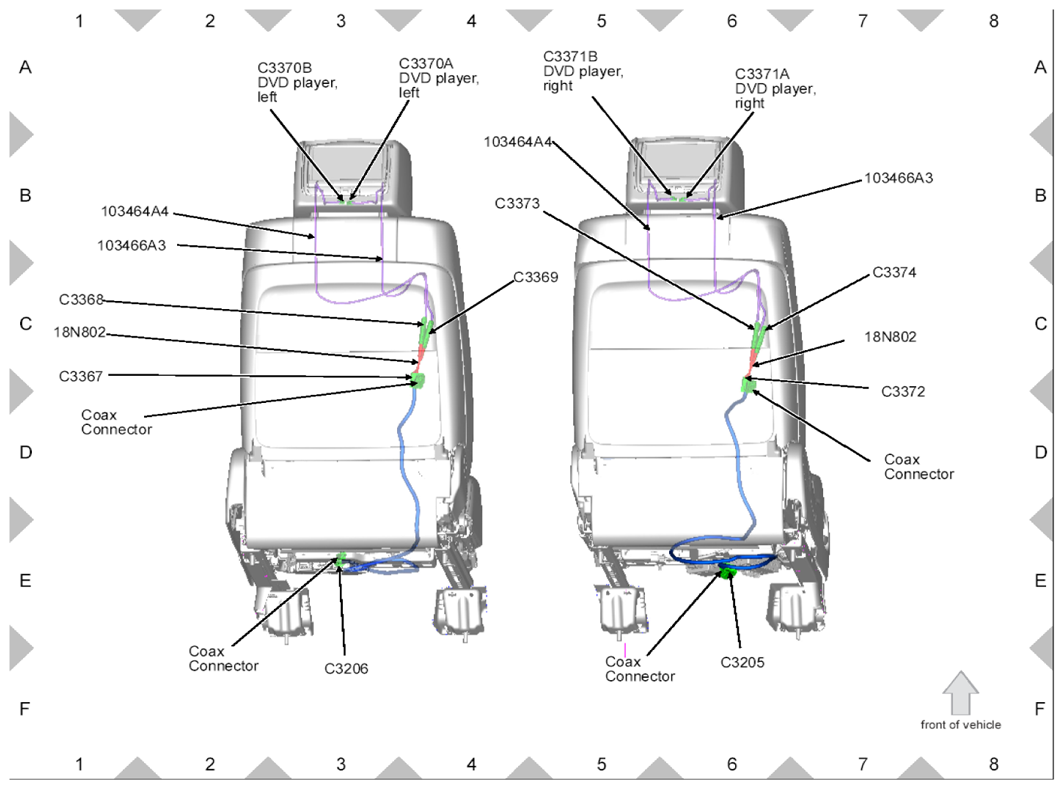

Fig 27: Seat Back Side Harness Connectors Location

G07922086

Courtesy of FORD MOTOR CO.
