Automatic Climate Control System: Notes

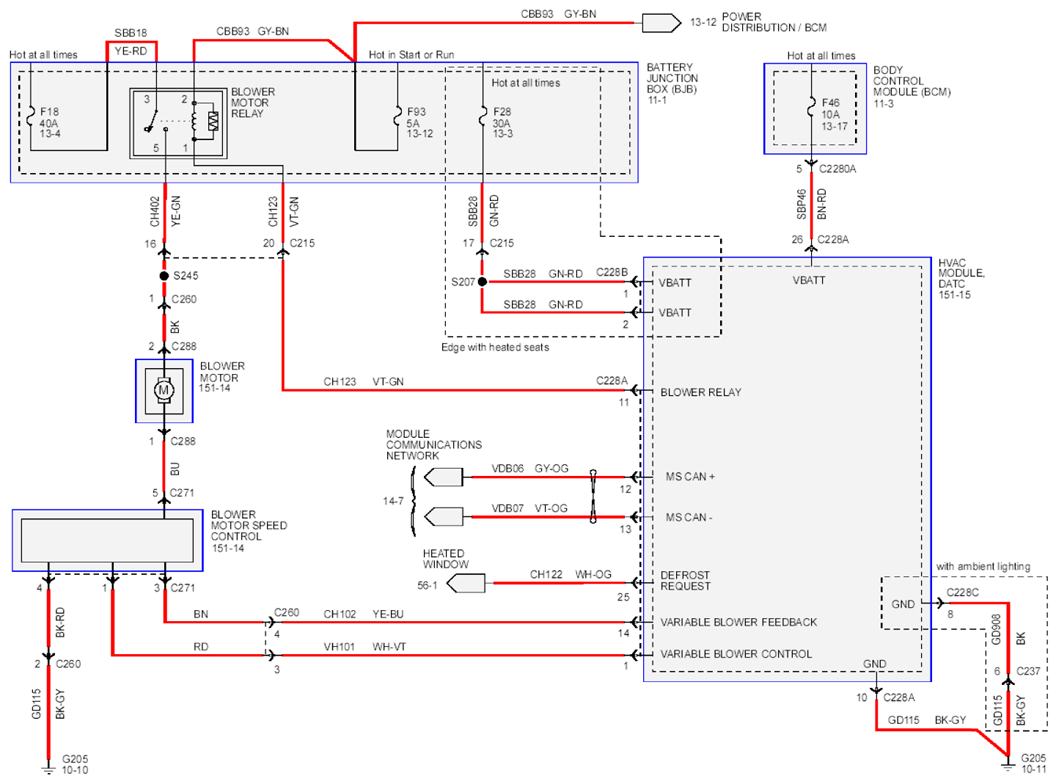

Fig 1: Automatic Climate Control System Circuit Diagram (View 1 Of 8)
G07898672Courtesy of FORD MOTOR CO.

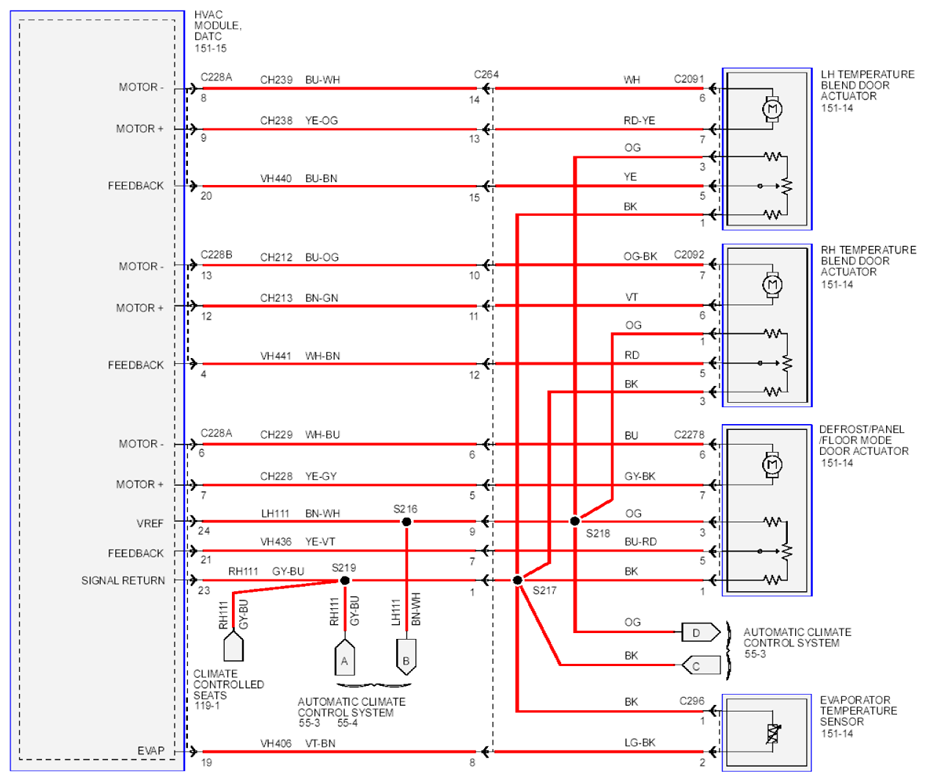

Fig 2: Automatic Climate Control System Circuit Diagram (View 2 Of 8)
G07898673Courtesy of FORD MOTOR CO.
