Wheel Speed Sensor - Front: Notes

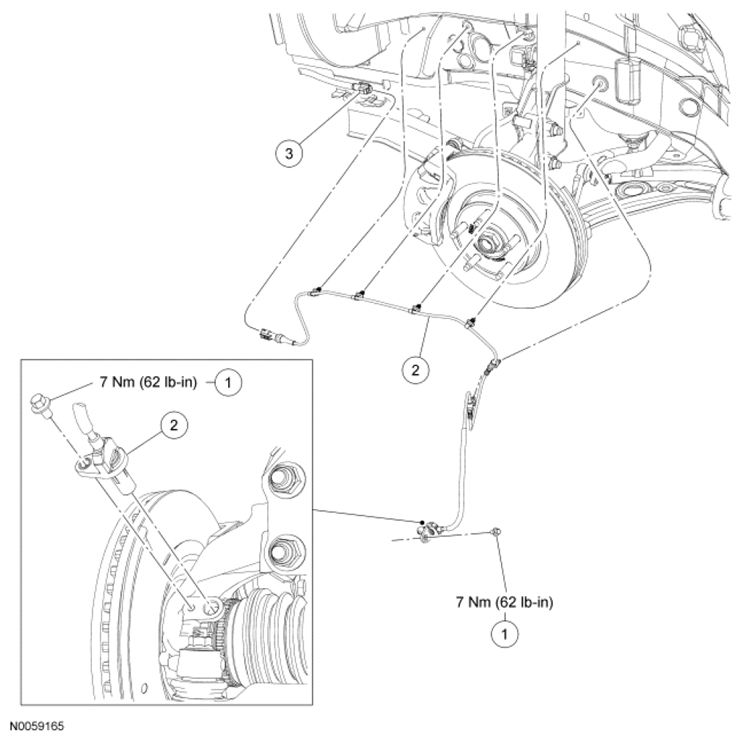

Fig 1: Exploded View Of Wheel Speed Sensor Components With Torque Specifications - Front

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500010	Wheel speed sensor bolt
2	2C204 RH/2C205 LH	Wheel speed sensor
3	-	Wheel speed sensor electrical connector (part of 14290)
