Master window adjust switch - MKX: Schematic

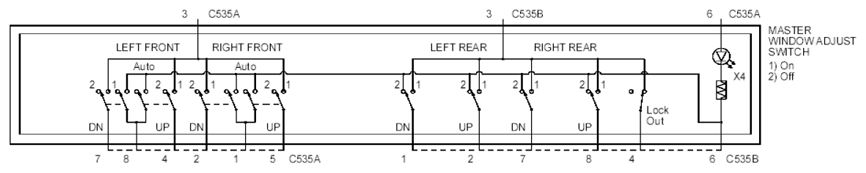

Fig 1: Master Window Adjust Switch (MKX) - Component Testing
G07898817Courtesy of FORD MOTOR CO.
