Engine Mount: Removal

WARNING: This page is about a different car, the 2012 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine appearance cover. For additional information, refer to ENGINE APPEARANCE COVER - EXPLODED VIEW .
    2. NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.

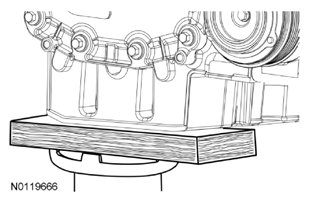

    Fig 1: Positioning Floor Jack With Block Of Wood Under Front Of Oil Pan
    G07929670Courtesy of FORD MOTOR CO.
  2. Position a floor jack with a block of wood under the front of the oil pan.
  3. Remove the 3 bolts and position the engine coolant degas bottle aside.
  4. Remove the nut, bolt and engine mount brace.

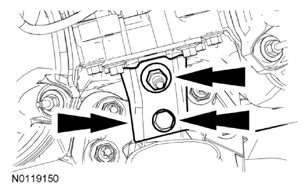

    Fig 2: Locating Nut, Bolt And Engine Mount Brace
    G07929671Courtesy of FORD MOTOR CO.
  5. Remove the 4 engine mount nuts.

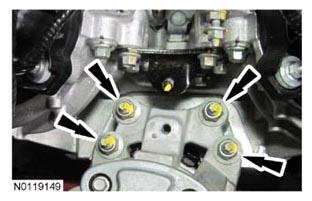

    Fig 3: Locating Engine Mount Nuts
    G07929672Courtesy of FORD MOTOR CO.
  6. Remove the 3 bolts and the engine mount.

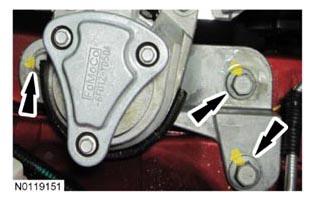

    Fig 4: Locating Engine Mount Bolts
    G07929673Courtesy of FORD MOTOR CO.
