Timing Drive Components: Removal

All engines

1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .

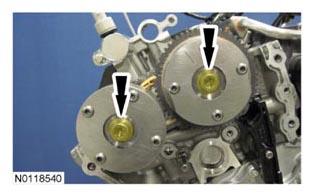

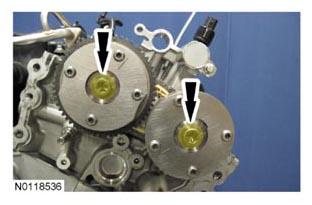

2. Rotate the crankshaft clockwise and align the timing marks on the intake Variable Camshaft Timing (VCT) assemblies as shown in illustration.

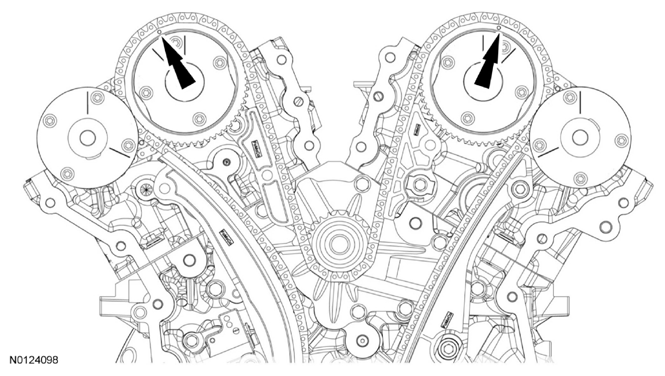

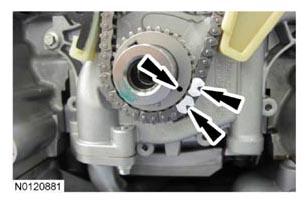

   Fig 1: Locating Timing Marks On Intake Variable Camshaft Timing Assemblies

   Courtesy of FORD MOTOR CO.

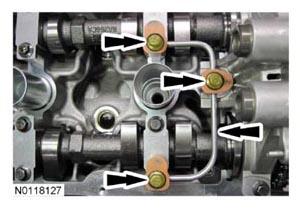

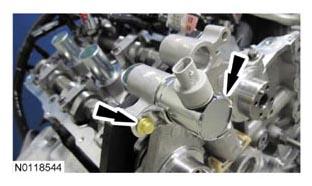

3. Remove the 3 bolts and the LH valve train oil tube.

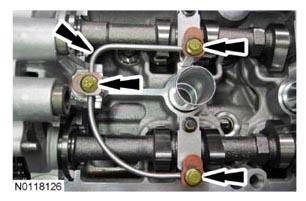

   Fig 2: Locating Bolts And LH Valve Train Oil Tube

   Courtesy of FORD MOTOR CO.

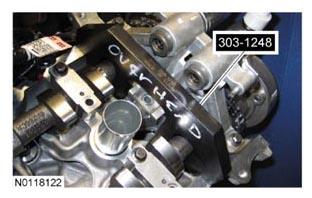

NOTE: The Camshaft Holding Tool will hold the camshafts in the Top Dead Center (TDC) position.
Fig 3: Identifying LH Camshaft Holding Tool
Courtesy of FORD MOTOR CO.
4. Install the Camshaft Holding Tool onto the flats of the LH camshafts.
5. Remove the 3 bolts and the RH valve train oil tube.
   Fig 4: Locating Bolts And RH Valve Train Oil Tube

   Courtesy of FORD MOTOR CO.

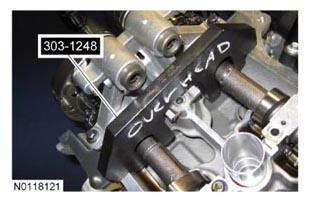

NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.
Fig 5: Identifying RH Camshaft Holding Tool
Courtesy of FORD MOTOR CO.
NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.
6. Install the Camshaft Holding Tool onto the flats of the RH camshafts.

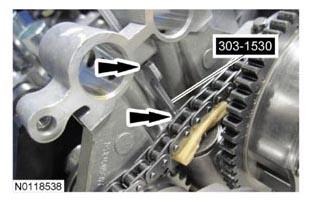

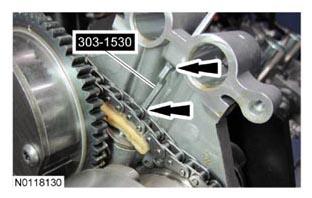

7. Mark the timing chain link that aligns with the timing mark on the LH intake VCT assembly as shown in illustration.

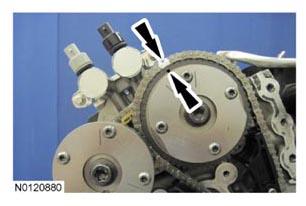

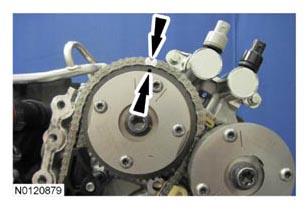

   Fig 6: Locating Timing Mark On LH Intake VCT Assembly And Timing Chain Link

   Courtesy of FORD MOTOR CO.
8. Mark the timing chain link that aligns with the timing mark on the RH intake VCT assembly as shown in illustration.
   Fig 7: Locating Timing Mark On RH Intake VCT Assembly And Timing Chain Link

   Courtesy of FORD MOTOR CO.
NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.
Fig 8: Locating Marked Timing Chain Links With Timing Mark On Crankshaft Sprocket
Courtesy of FORD MOTOR CO.
9. Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown in illustration.

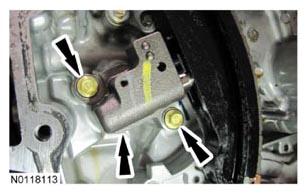

10. Remove the 2 bolts and the primary timing chain tensioner.
    Fig 9: Locating Bolts And Primary Timing Chain Tensioner

    Courtesy of FORD MOTOR CO.
11. Remove the primary timing chain tensioner arm.
    Fig 10: Locating Primary Timing Chain Tensioner Arm

    Courtesy of FORD MOTOR CO.
12. Remove the 2 bolts and the lower LH primary timing chain guide.

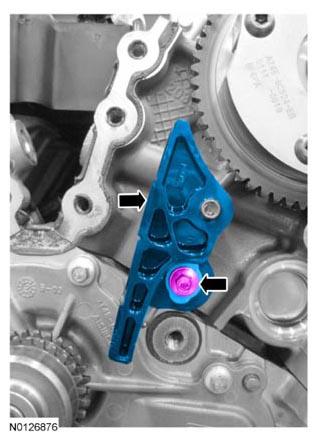

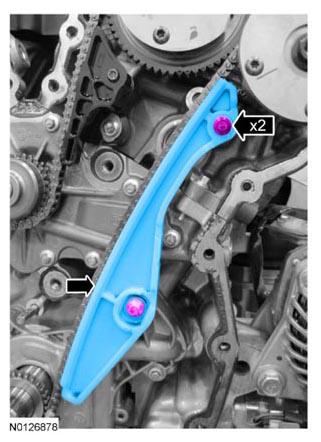

    Fig 11: Locating Bolts And Lower LH Primary Timing Chain Guide

    Courtesy of FORD MOTOR CO.

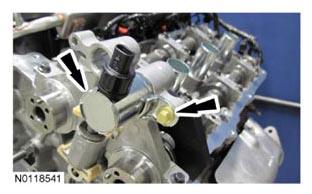

NOTE: Removal of the VCT oil control solenoid will aid in the removal of the primary timing chain.
NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

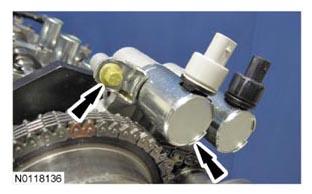

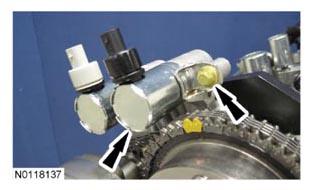

Fig 12: Locating Bolt And LH Intake VCT Oil Control Solenoid
Courtesy of FORD MOTOR CO.
13. Remove the bolt and the LH intake VCT oil control solenoid.
NOTE: Removal of the VCT oil control solenoid will aid in the removal of the primary timing chain.
NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
NOTE: Keep the VCT oil control solenoid clean of dirt and debris.
Fig 13: Locating Bolt And RH Intake VCT Oil Control Solenoid
Courtesy of FORD MOTOR CO.
14. Remove the bolt and the RH intake VCT oil control solenoid.

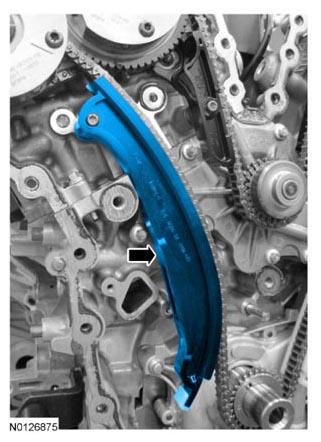

15. Remove the primary timing chain.
    Fig 14: Locating Primary Timing Chain

    Courtesy of FORD MOTOR CO.
16. Remove the crankshaft timing chain sprocket.
    Fig 15: Locating Crankshaft Timing Chain Sprocket

    Courtesy of FORD MOTOR CO.
NOTE: Do not use power tools to remove the bolt or damage to the LH primary timing chain guide may occur.

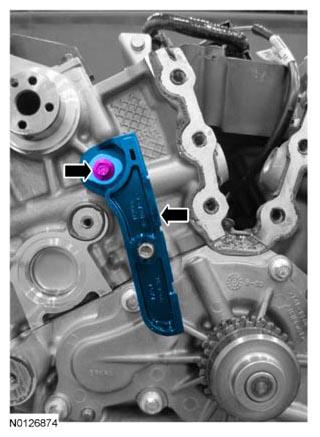

Fig 16: Locating Bolt And Upper LH Primary Timing Chain Guide
Courtesy of FORD MOTOR CO.
17. Remove the bolt and the upper LH primary timing chain guide.
NOTE: The 2 VCT oil control solenoids are removed for clarity.
NOTE: The Secondary Chain Hold Down is inserted through a hole in the top of the mega cap.

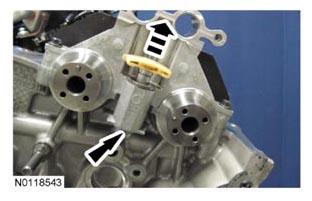

Fig 17: Locating Secondary Chain Hold Down And Secondary Timing Chain Tensioner Guide
Courtesy of FORD MOTOR CO.

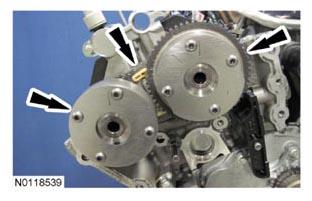

18. Compress the LH secondary timing chain tensioner and install the Secondary Chain Hold Down in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position.
19. Remove and discard the 2 LH VCT assembly bolts.
    Fig 18: Locating LH VCT Assembly Bolts

    Courtesy of FORD MOTOR CO.
20. Remove the 2 LH VCT assemblies and secondary timing chain.

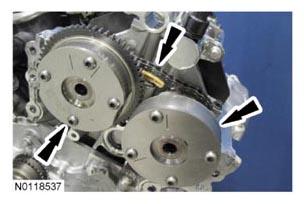

    Fig 19: Locating LH VCT Assemblies And Secondary Timing Chain

    Courtesy of FORD MOTOR CO.
NOTE: The 2 VCT oil control solenoids are removed for clarity.
NOTE: The Secondary Chain Hold Down is inserted through a hole in the top of the mega cap.

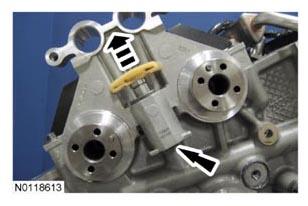

Fig 20: Locating Secondary Chain Hold Down And Secondary Timing Chain Tensioner Guide
Courtesy of FORD MOTOR CO.
21. Compress the RH secondary timing chain tensioner and install the Secondary Chain Hold Down in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position.
22. Remove and discard the 2 RH VCT assembly bolts.
    Fig 21: Locating RH VCT Assembly Bolts

    Courtesy of FORD MOTOR CO.
23. Remove the 2 RH VCT assemblies and secondary timing chain.
    Fig 22: Locating RH VCT Assemblies And Secondary Timing Chain

    Courtesy of FORD MOTOR CO.
NOTE: Do not use power tools to remove the bolt or damage to the RH primary timing chain guide may occur.
Fig 23: Locating Bolt And RH Primary Timing Chain Guide
Courtesy of FORD MOTOR CO.
NOTE: The following steps are only for the replacement of the secondary timing chain tensioners. Do not reuse the secondary timing chain tensioners if removed, or damage to the engine may occur.
24. Remove the bolt and the RH primary timing chain guide.

    Engines with secondary timing chain tensioner removed

NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
NOTE: Keep the VCT oil control solenoid clean of dirt and debris.
Fig 24: Locating LH Exhaust VCT Oil Control Solenoid
Courtesy of FORD MOTOR CO.
25. Remove the LH exhaust VCT oil control solenoid.
26. Remove the LH secondary timing chain tensioner shoe.

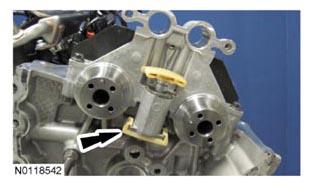

    Fig 25: Locating LH Secondary Timing Chain Tensioner Shoe

    Courtesy of FORD MOTOR CO.
27. Remove the LH secondary timing chain tensioner by pushing up from the bottom and remove.
    Fig 26: Removing LH Secondary Timing Chain Tensioner By Pushing Up From Bottom

    Courtesy of FORD MOTOR CO.
NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
NOTE: Keep the VCT oil control solenoid clean of dirt and debris.
Fig 27: Locating RH Exhaust VCT Oil Control Solenoid
Courtesy of FORD MOTOR CO.
28. Remove the RH exhaust VCT oil control solenoid.
29. Remove the RH secondary timing chain tensioner shoe.

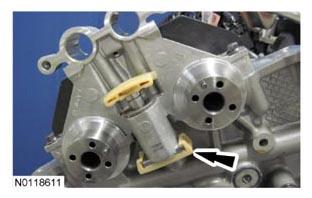

    Fig 28: Locating RH Secondary Timing Chain Tensioner Shoe

    Courtesy of FORD MOTOR CO.
30. Remove the RH secondary timing chain tensioner by pushing up from the bottom and remove.
    Fig 29: Removing RH Secondary Timing Chain Tensioner By Pushing Up From Bottom

    Courtesy of FORD MOTOR CO.
