Steering Column View 2 of 2

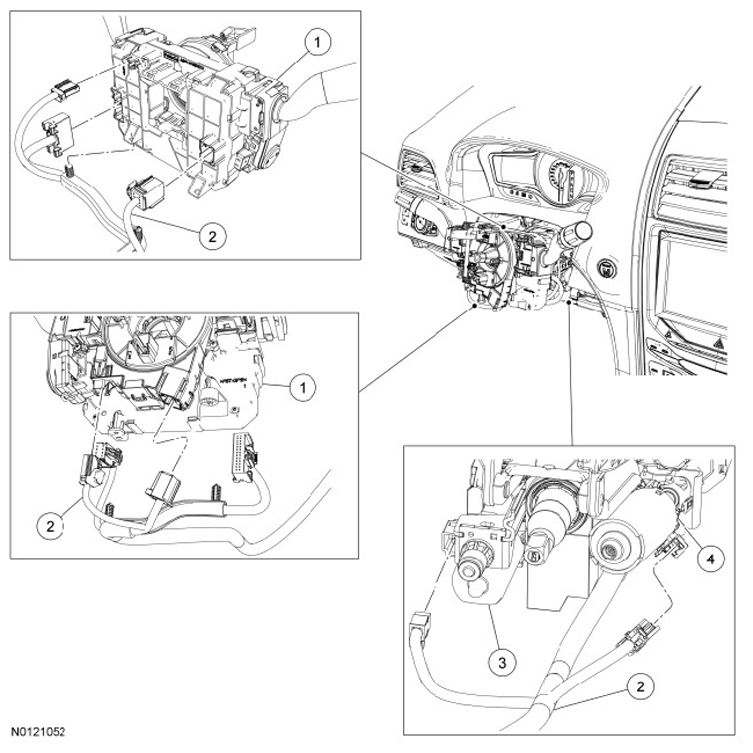

Fig 1: Exploded View Of Steering Column Components (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3B504	Steering Column Control Module (SCCM)
2	14401	Wiring harness
3	-	Steering column telescoping motor (part of 3C529)
4	3D538	Steering column tilt motor (also part of 3C529)
