Transaxle Support Insulator - Anti-Roll: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Threadlock and Sealer TA-25	WSK-M2G351-A5

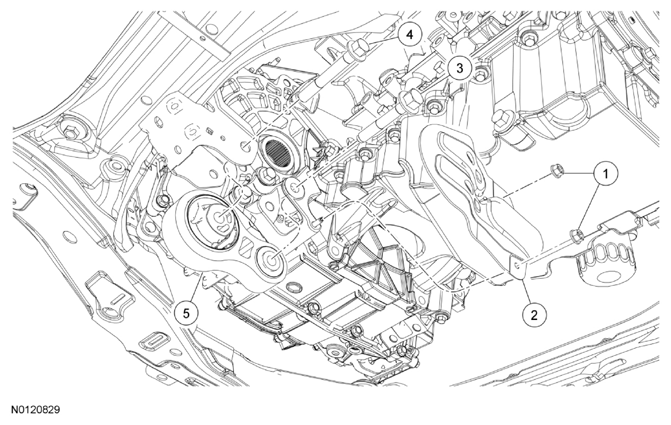

Fig 1: Exploded View Of Transaxle Support Insulator Components - Anti-Roll

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W700101	Roll restrictor heat shield nut (2 required)
2	6C038	Roll restrictor heat shield
3	W711843	Roll restrictor-to-transaxle bracket through bolt
4	W706674	Roll restrictor-to-subframe through bolt
5	6068	Roll restrictor
