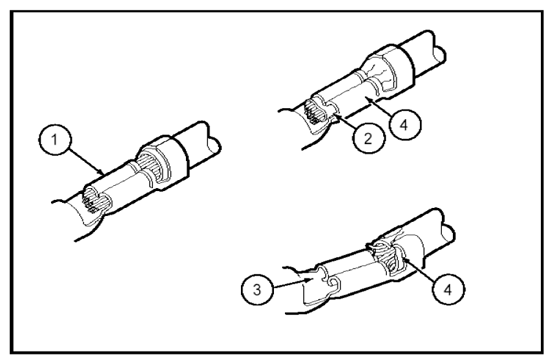

Defective insulation stripping

1 = Proper crimp

2 = Insulation not removed

3 = Wire strands missing

4 = Intermittent signals through pierced insulation

Fig 1: Connector Components (Defective Insulation Stripping)

Courtesy of FORD MOTOR CO.
