Accelerator Pedal: Notes

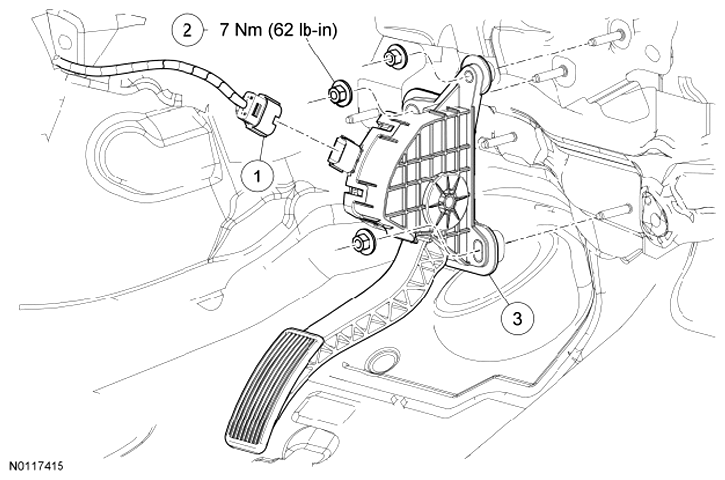

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Accelerator pedal sensor electrical connector (part of 14290)
2	90907	Accelerator pedal nut (3 required)
3	9F836	Accelerator pedal and sensor assembly
