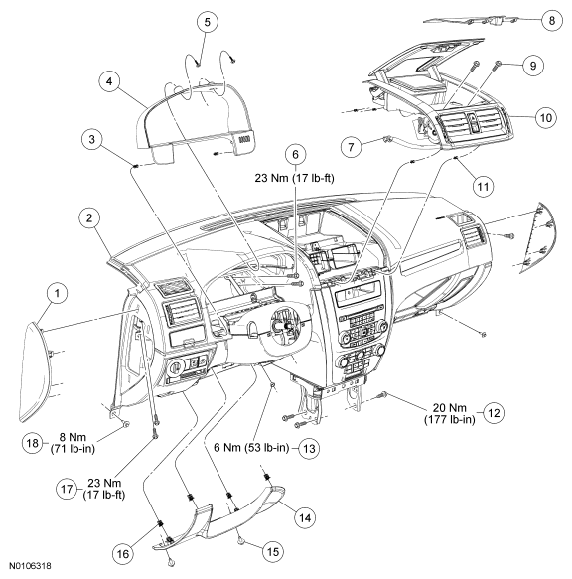

| 1 |
04480 RH/04481 LH |
Instrument panel side finish panel |
| 2 |
04320 |
Instrument panel |
| 3 |
- |
Instrument cluster finish panel retaining clip (part of 044D70) (2 required) |
| 4 |
044D70 |
Instrument cluster finish panel |
| 5 |
W707628 |
Instrument cluster finish panel screw (2 required) |
| 6 |
W701834 |
Instrument Cluster (IC) opening bolt (2 required) |
| 7 |
- |
Upper storage compartment tether (part of 13594) |
| 8 |
045G34 |
Upper storage compartment mat |
| 9 |
W505253 |
Upper storage compartment screw (2 required) |
| 10 |
13549 |
Upper storage compartment |
| 11 |
- |
Upper storage compartment retaining clip (part of 13594) (4 required) |
| 12 |
N811479 |
Instrument panel center support bolt (3 required) |
| 13 |
- |
Upper storage compartment tether nut |
| 14 |
011201 |
Steering column opening trim panel |
| 15 |
N808453 |
Steering column opening trim panel screw (2 required) |
| 16 |
- |
Steering column opening trim panel retaining clip (4 required) |
| 17 |
W701834 |
Instrument panel side bolt (3 required) |
| 18 |
W708268 |
Instrument panel lower bolt (2 required) |
