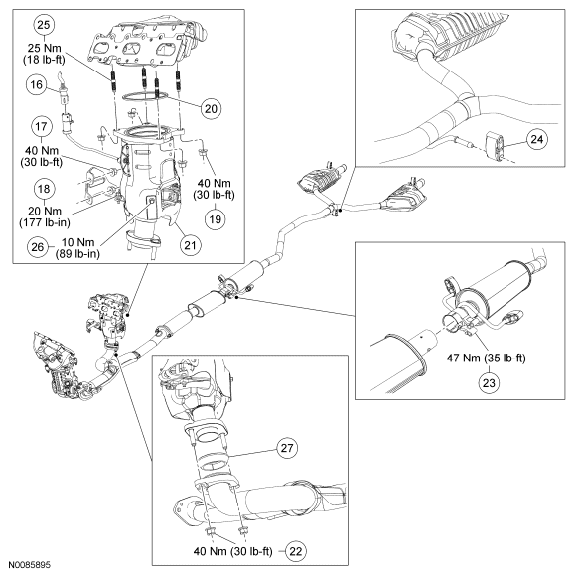

3.5L (View 2 of 3)
NOTE:
Front Wheel Drive (FWD) shown in illustration, All-Wheel Drive (AWD) similar.
| Item | Part Number | Description |
|---|---|---|
| 16 | 14A464 | RH CMS electrical connector |
| 17 | W710512/W520414 | Catalytic converter support bracket-to-engine block nut (2 required) |
| 18 | W500222 | Bracket-to-RH catalytic converter bolt (2 required) |
| 19 | W520414 | RH catalytic converter-to-exhaust manifold nut (4 required) |
| 20 | 5F263 | Gasket |
| 21 | 5E211 | RH catalytic converter |
| 22 | W520414 | Exhaust Y-pipe-to-RH catalytic converter nut (2 required) |
| 23 | 5221 | Torca® clamp |
| 24 | 5F262 | Muffler and tail pipe isolator (5 required) |
| 25 | W712458 | RH catalytic converter-to-exhaust manifold stud (4 required) |
| 26 | W500211 | RH catalytic converter heat shield bolt (3 required) |
| 27 | - | Gasket |
