Engine Upper

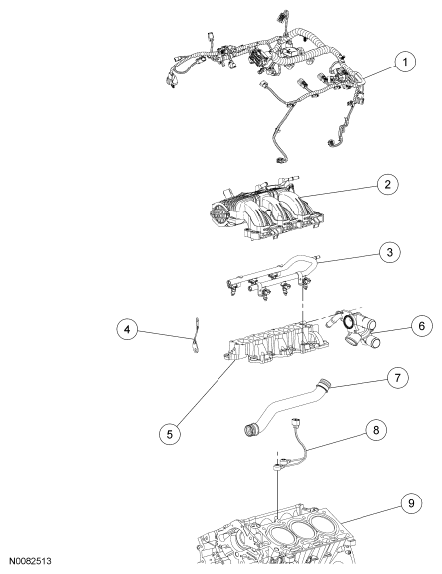

Fig 1: Exploded View Of Engine Upper

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	12A581	Engine control harness
2	9424	Upper intake manifold
3	9F792	Fuel rail
4	9J444	Upper intake manifold support bracket
5	9424	Lower intake manifold
6	8A586	Thermostat housing
7	9N271	Coolant tube
8	12A699	Knock Sensor (KS)
9	6010	Cylinder block
