UEGO MONIOTOR

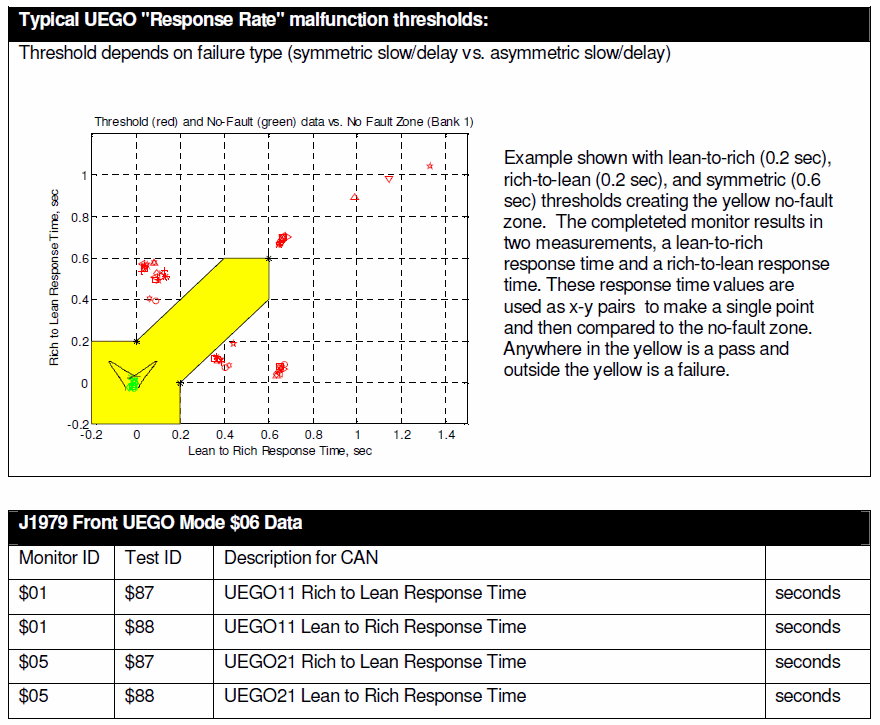

Fig 1: Mode $06 Data For UEGO Response Rate Monitor
G00502241Courtesy of FORD MOTOR CO.
Fig 2: Mode $06 Data For UEGO Response Time Monitor
G00502252Courtesy of FORD MOTOR CO.
