Module Communications Network

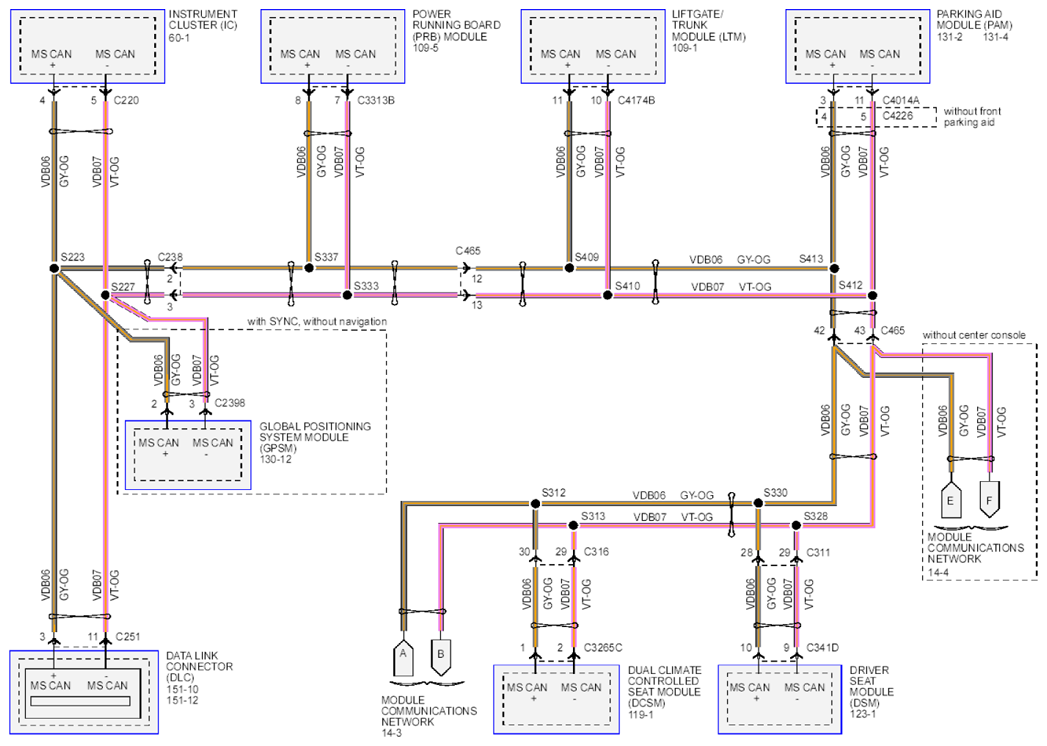

Fig 1: Module Communications Network Circuit Diagram (View 1 Of 5)

Courtesy of FORD MOTOR CO.

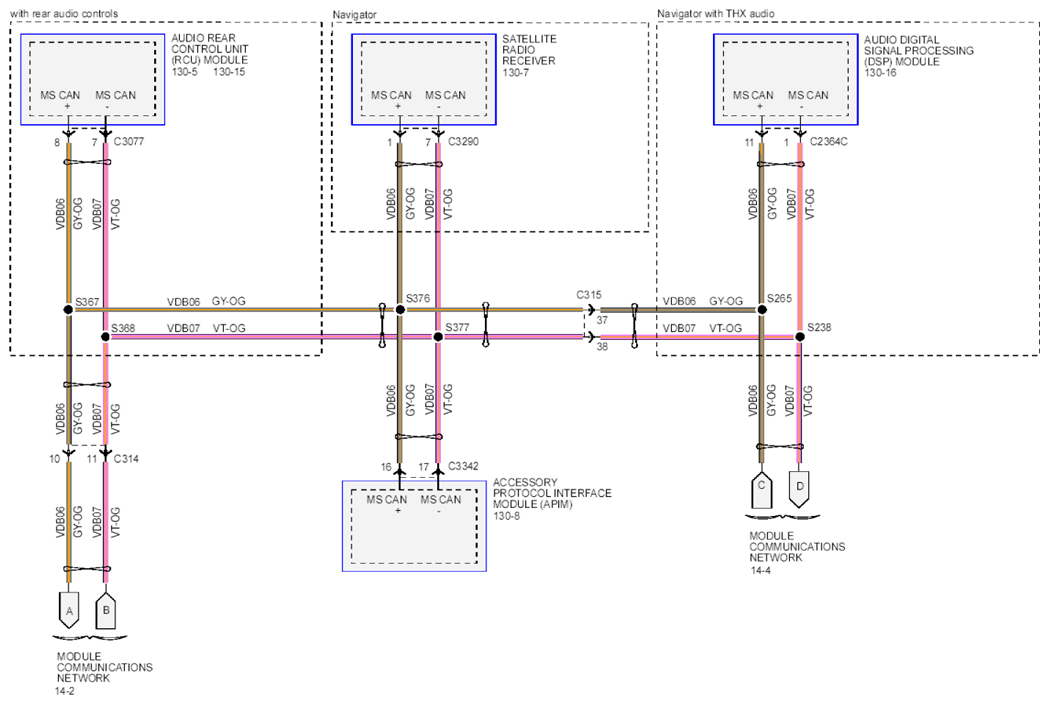

Fig 2: Module Communications Network Circuit Diagram (View 2 Of 5)

Courtesy of FORD MOTOR CO.

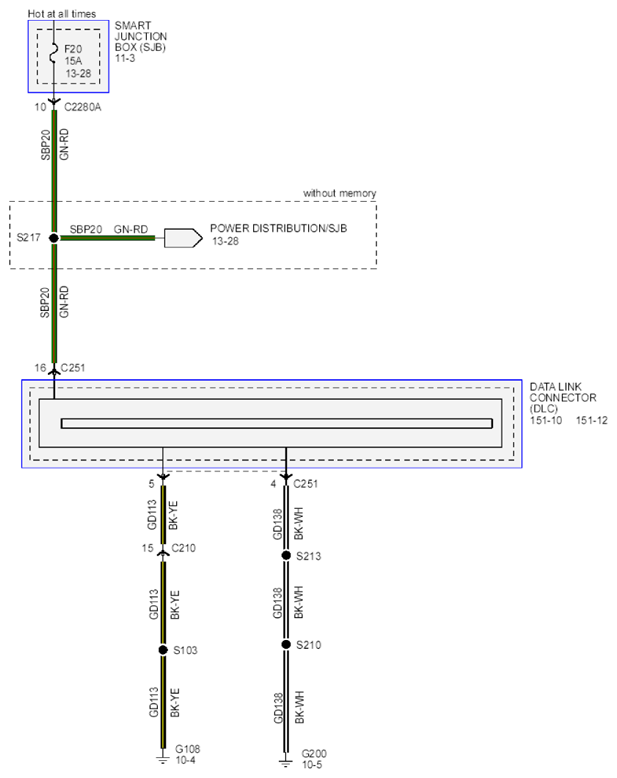

Fig 3: Module Communications Network Circuit Diagram (View 3 Of 5)

Courtesy of FORD MOTOR CO.

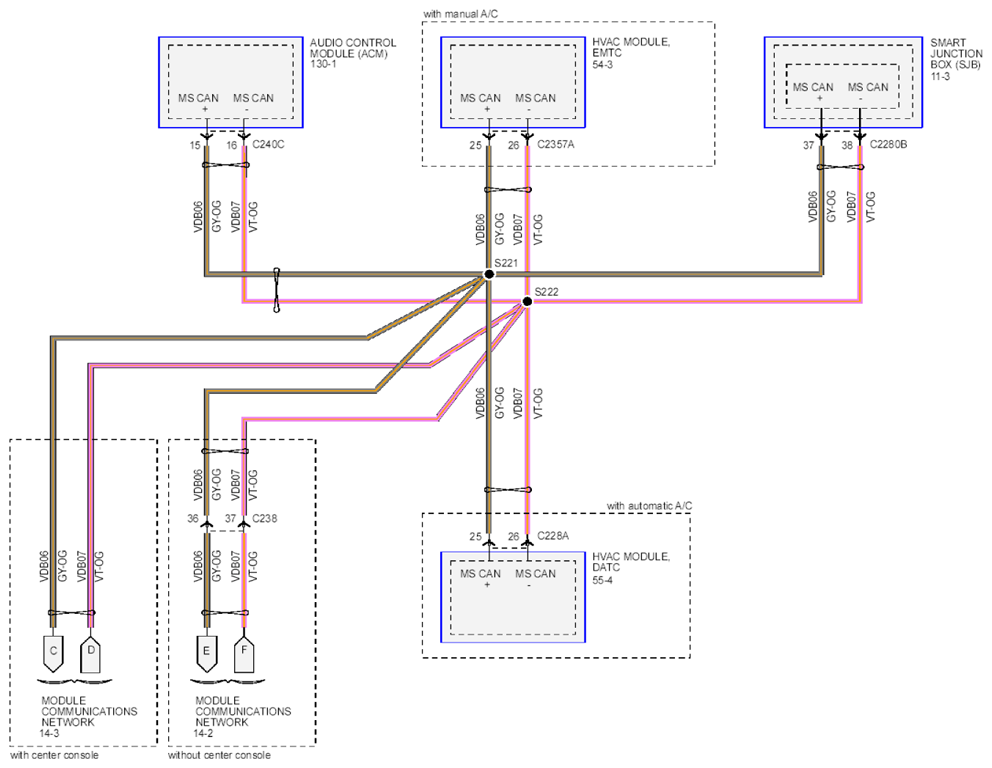

Fig 4: Module Communications Network Circuit Diagram (View 4 Of 5)

Courtesy of FORD MOTOR CO.

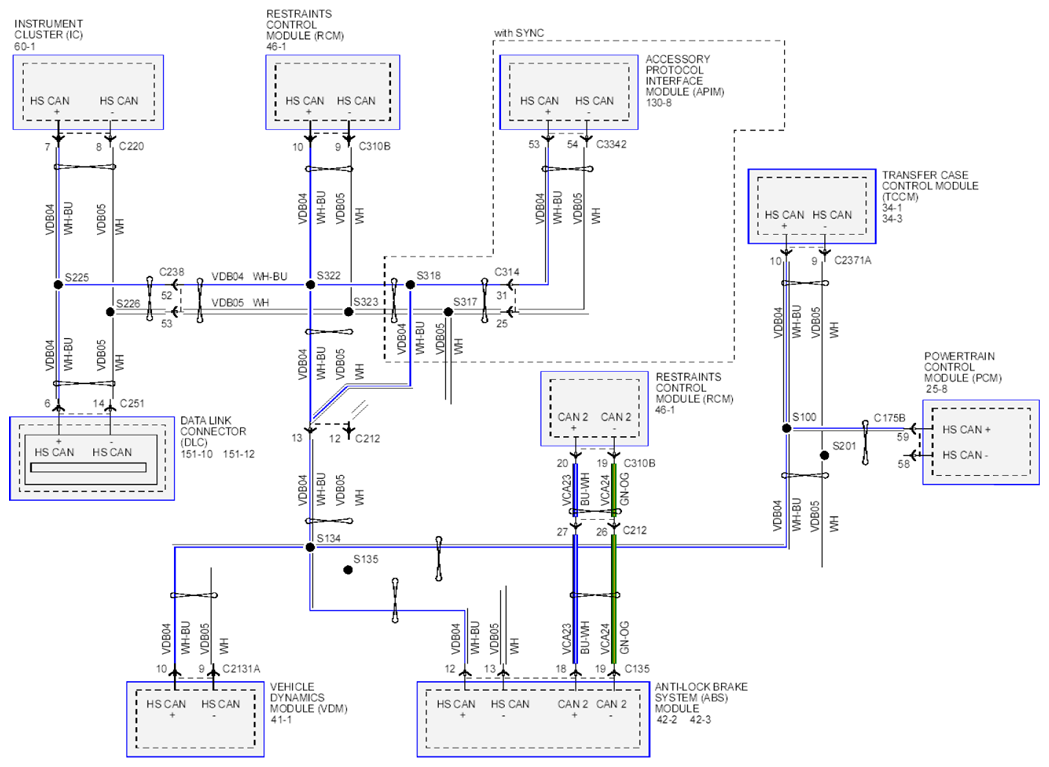

Fig 5: Module Communications Network Circuit Diagram (View 5 Of 5)

Courtesy of FORD MOTOR CO.
