Block Heater: Notes

WARNING: This page is about a different car, the 2012 Lincoln Navigator, 2012 Ford Expedition EL, and 2012 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Specialty Orange Engine Coolant VC-3-B (US); CVC-3-B (Canada); or equivalent	WSS-M97B44-D

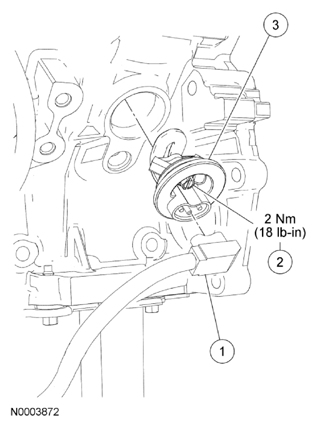

Fig 1: Identifying Block Heater, Electrical Connector And Retaining Screw

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A199	Block heater electrical connector
2	-	Block heater retaining screw (part of 6A051)
3	6A051	Block heater
