Audio System_Navigation: Notes

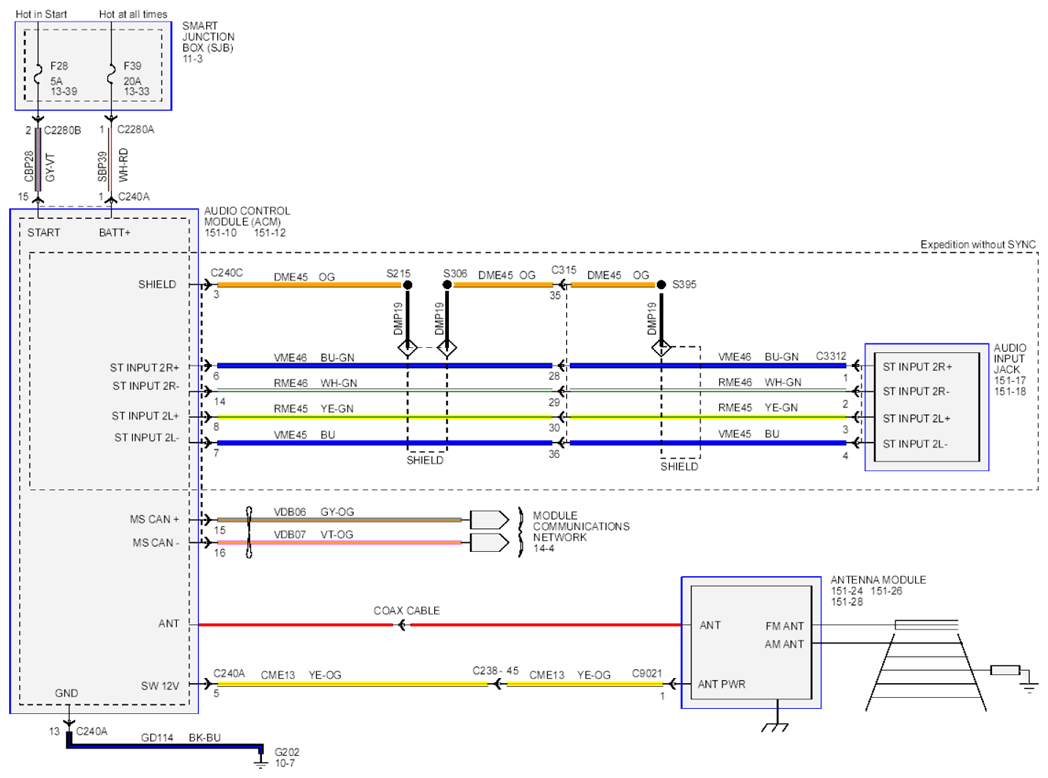

Fig 1: Audio System And Navigation Circuit Diagram (View 1 Of 27)
G07900620Courtesy of FORD MOTOR CO.
