Component Location Views

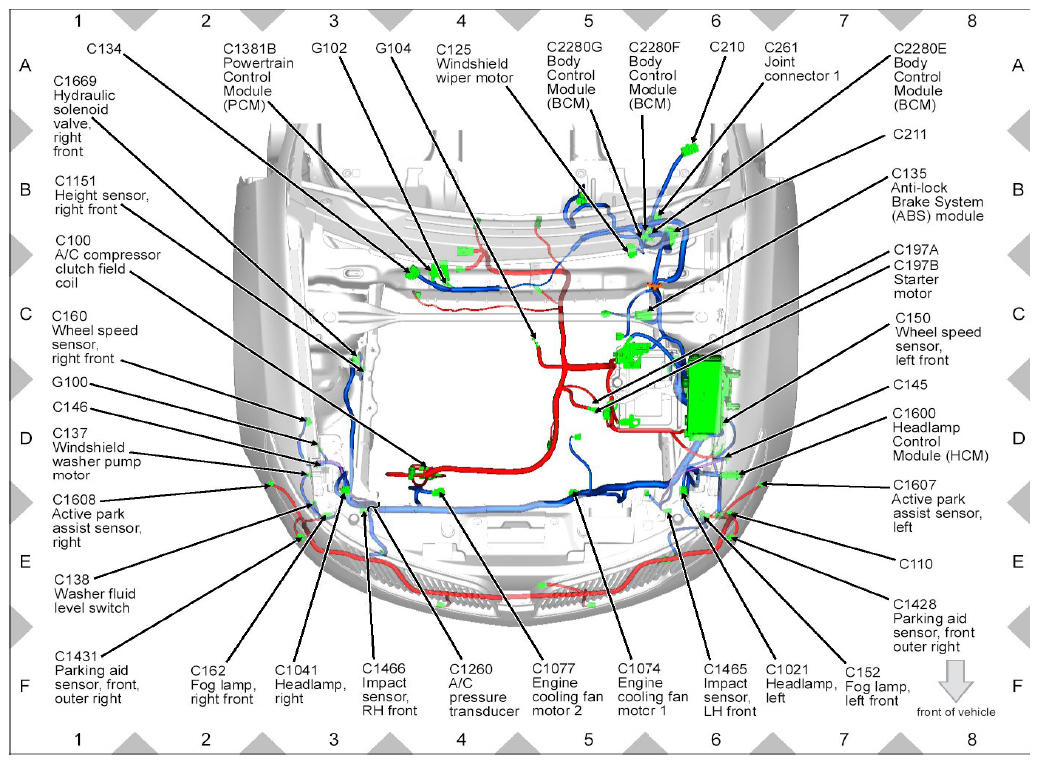

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 6)
G09081078Courtesy of FORD MOTOR CO.

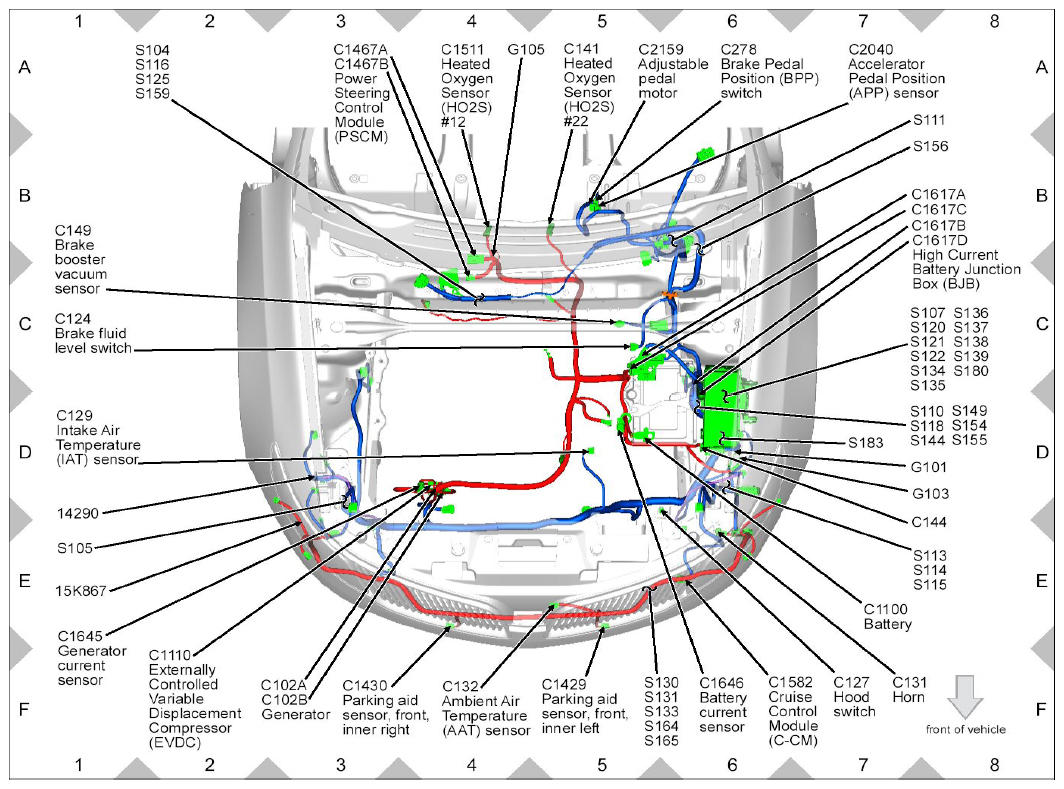

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 6)
G09081079Courtesy of FORD MOTOR CO.

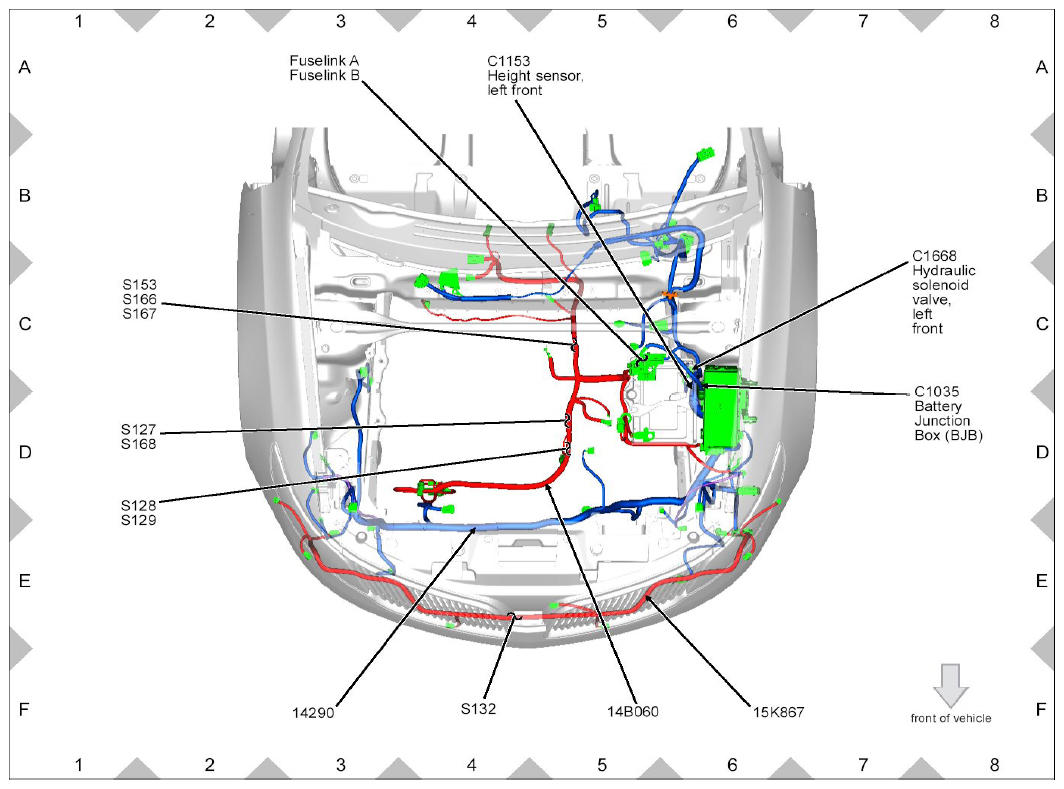

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 6)
G09081080Courtesy of FORD MOTOR CO.

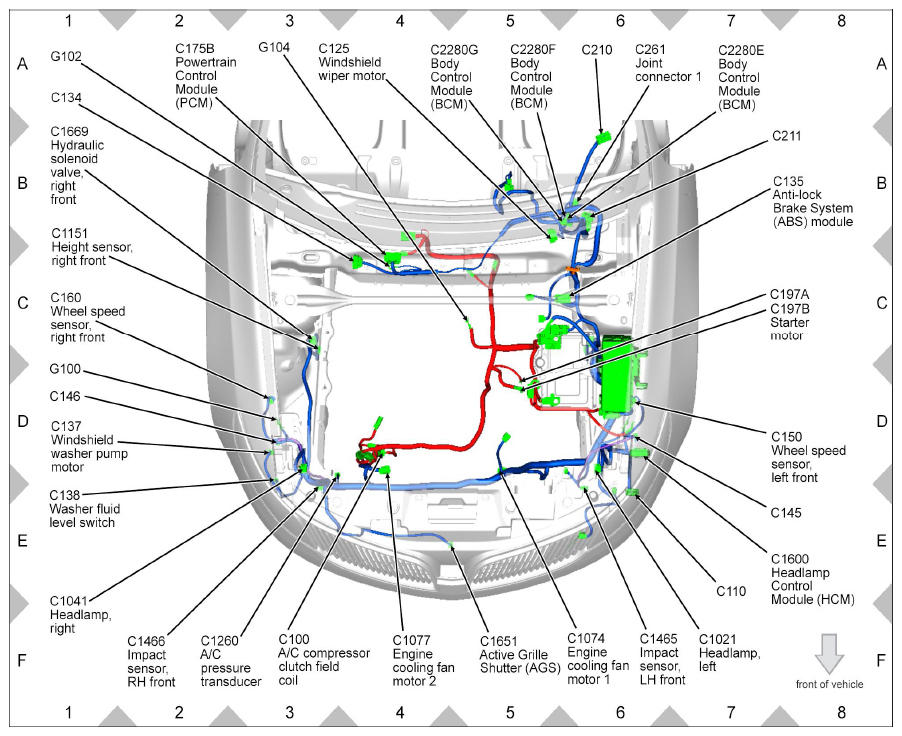

Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 6)
G09081081Courtesy of FORD MOTOR CO.

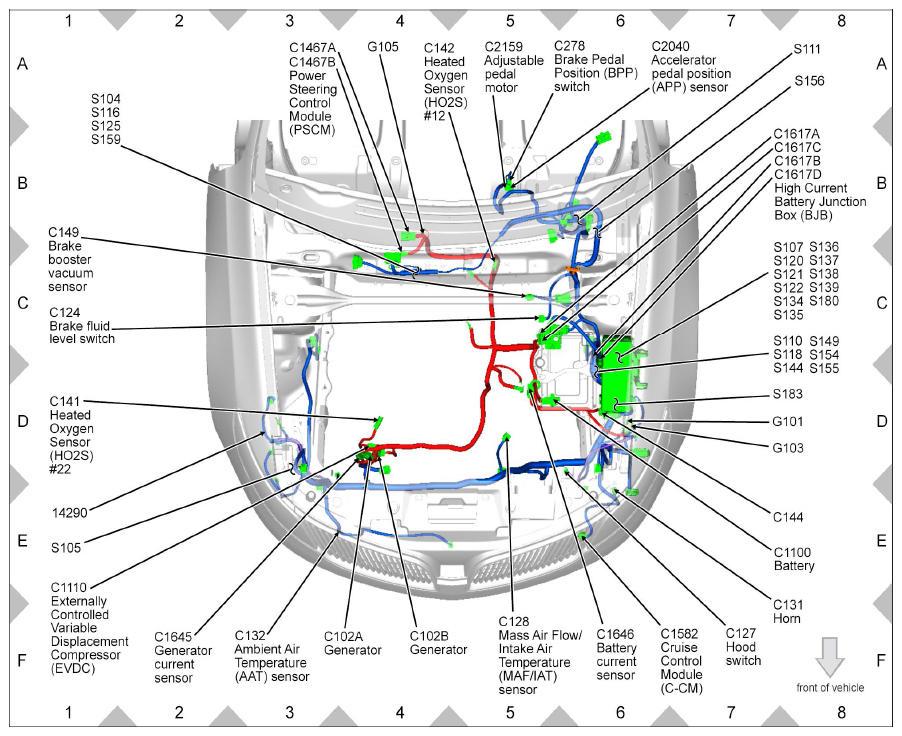

Fig 5: Engine Compartment Wiring Harness Connectors Location (5 Of 6)
G09081082Courtesy of FORD MOTOR CO.

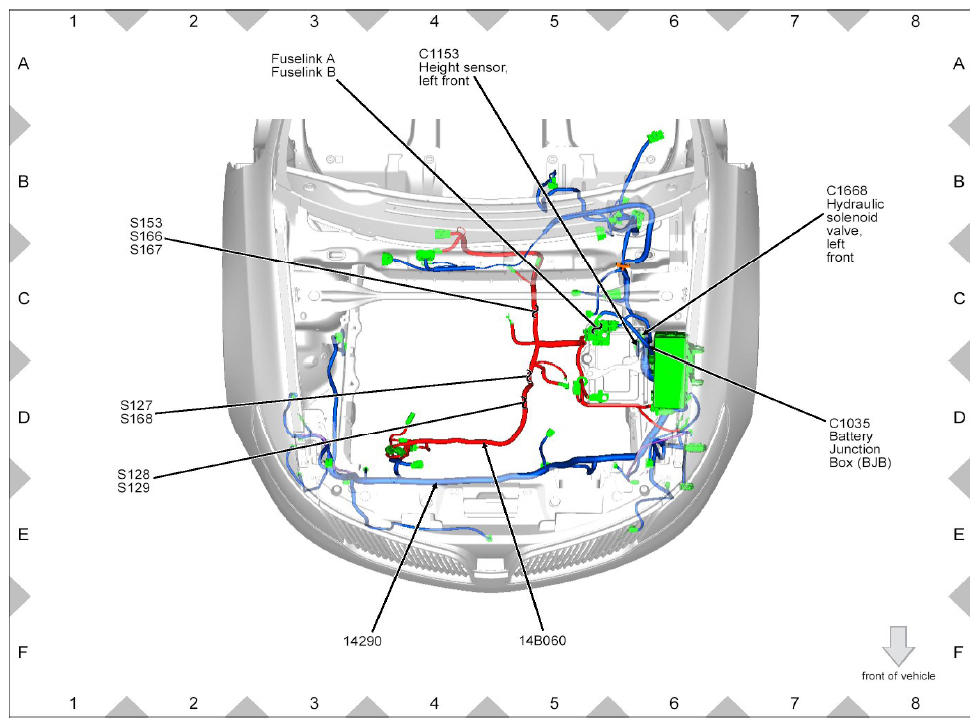

Fig 6: Engine Compartment Wiring Harness Connectors Location (6 Of 6)
G09081083Courtesy of FORD MOTOR CO.

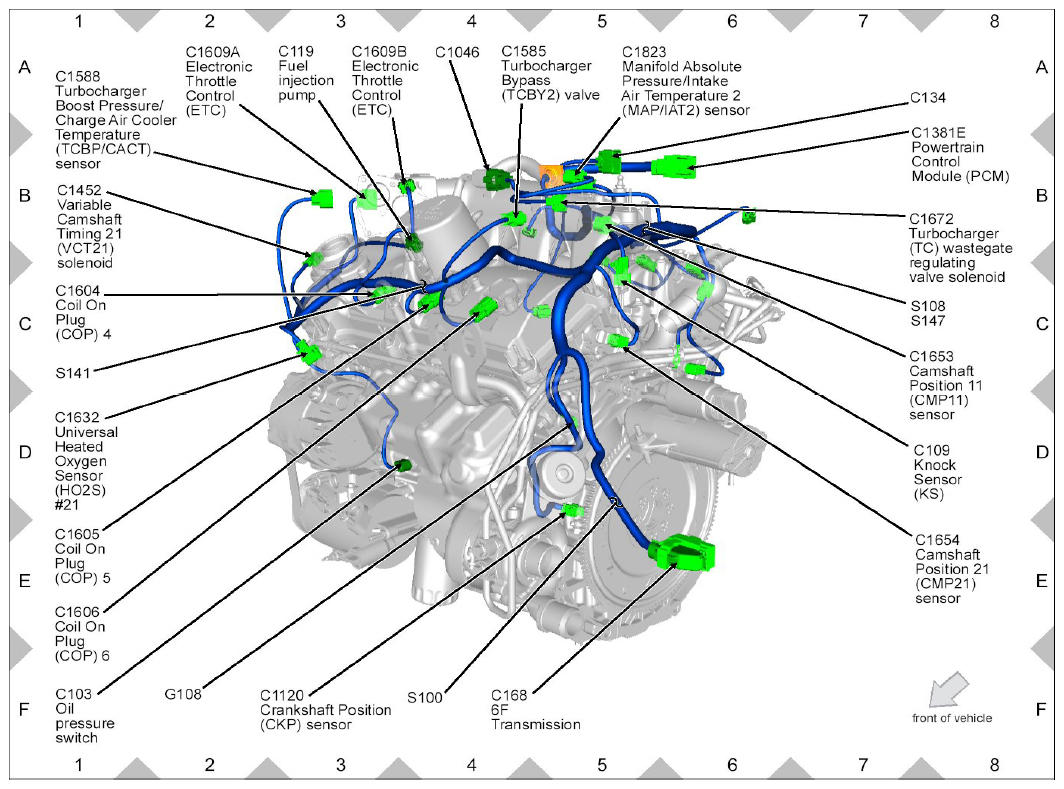

Fig 7: Engine Wiring Harness Connectors Location (1 Of 4)
G09081084Courtesy of FORD MOTOR CO.

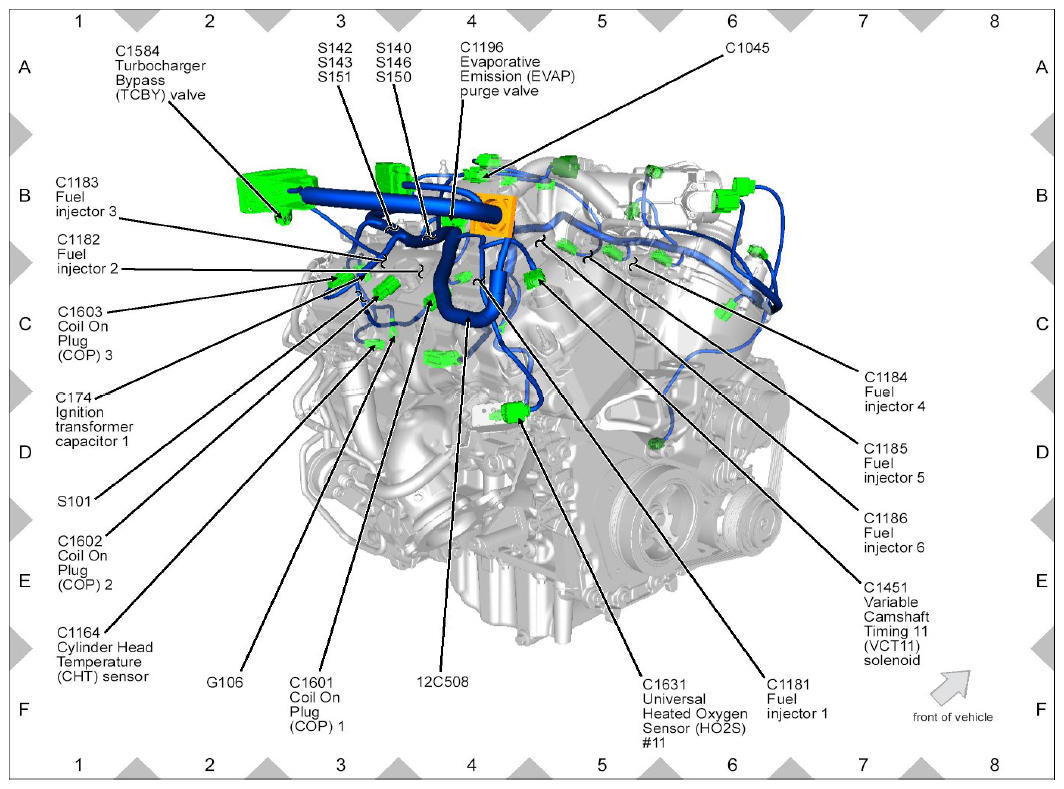

Fig 8: Engine Wiring Harness Connectors Location (2 Of 4)
G09081085Courtesy of FORD MOTOR CO.

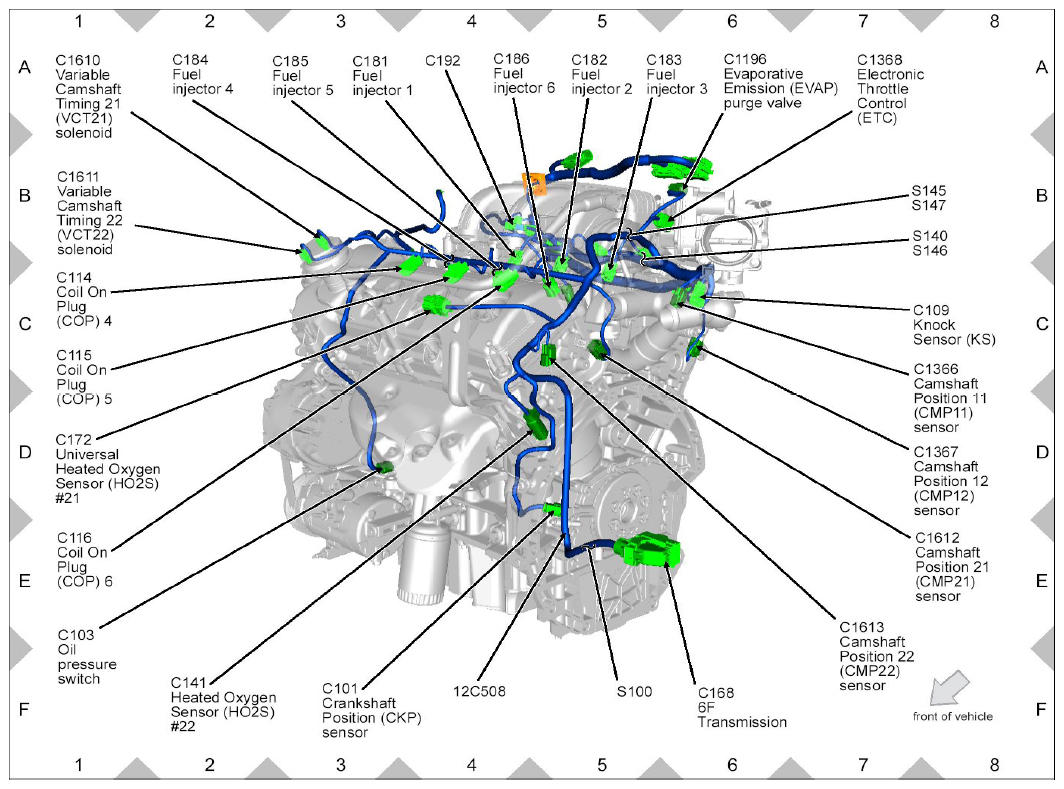

Fig 9: Engine Wiring Harness Connectors Location (3 Of 4)
G09081086Courtesy of FORD MOTOR CO.

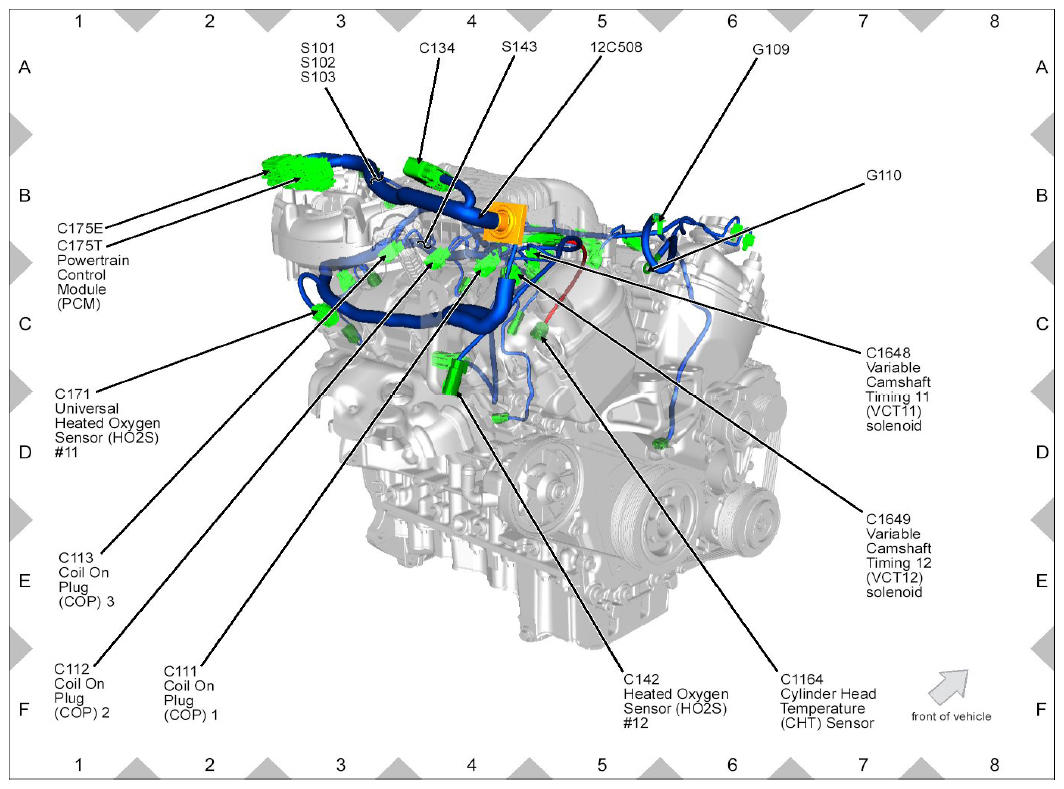

Fig 10: Engine Wiring Harness Connectors Location (4 Of 4)
G09081087Courtesy of FORD MOTOR CO.

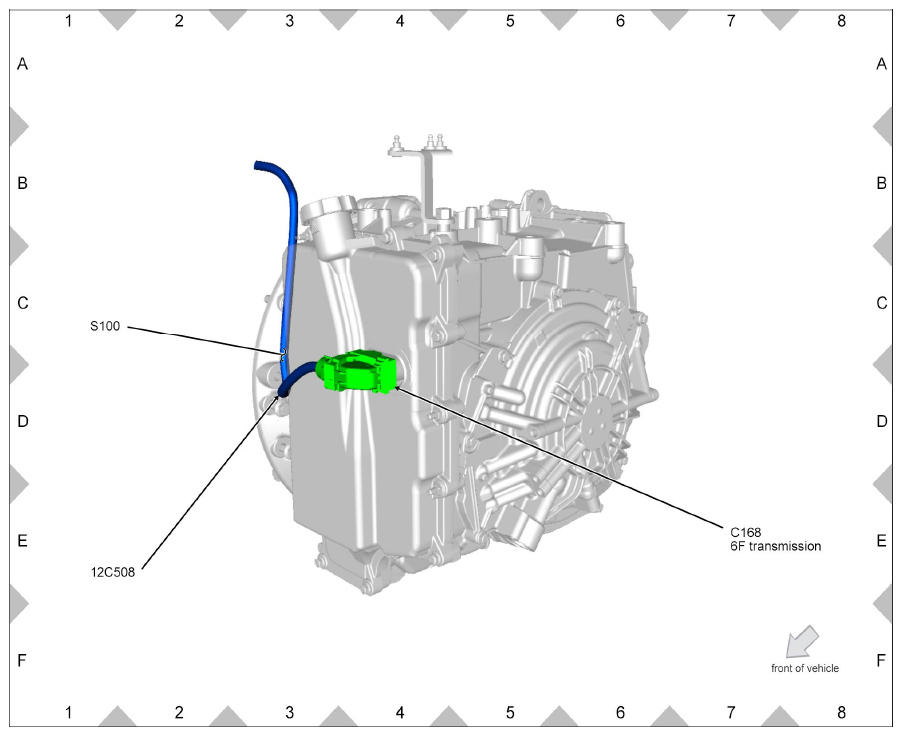

Fig 11: Transmission Wiring Harness Connectors Location
G09081088Courtesy of FORD MOTOR CO.

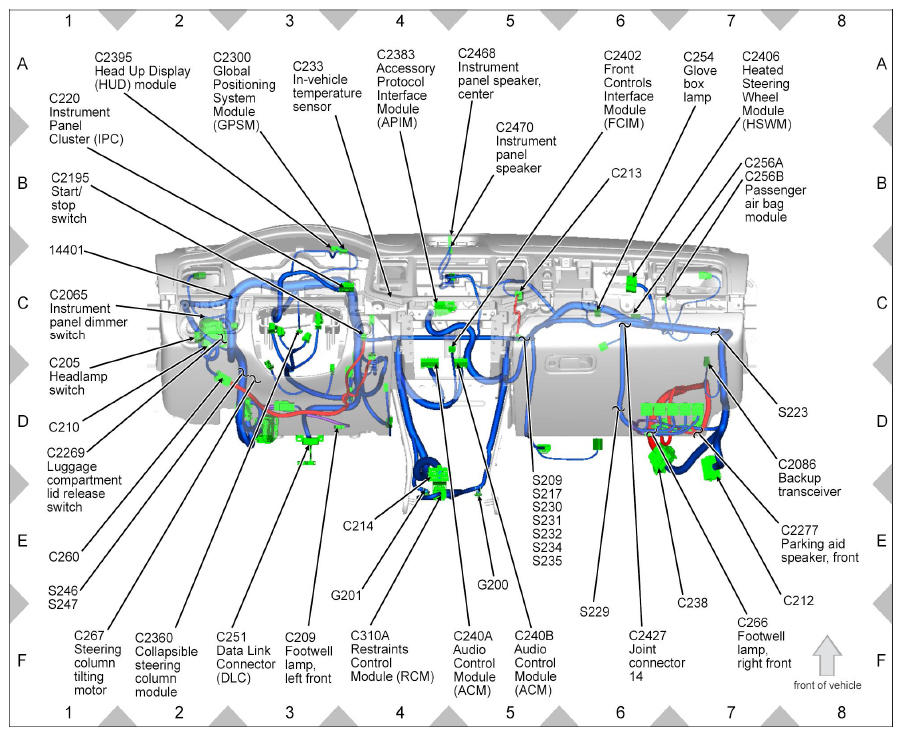

Fig 12: Dash Board Wiring Harness Connectors Location (Front Side) (1 Of 2)
G09081089Courtesy of FORD MOTOR CO.

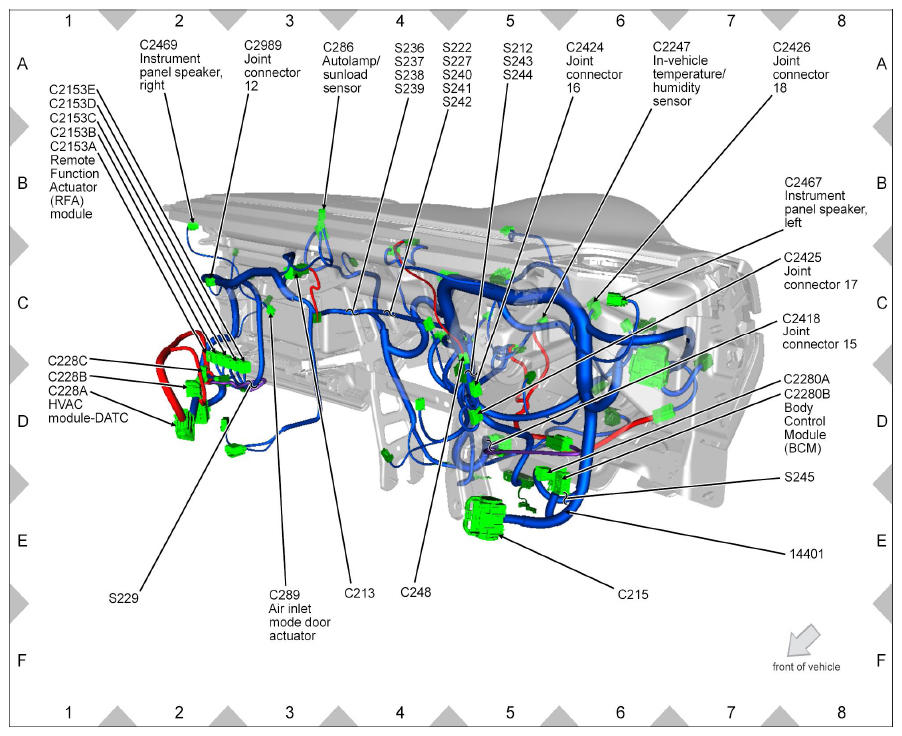

Fig 13: Dash Board Wiring Harness Connectors Location (Front Side) (2 Of 2)
G09081090Courtesy of FORD MOTOR CO.

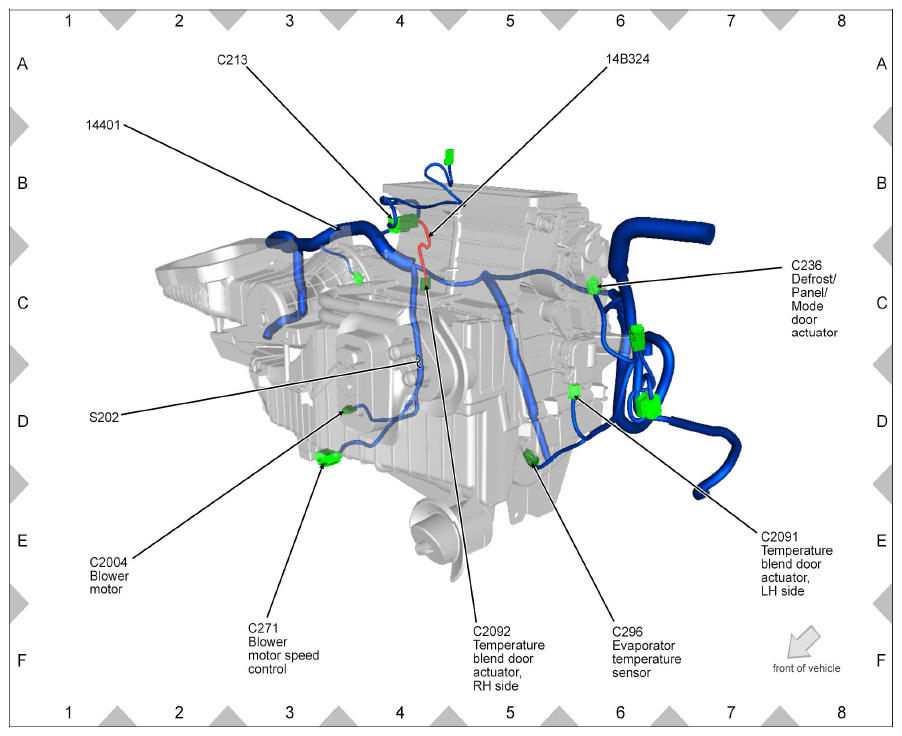

Fig 14: Blower Motor Control Module Wiring Harness Connectors Location
G09081091Courtesy of FORD MOTOR CO.

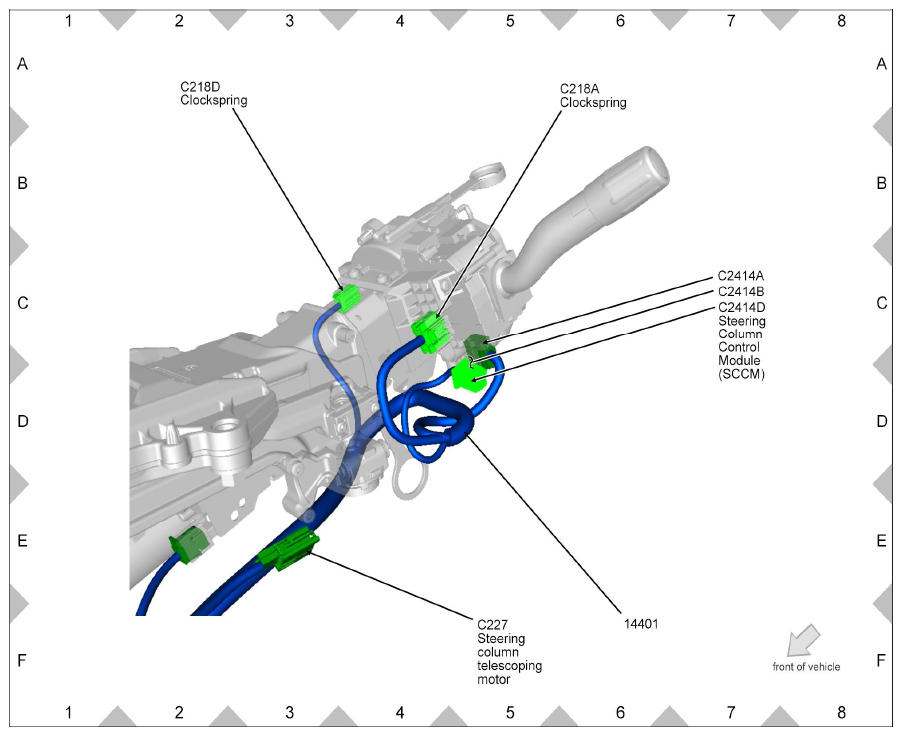

Fig 15: Steering Column Control Module Wiring Harness Connectors Location
G09081092Courtesy of FORD MOTOR CO.

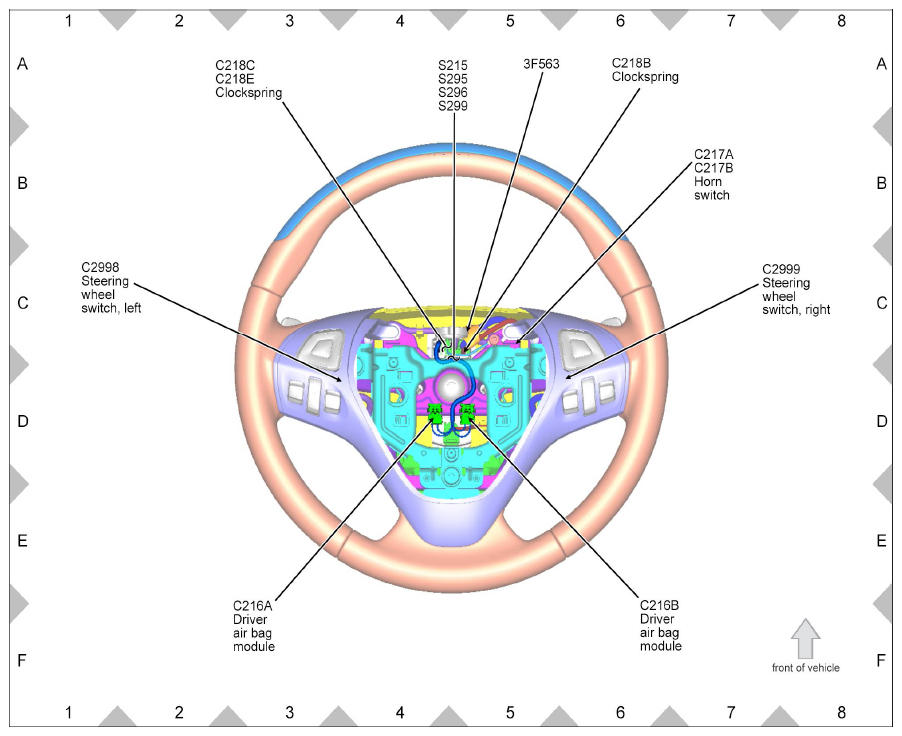

Fig 16: Steering Wheel Wiring Harness Connectors Location
G09081093Courtesy of FORD MOTOR CO.

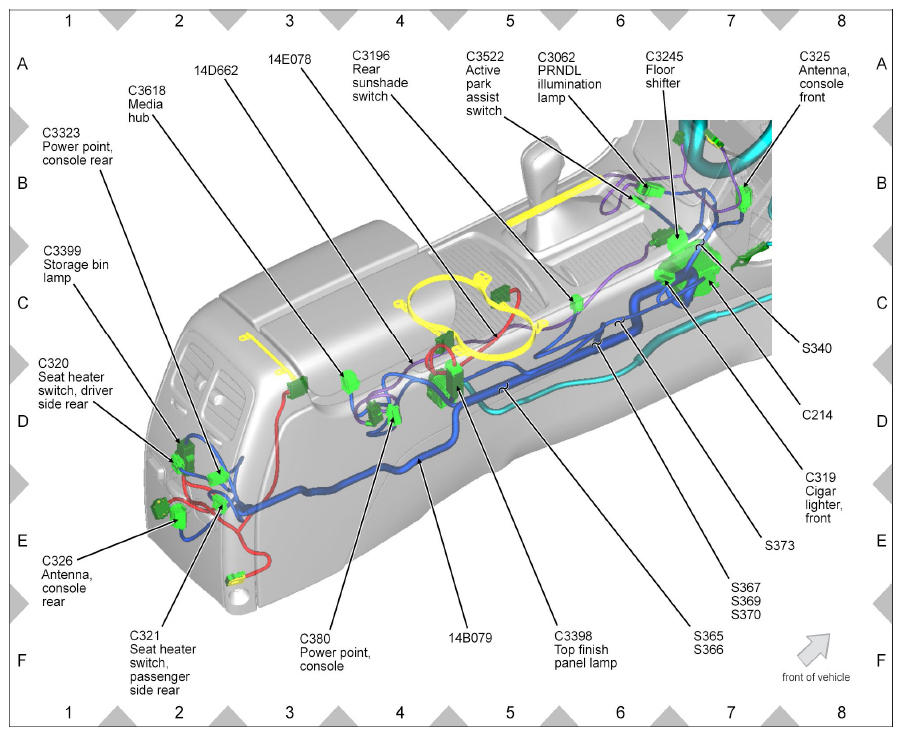

Fig 17: Center Console Wiring Harness Connectors Location
G09081094Courtesy of FORD MOTOR CO.

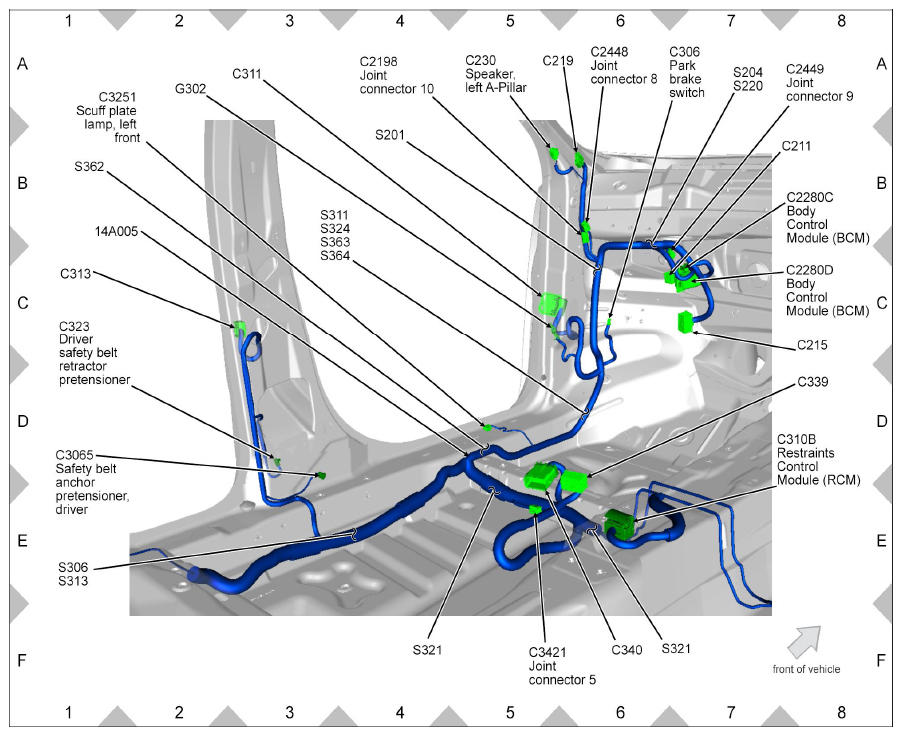

Fig 18: LH Front Compartment Wiring Harness Connectors Location
G09081095Courtesy of FORD MOTOR CO.

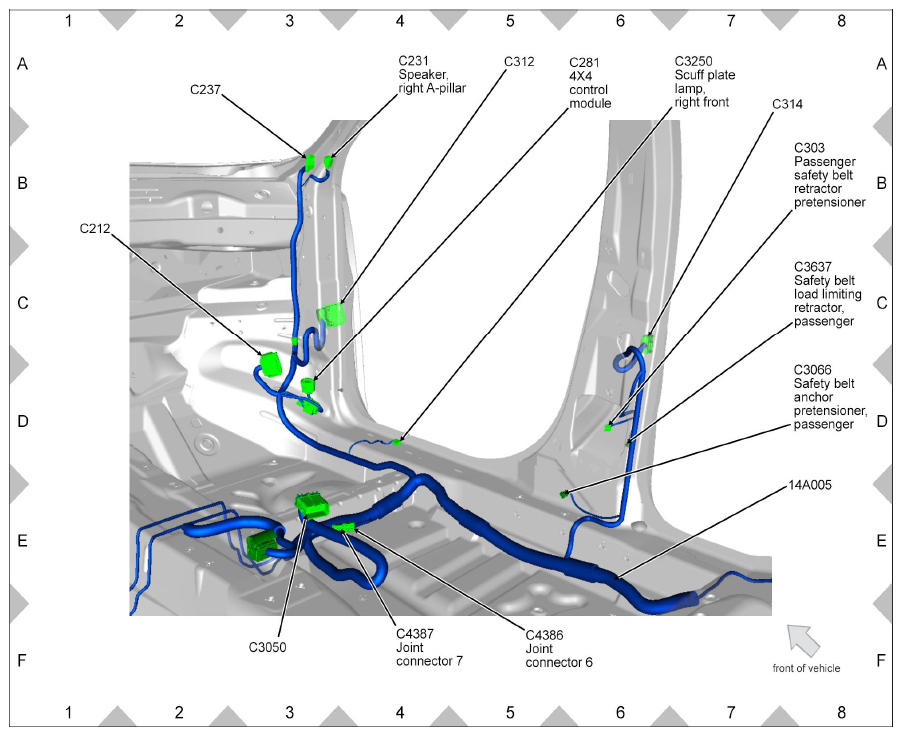

Fig 19: RH Front Compartment Wiring Harness Connectors Location
G09081096Courtesy of FORD MOTOR CO.

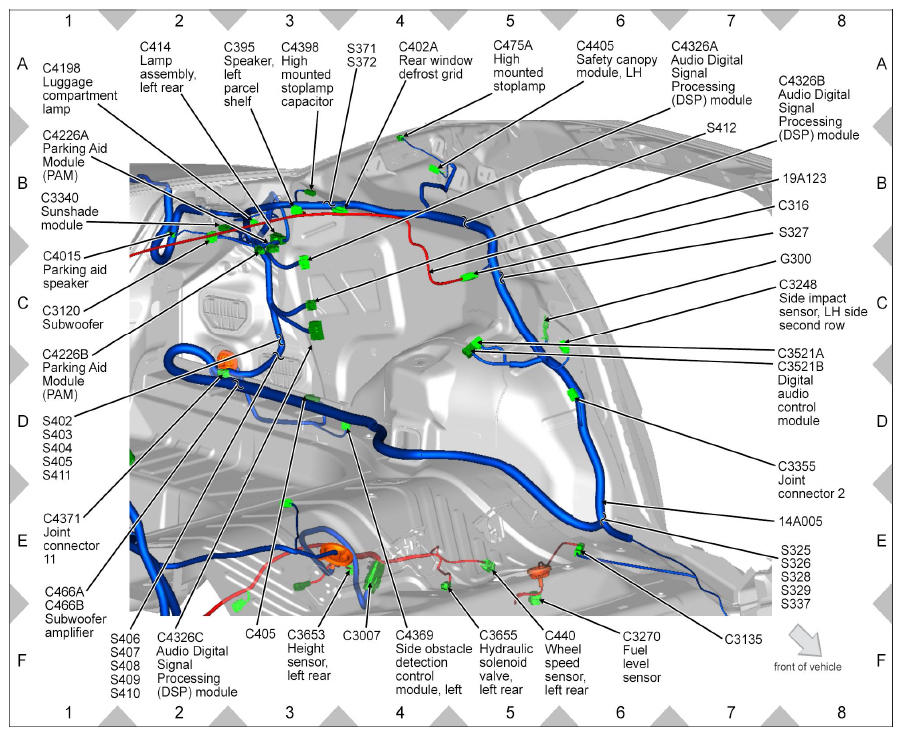

Fig 20: LH Rear Compartment Wiring Harness Connectors Location
G09081097Courtesy of FORD MOTOR CO.

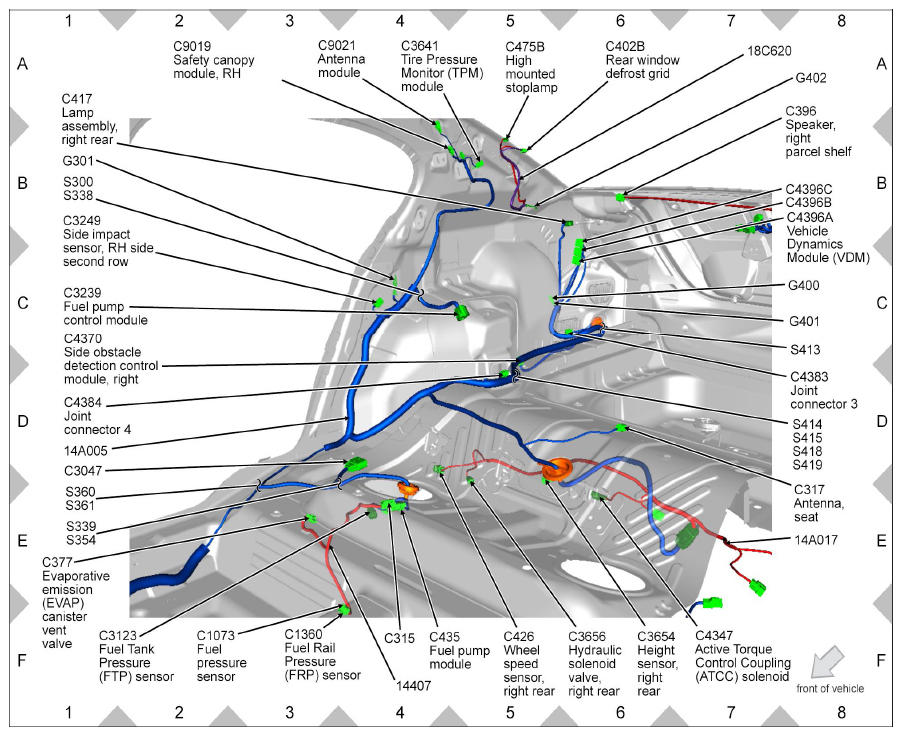

Fig 21: RH Rear Compartment Wiring Harness Connectors Location
G09081098Courtesy of FORD MOTOR CO.

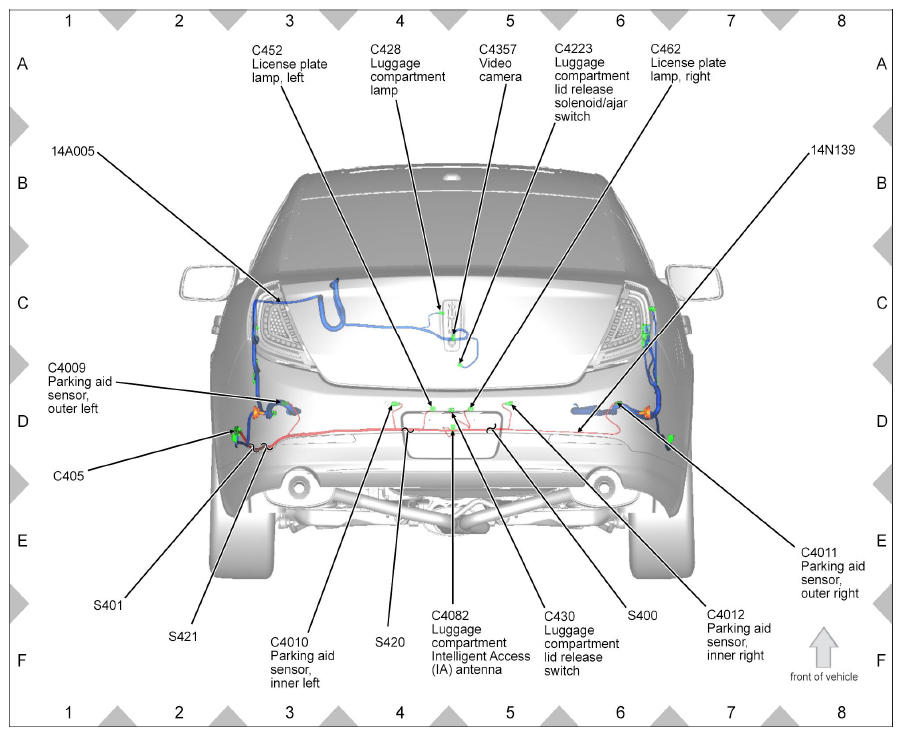

Fig 22: Luggage Compartment Wiring Harness Connectors Location
G09081099Courtesy of FORD MOTOR CO.

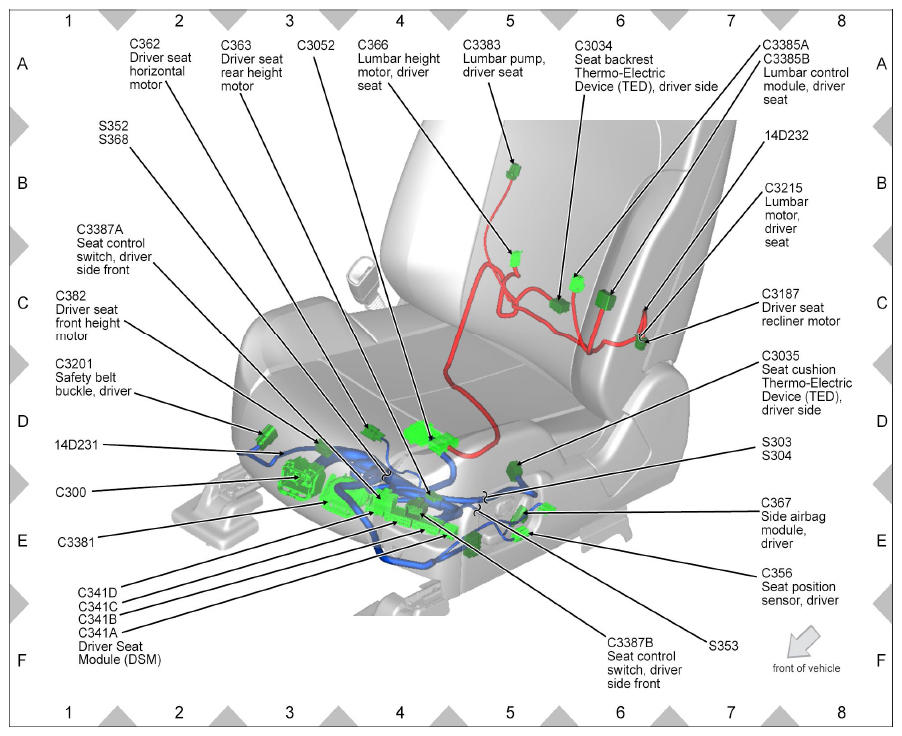

Fig 23: Driver Seat Wiring Harness Connectors Location
G09081100Courtesy of FORD MOTOR CO.

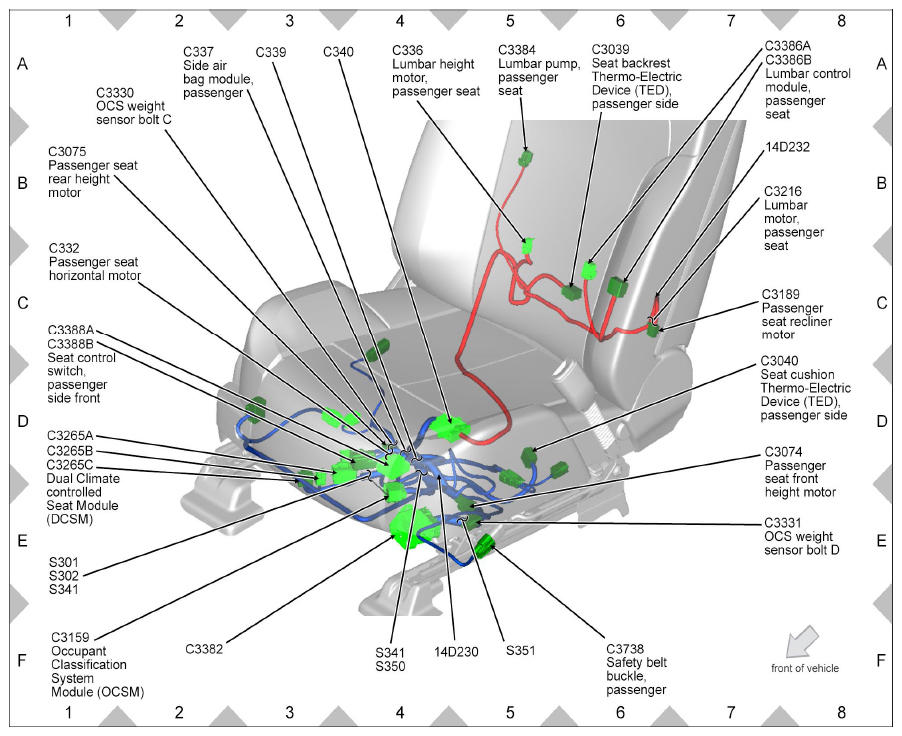

Fig 24: Front Passenger Seat Wiring Harness Connectors Location
G09081101Courtesy of FORD MOTOR CO.

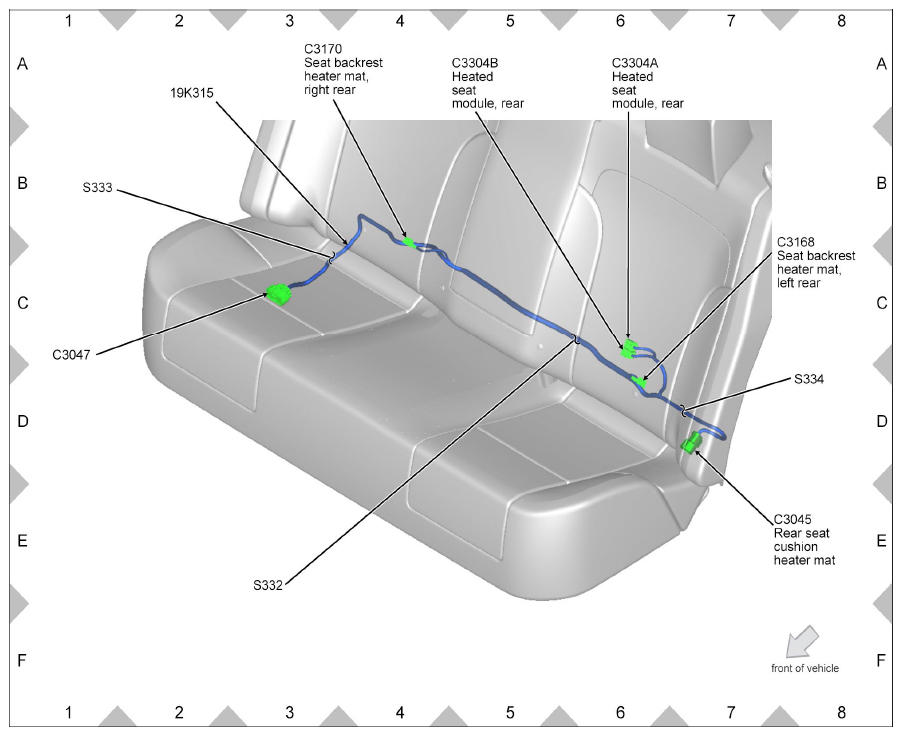

Fig 25: Rear Passenger Seat Wiring Harness Connectors Location
G09081102Courtesy of FORD MOTOR CO.

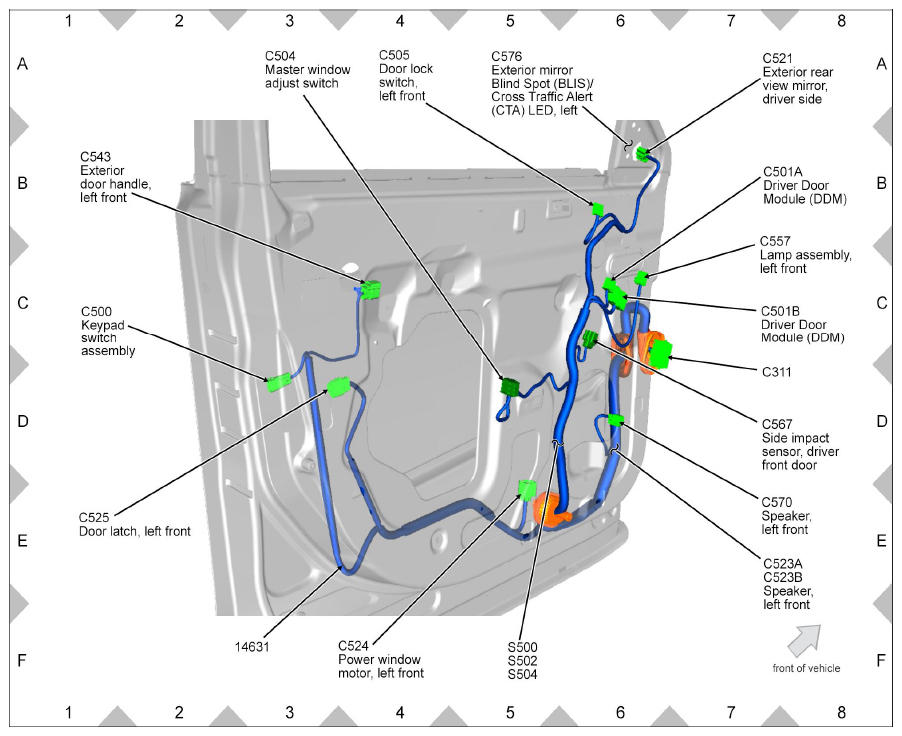

Fig 26: LH Front Door Wiring Harness Connectors Location
G09081103Courtesy of FORD MOTOR CO.

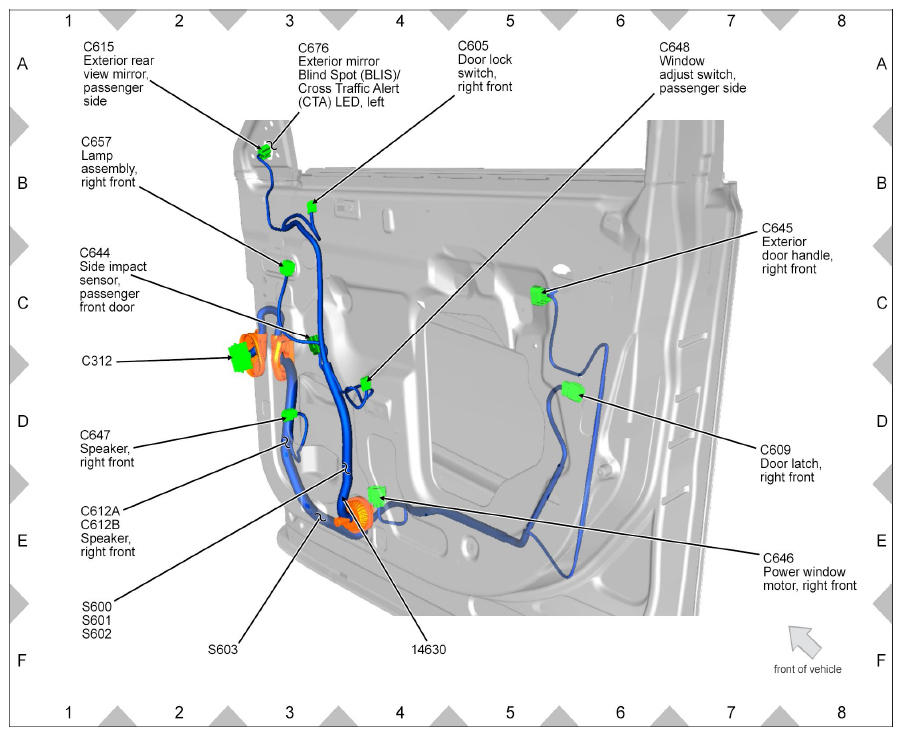

Fig 27: RH Front Door Wiring Harness Connectors Location
G09081104Courtesy of FORD MOTOR CO.

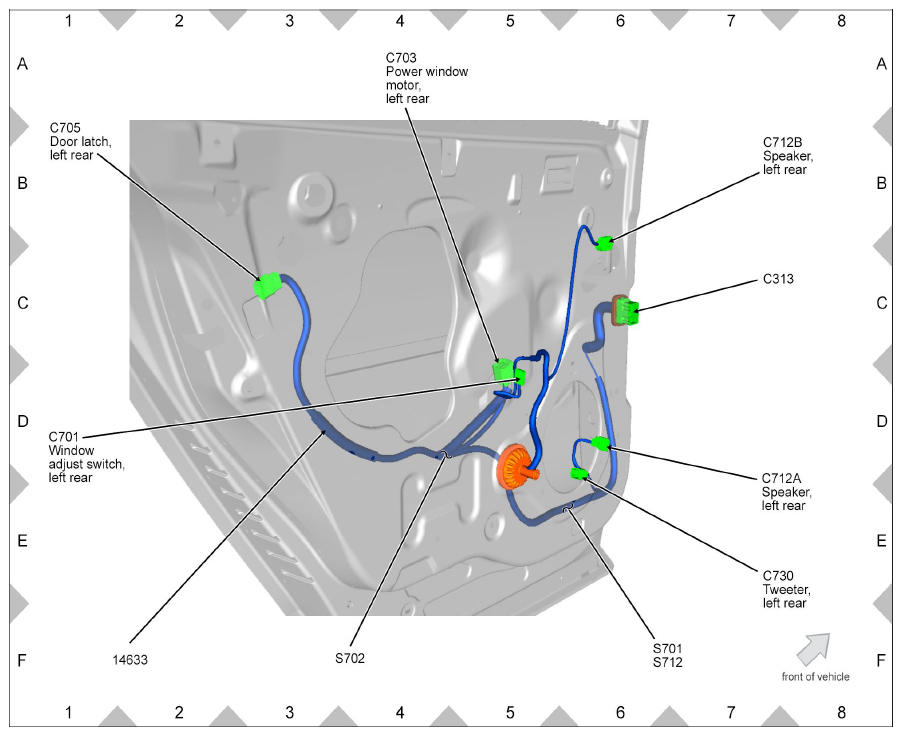

Fig 28: LH Rear Door Wiring Harness Connectors Location
G09081105Courtesy of FORD MOTOR CO.

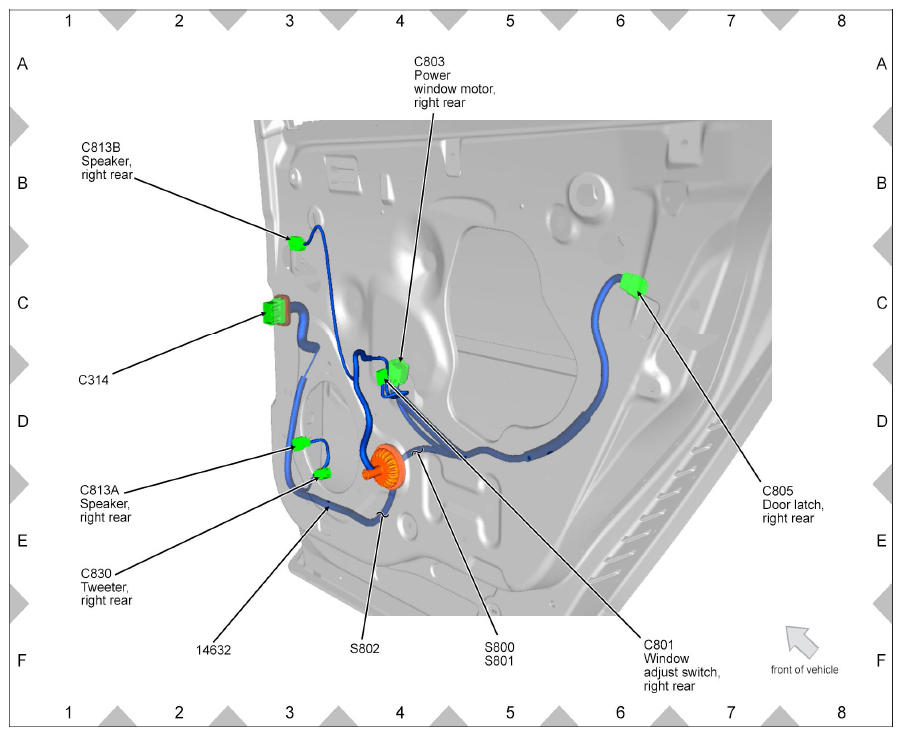

Fig 29: RH Rear Door Wiring Harness Connectors Location
G09081106Courtesy of FORD MOTOR CO.

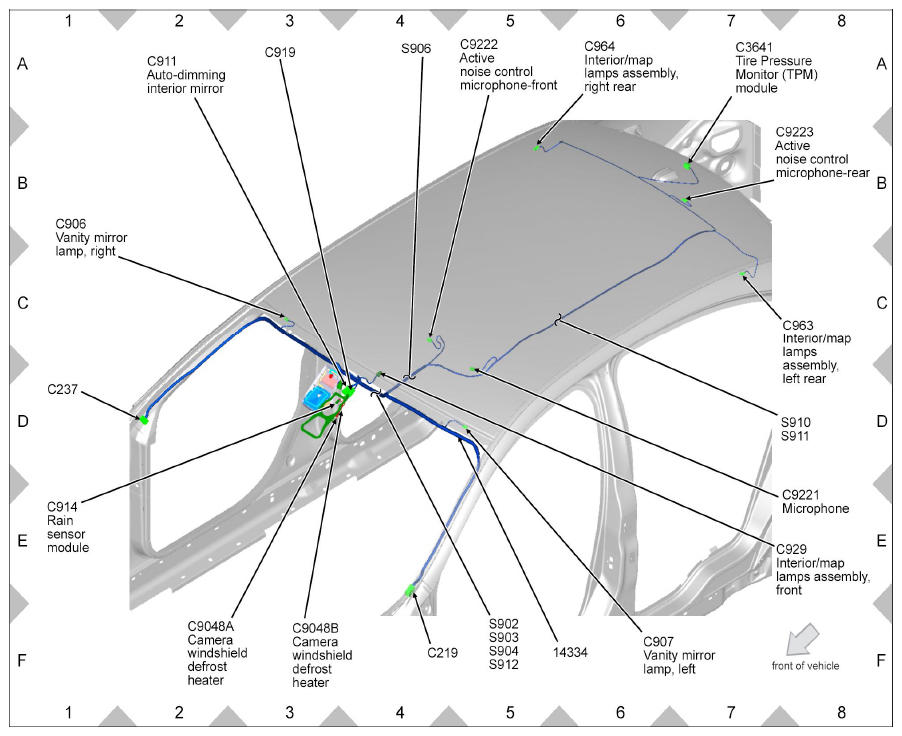

Fig 30: Roof Wiring Harness Connectors Location (1 Of 2)
G09081107Courtesy of FORD MOTOR CO.

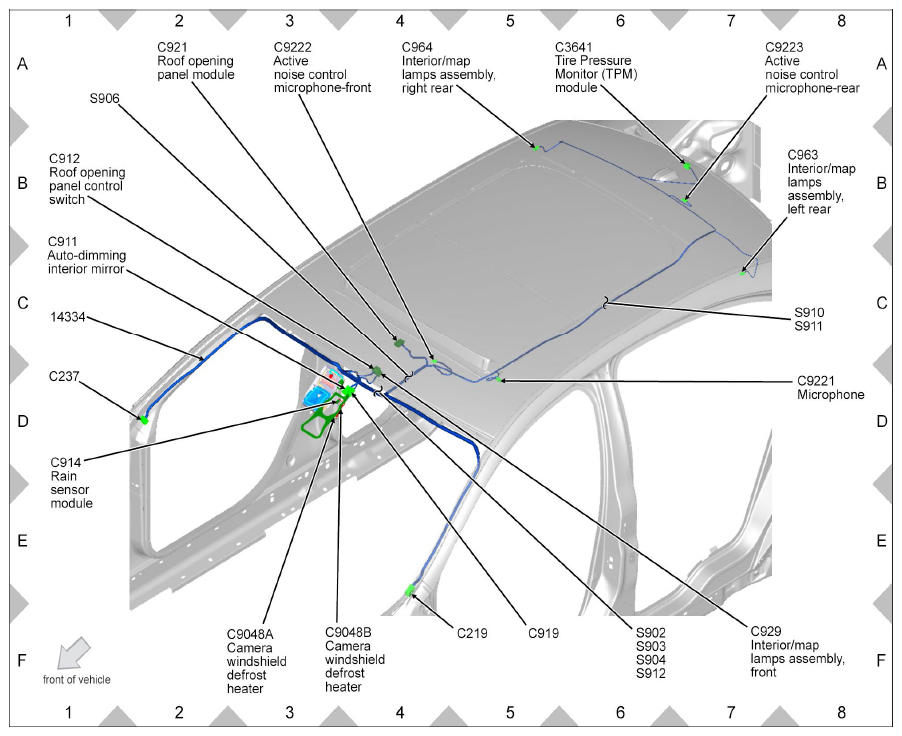

Fig 31: Roof Wiring Harness Connectors Location (2 Of 2)
G09081108Courtesy of FORD MOTOR CO.
