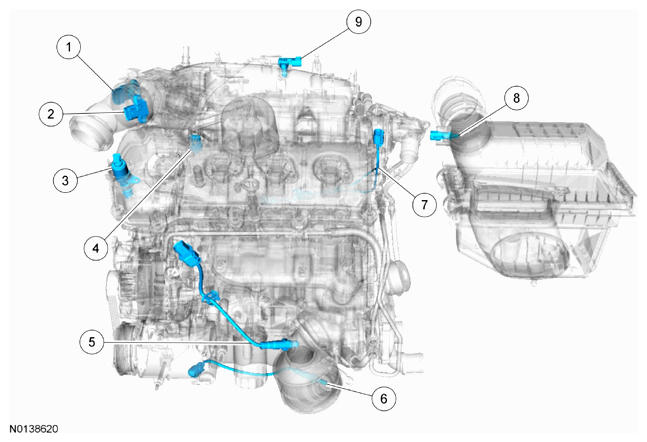

Front Engine Sensor Locations - 3.5L GTDI

G08660158

Item	Description	Comments
1	TP sensor	-
2	TCBP/CACT sensor	-
3	LH VCT oil control solenoid	-
4	FRP sensor	-
5	LH HO2S	-
6	LH CMS	-
7	KS	-
8	MAF sensor	-
9	MAP/IAT2 sensor	-
