Powertrain Control Module (PCM): Notes
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

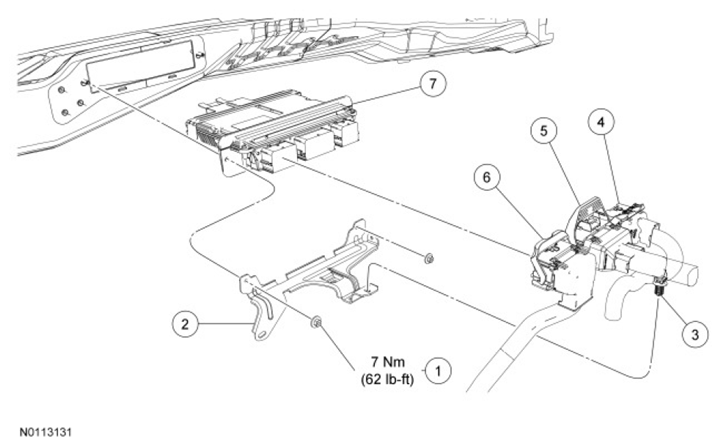

| Item | Part Number | Description |
|---|---|---|
| 1 | W806769 | PCM wiring harness support bracket nut (2 required) |
| 2 | 14A206 | PCM wiring harness support bracket |
| - | Wiring harness retainer (part of 12C508) | |
| 4 | - | PCM electrical connector (part of 15525) |
| 5 | - | PCM electrical connector (part of 12C508) |
| 6 | - | PCM electrical connector (part of 12A581) |
| 7 | 12A650 | PCM |
