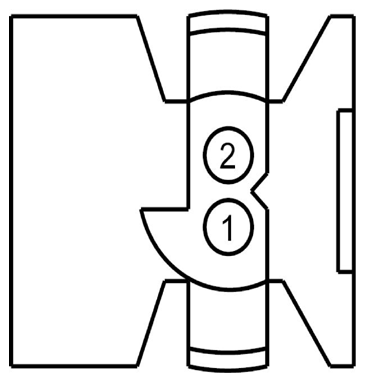

Driver Air Bag Module Connector End View (C216A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CR101 (WH) | 20 | CTRL MOD. - AIR BAG DRIVER 1 FEED | |
| 2 | RR101 (BU) | 20 | CTRL MOD. - AIR BAG DRIVER 1 RTN |

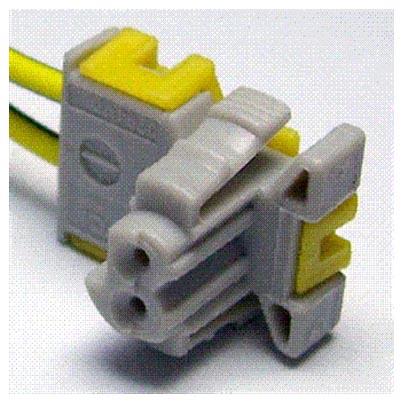

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1223 | Service Part Number: BU2Z-14S411-BFA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses
|
