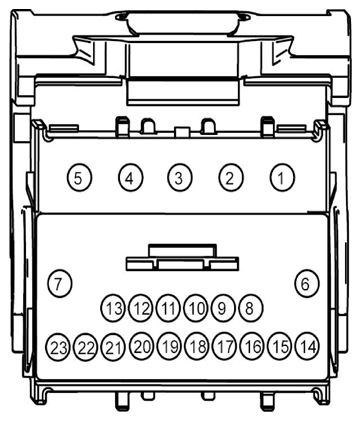

| 1 |
CCD05 (GN-BU) |
18 |
CTRL MOD. - CDC # VALVE DAMPER REAR LEFT + |
|
| 2 |
RCD05 (YE-BU) |
18 |
CTRL MOD. - CDC # VALVE DAMPER REAR LEFT - |
|
| 3 |
* |
* |
Not Used |
|
| 4 |
RCD06 (BU-BN) |
18 |
CTRL MOD. - CDC # VALVE DAMPER REAR RIGHT - |
|
| 5 |
CCD06 (VT-GY) |
18 |
CTRL MOD. - CDC # VALVE DAMPER REAR RIGHT + |
|
| 6 |
GD348 (BK-YE) |
14 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT (BC3T) |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 9 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
* |
* |
Not Used |
|
| 12 |
VCD12 (VT-WH) |
22 |
SENSOR - SUSPENSION VERTICAL POSITION REAR LEFT |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
* |
* |
Not Used |
|
| 15 |
RCD23 (WH-BN) |
22 |
CTRL MOD. - CDC # SENSORS 2 - |
|
| 16 |
* |
* |
Not Used |
|
| 17 |
* |
* |
Not Used |
|
| 18 |
* |
* |
Not Used |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
| 21 |
* |
* |
Not Used |
|
| 22 |
VCD13 (GN-VT) |
22 |
SENSOR - SUSPENSION VERTICAL POSITION REAR RIGHT |
|
| 23 |
* |
* |
Not Used |
|
