Component Location Views

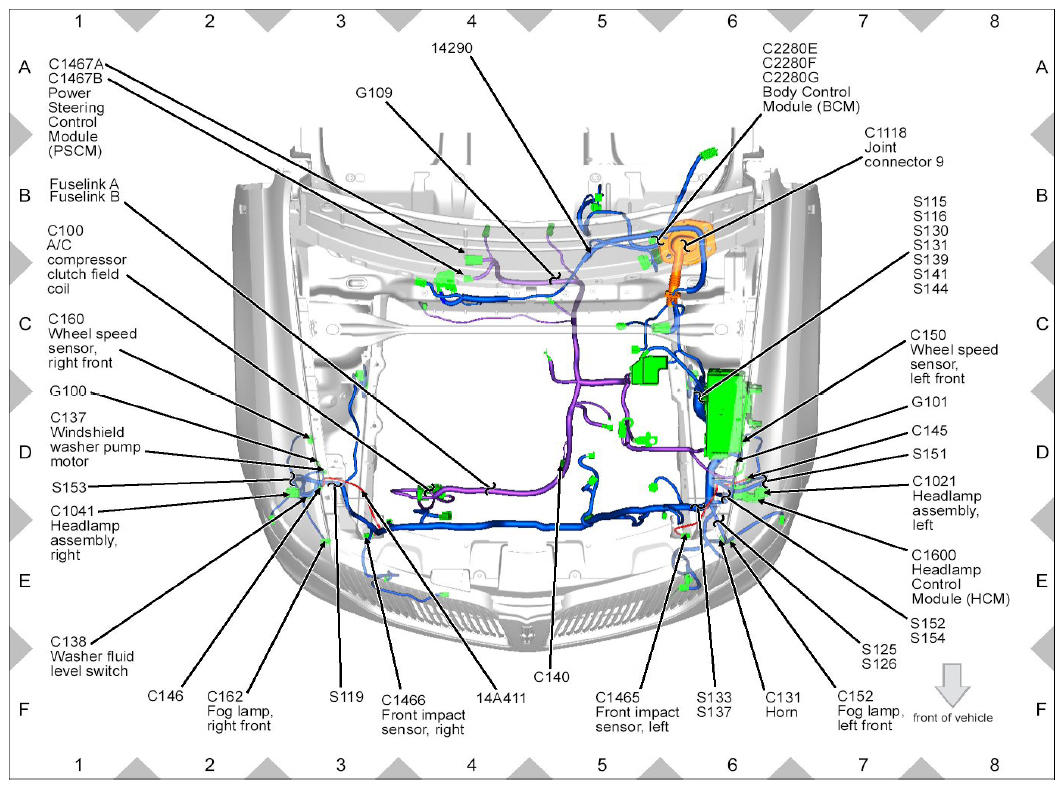

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 3)

G09082983

Courtesy of FORD MOTOR CO.

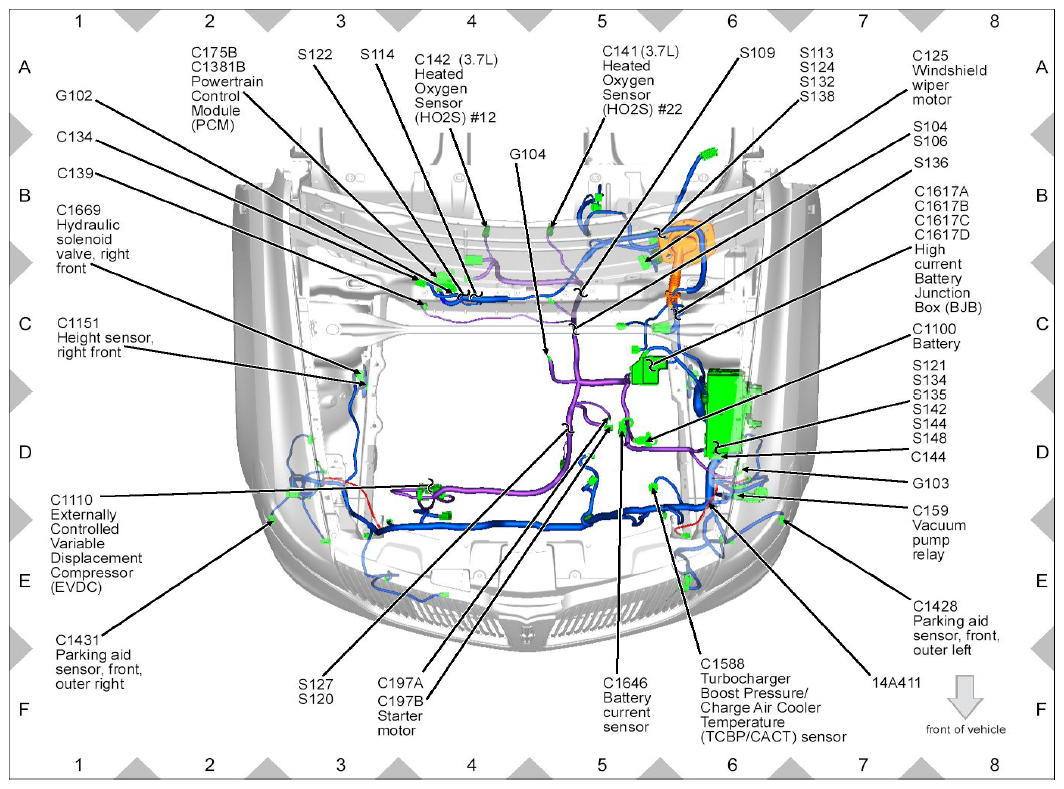

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 3)

G09082984

Courtesy of FORD MOTOR CO.

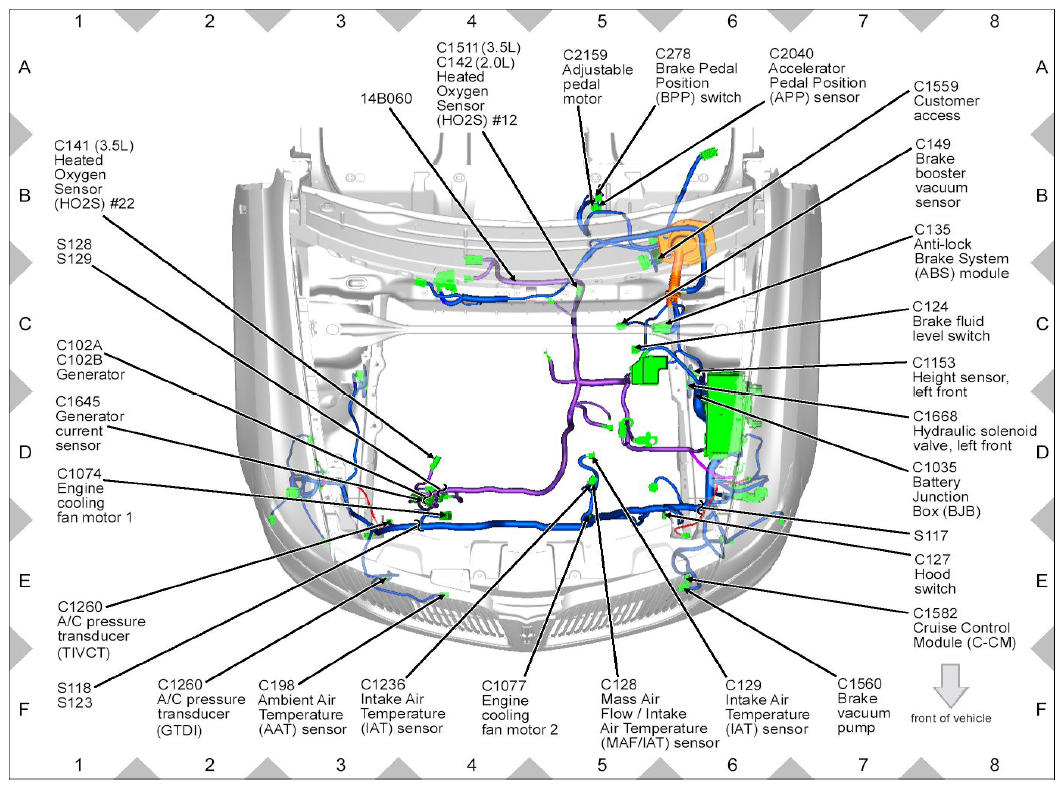

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 3)

G09082985

Courtesy of FORD MOTOR CO.

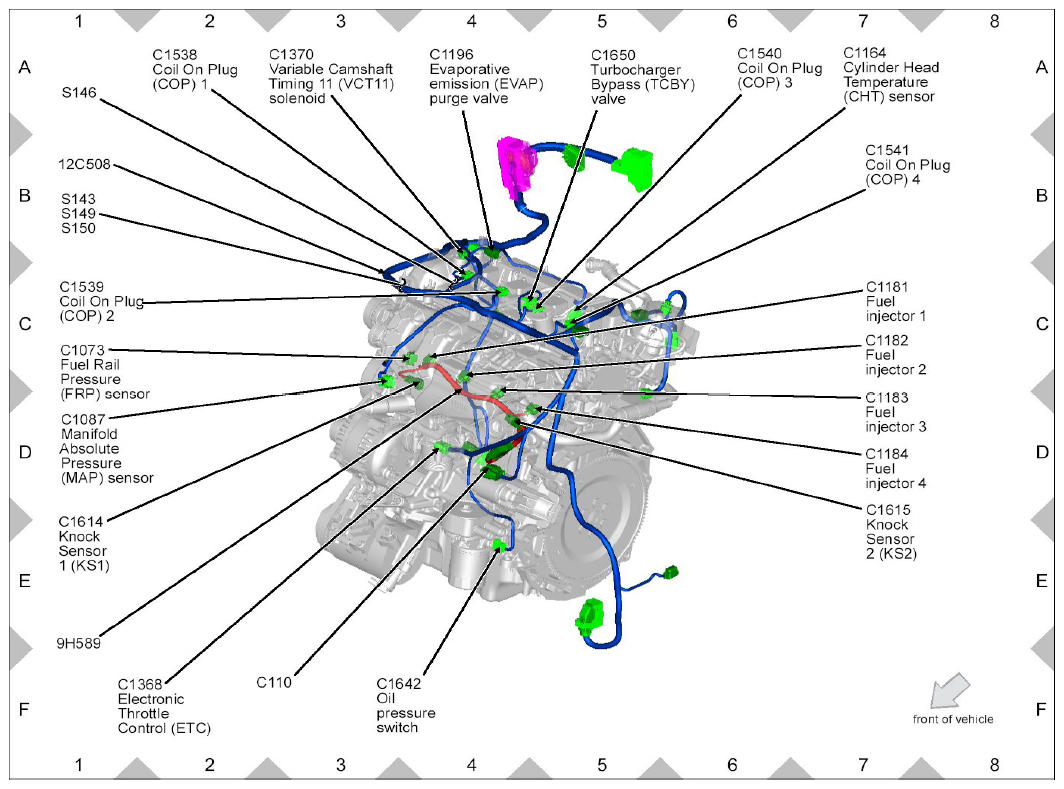

Fig 4: Engine Wiring Harness Connectors Location (1 Of 6)

G09082986

Courtesy of FORD MOTOR CO.

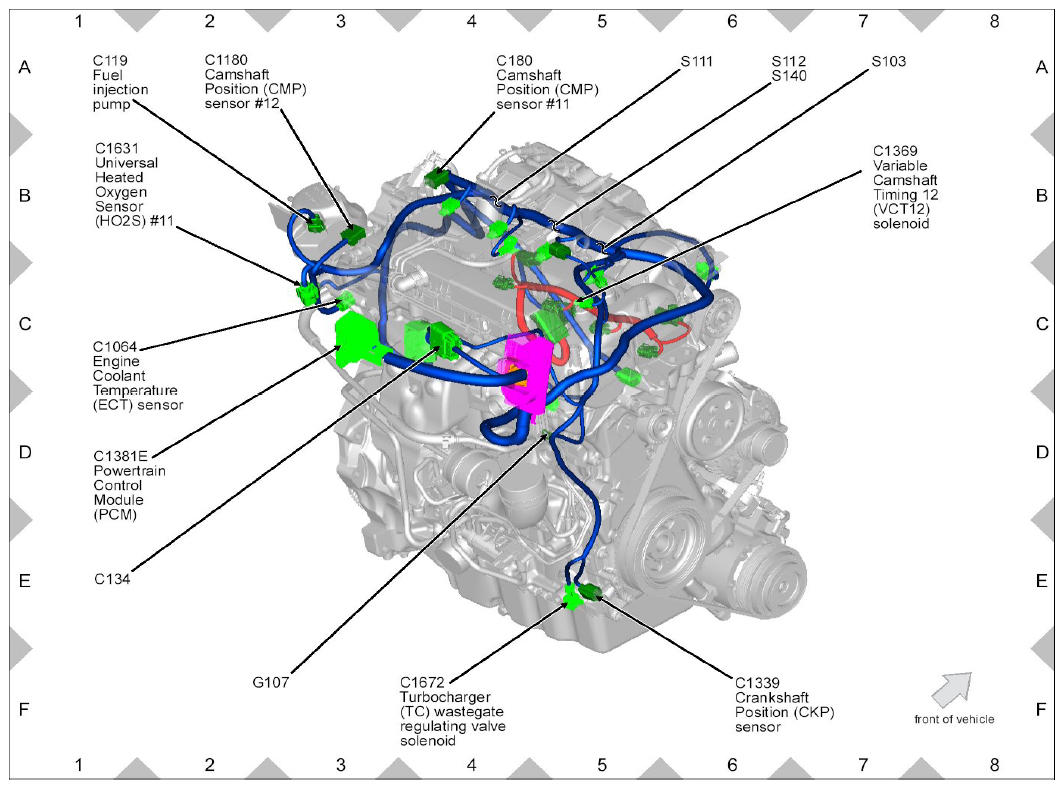

Fig 5: Engine Wiring Harness Connectors Location (2 Of 6)

G09082987

Courtesy of FORD MOTOR CO.

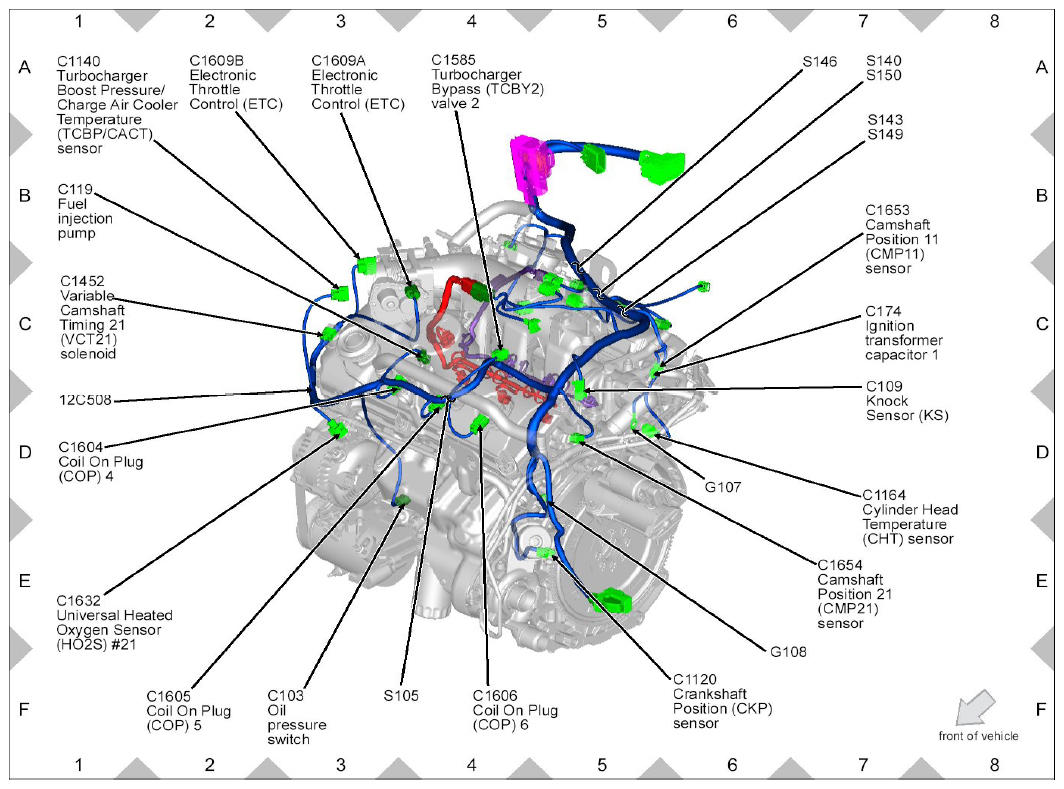

Fig 6: Engine Wiring Harness Connectors Location (3 Of 6)

G09082988

Courtesy of FORD MOTOR CO.

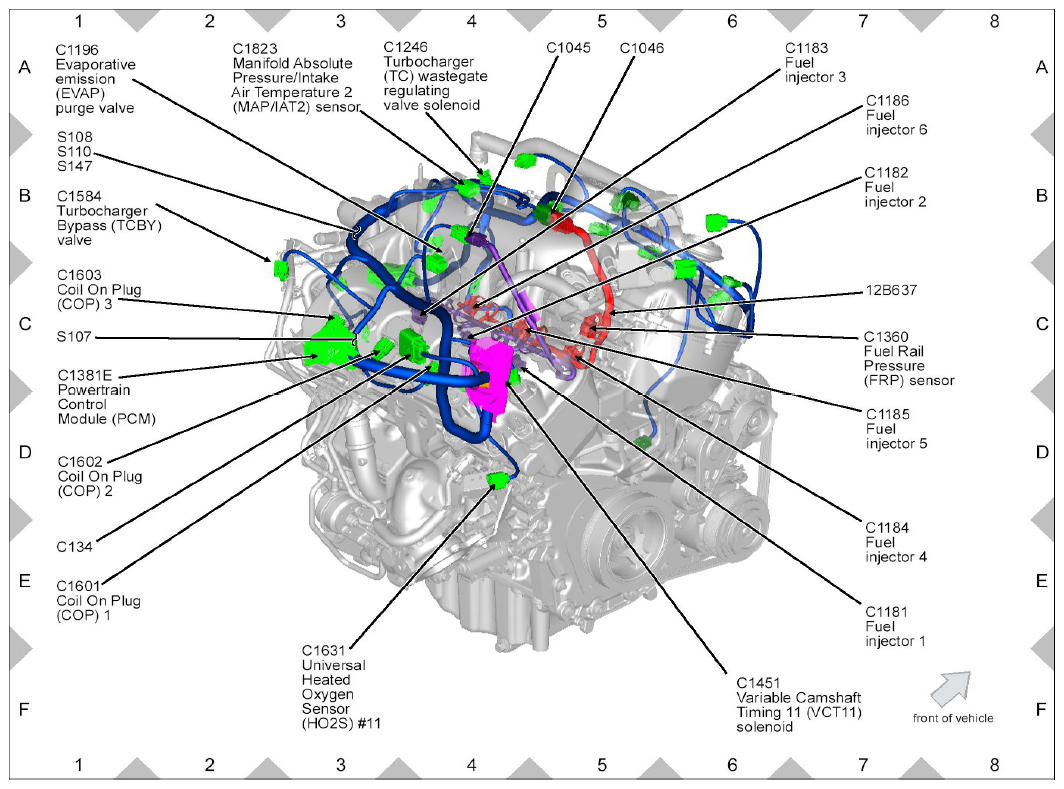

Fig 7: Engine Wiring Harness Connectors Location (4 Of 6)

G09082989

Courtesy of FORD MOTOR CO.

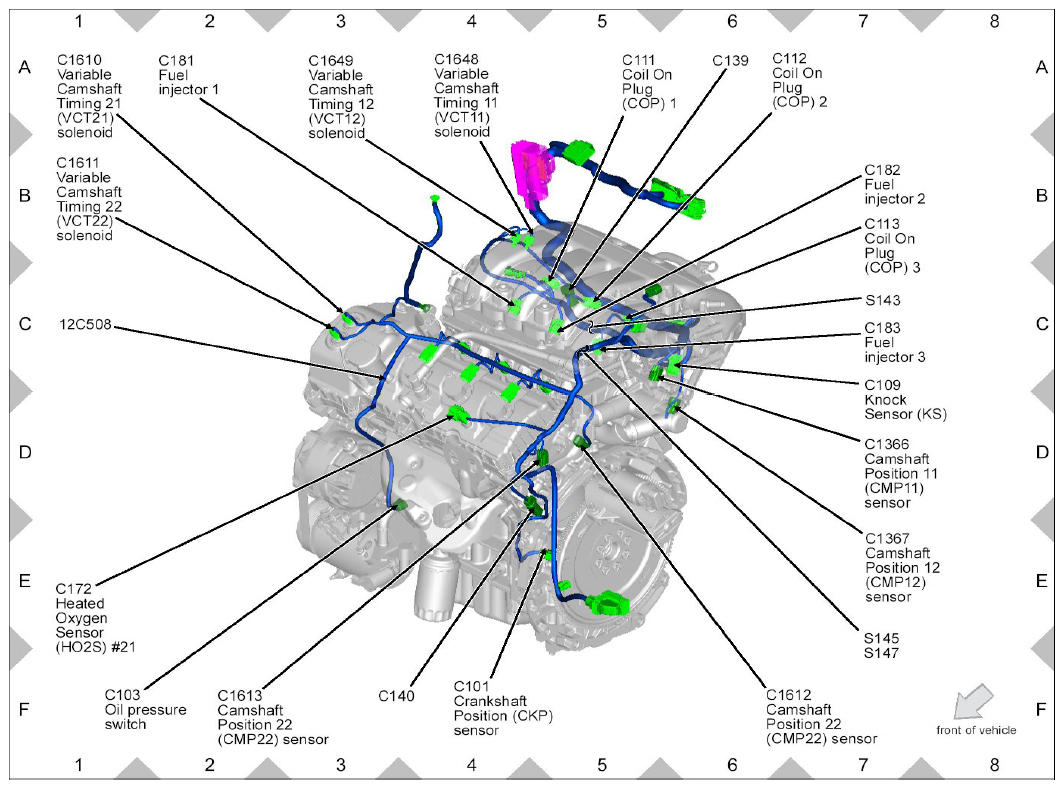

Fig 8: Engine Wiring Harness Connectors Location (5 Of 6)

G09082990

Courtesy of FORD MOTOR CO.

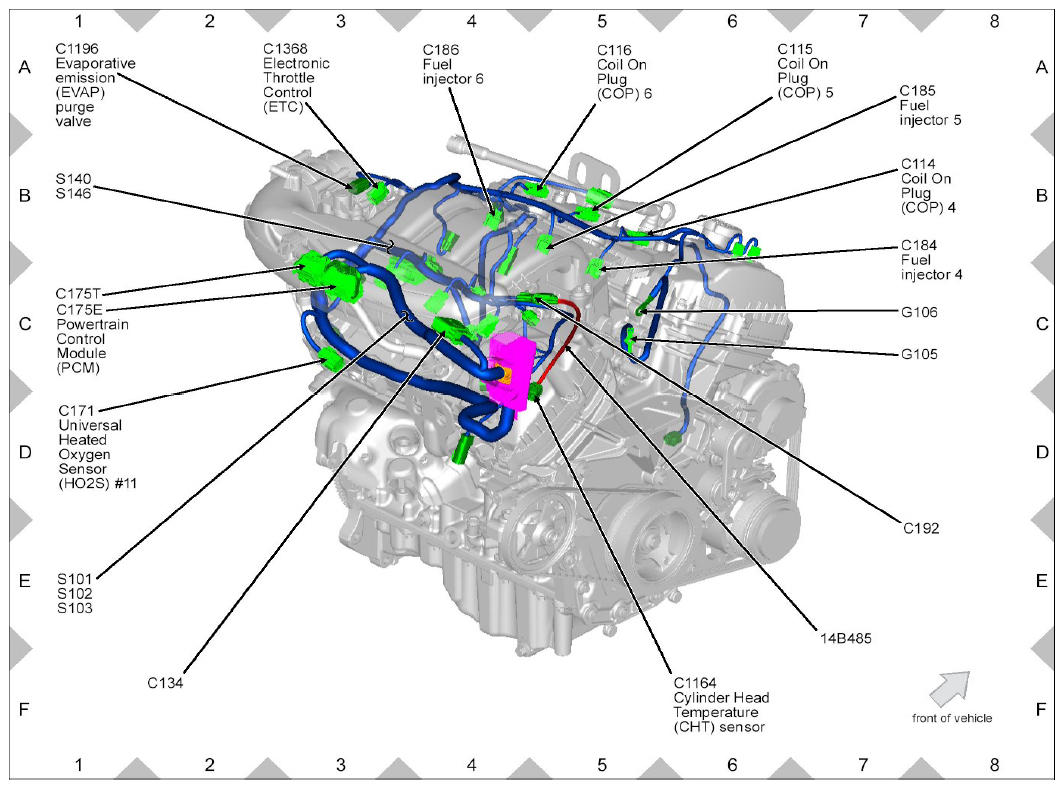

Fig 9: Engine Wiring Harness Connectors Location (6 Of 6)

G09082991

Courtesy of FORD MOTOR CO.

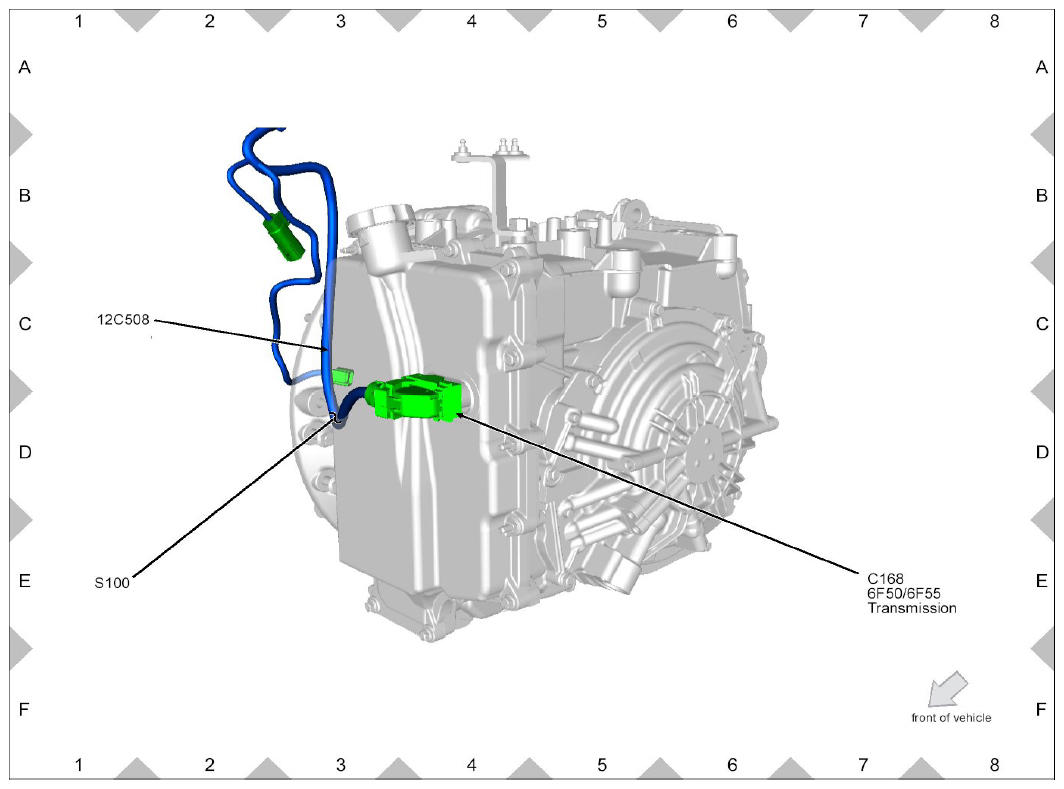

Fig 10: Transmission Wiring Harness Connectors Location (1 Of 2)

G09082992

Courtesy of FORD MOTOR CO.

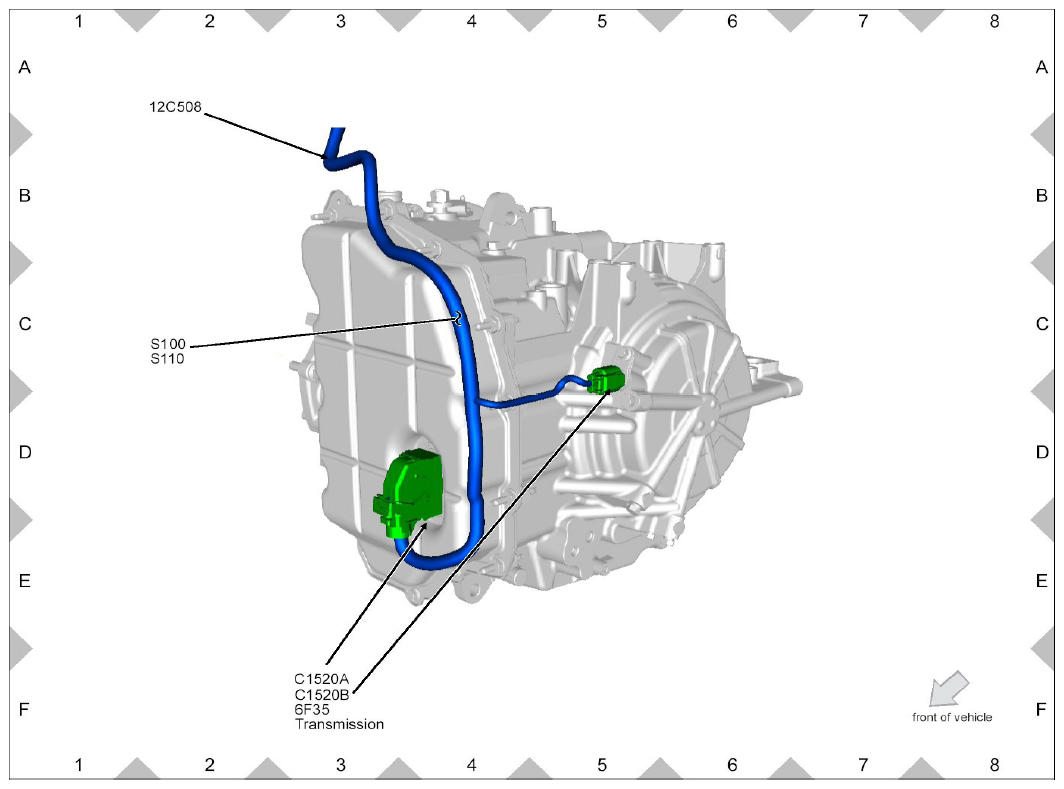

Fig 11: Transmission Wiring Harness Connectors Location (2 Of 2)

G09082993

Courtesy of FORD MOTOR CO.

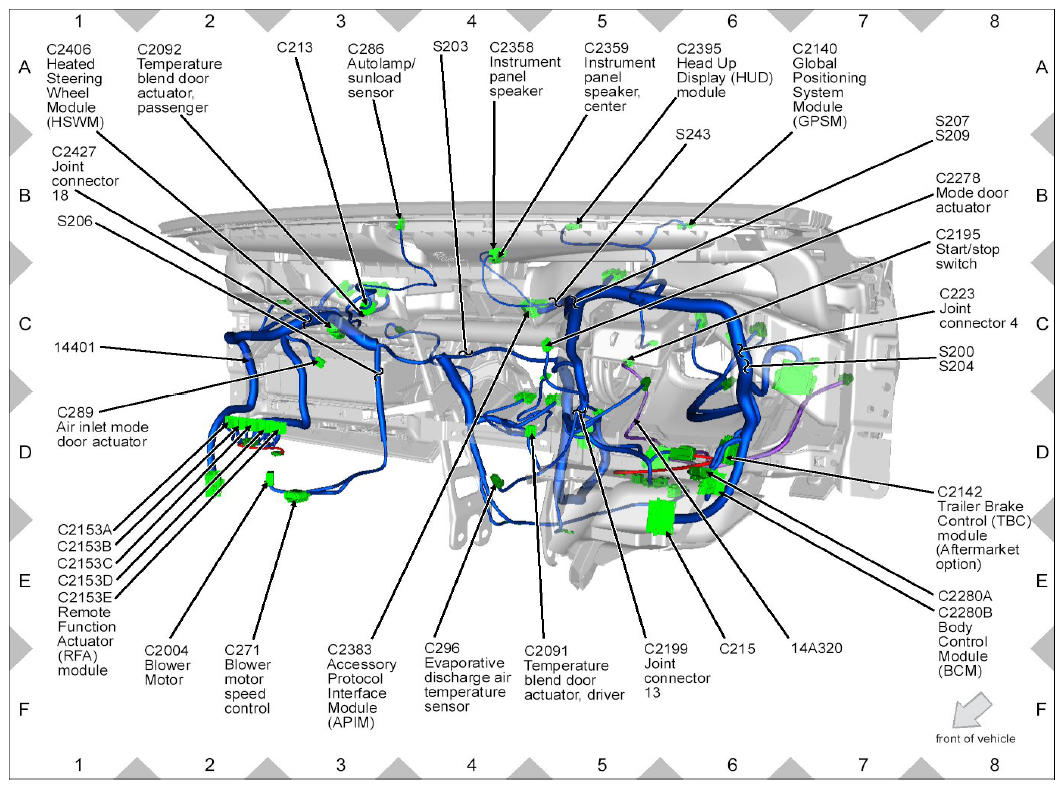

Fig 12: Dash Board Wiring Harness Connectors Location - Front Side (1 Of 2)

G09082994

Courtesy of FORD MOTOR CO.

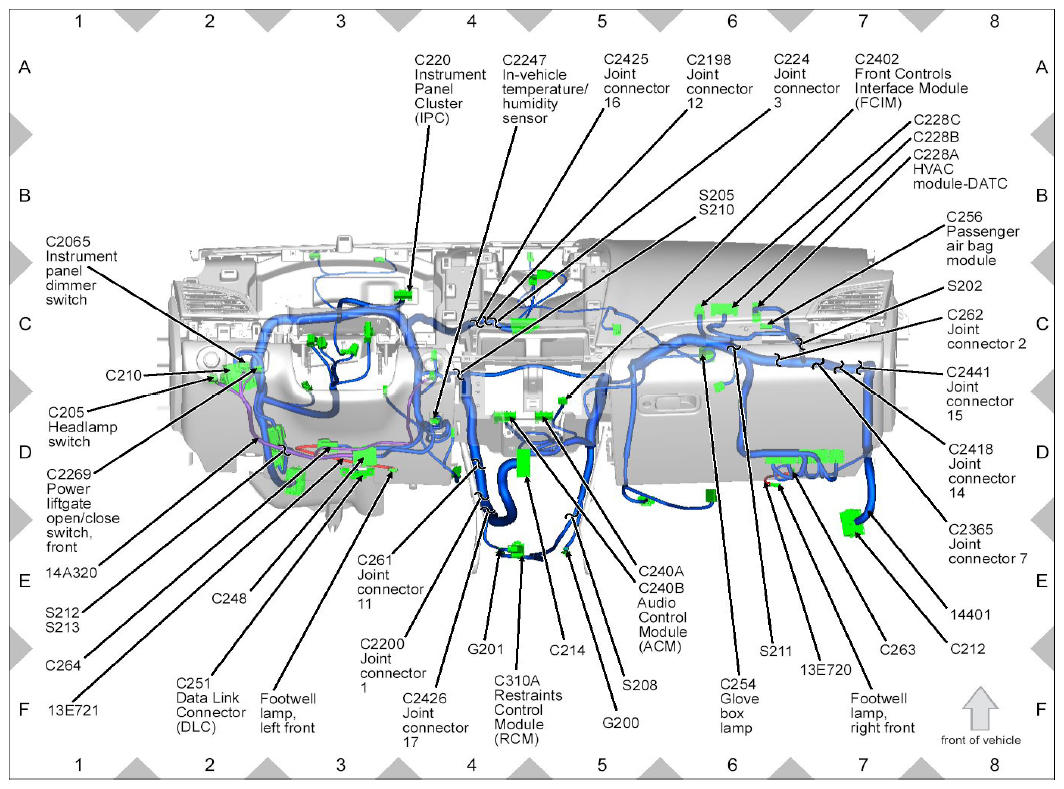

Fig 13: Dash Board Wiring Harness Connectors Location - Front Side (2 Of 2)

G09082995

Courtesy of FORD MOTOR CO.

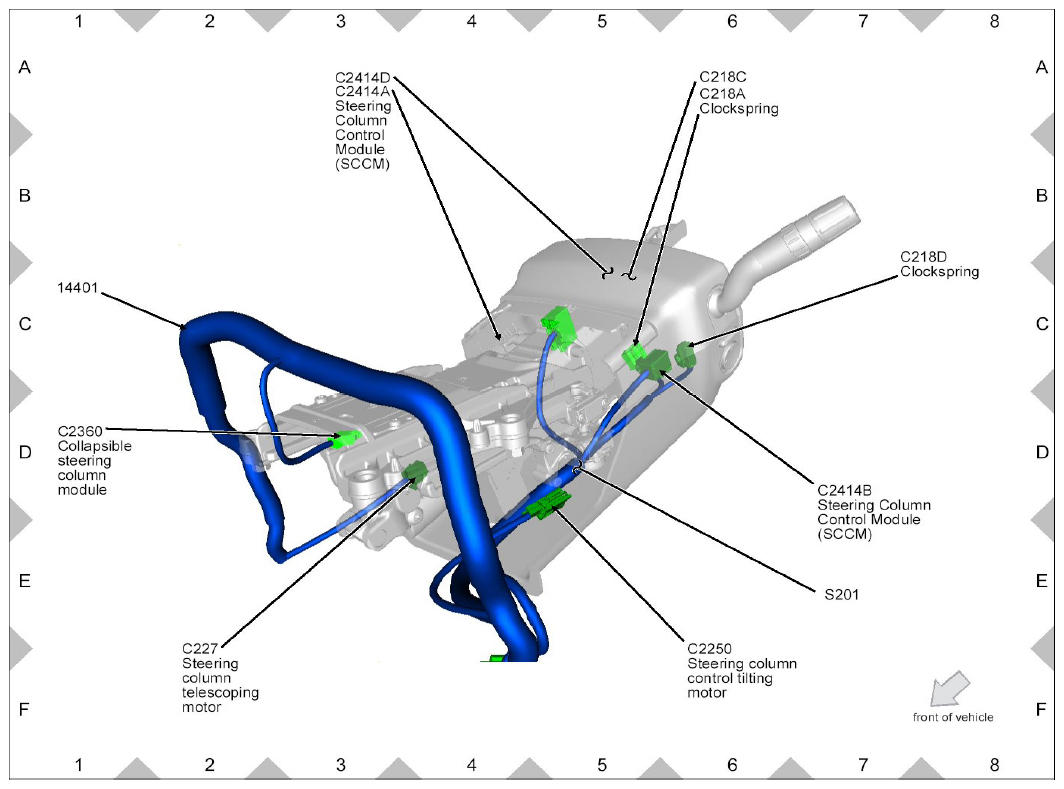

Fig 14: Steering Column Wiring Harness Connectors Location

G09082996

Courtesy of FORD MOTOR CO.

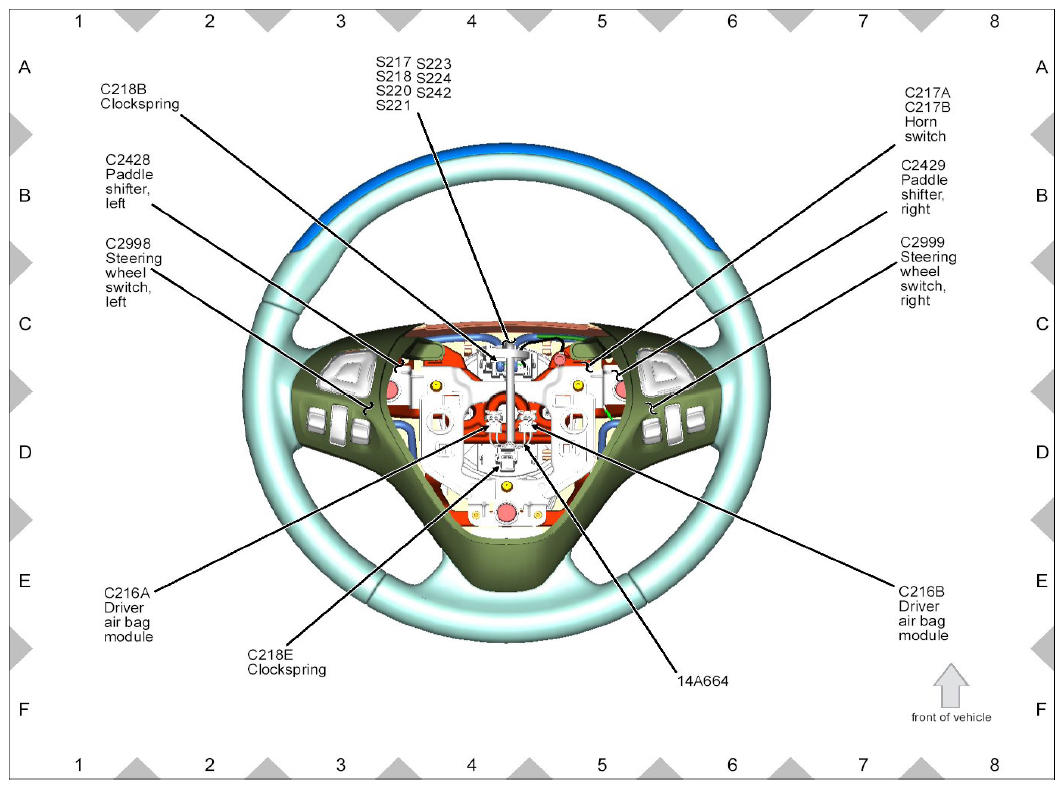

Fig 15: Steering Wheel Wiring Harness Connectors Location

G09082997

Courtesy of FORD MOTOR CO.

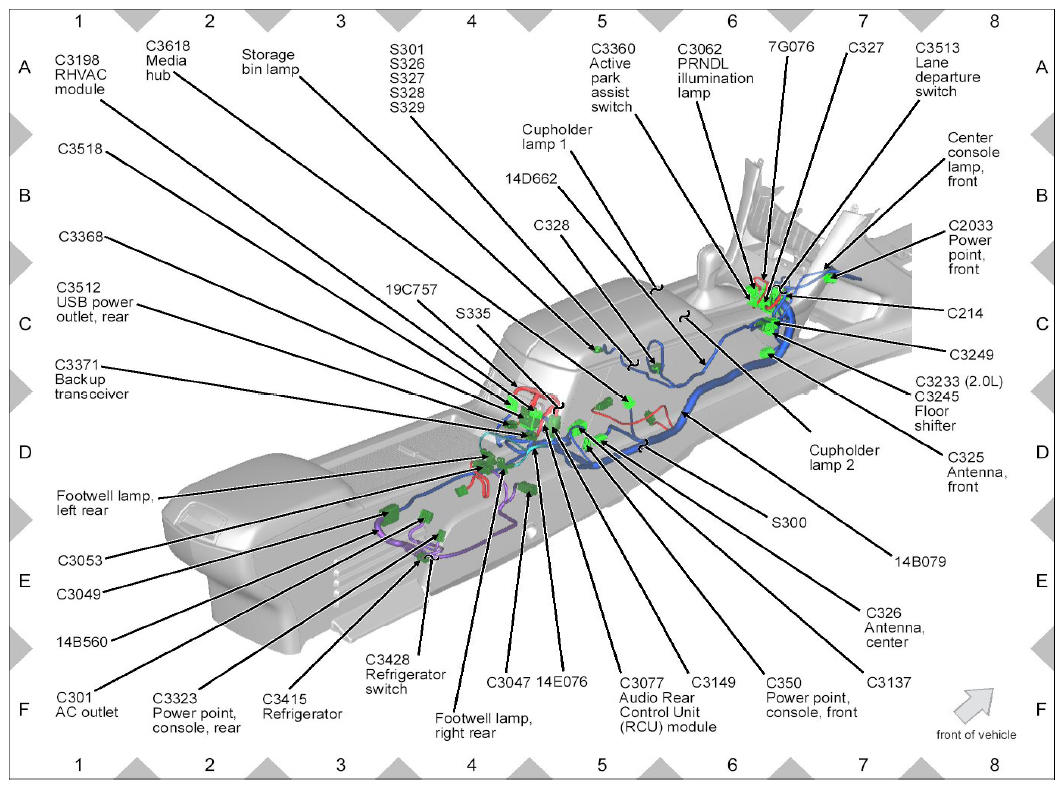

Fig 16: Center Console Wiring Harness Connectors Location

G09082998

Courtesy of FORD MOTOR CO.

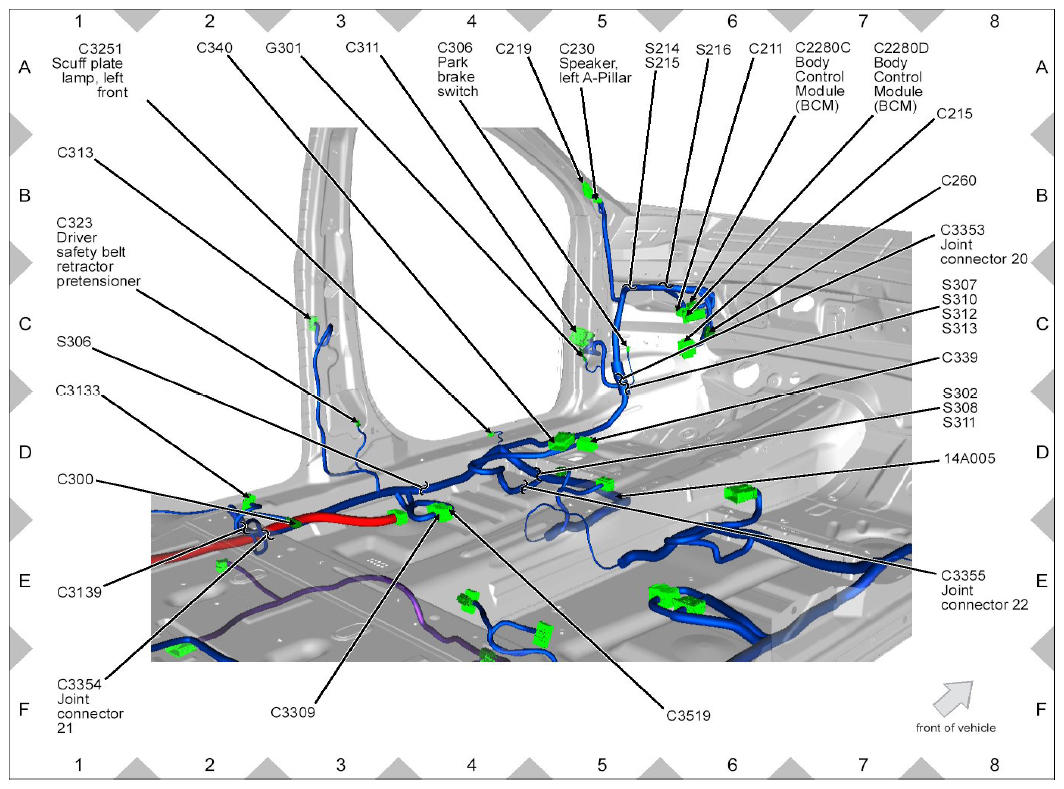

Fig 17: LH Front Compartment Wiring Harness Connectors Location

G09082999

Courtesy of FORD MOTOR CO.

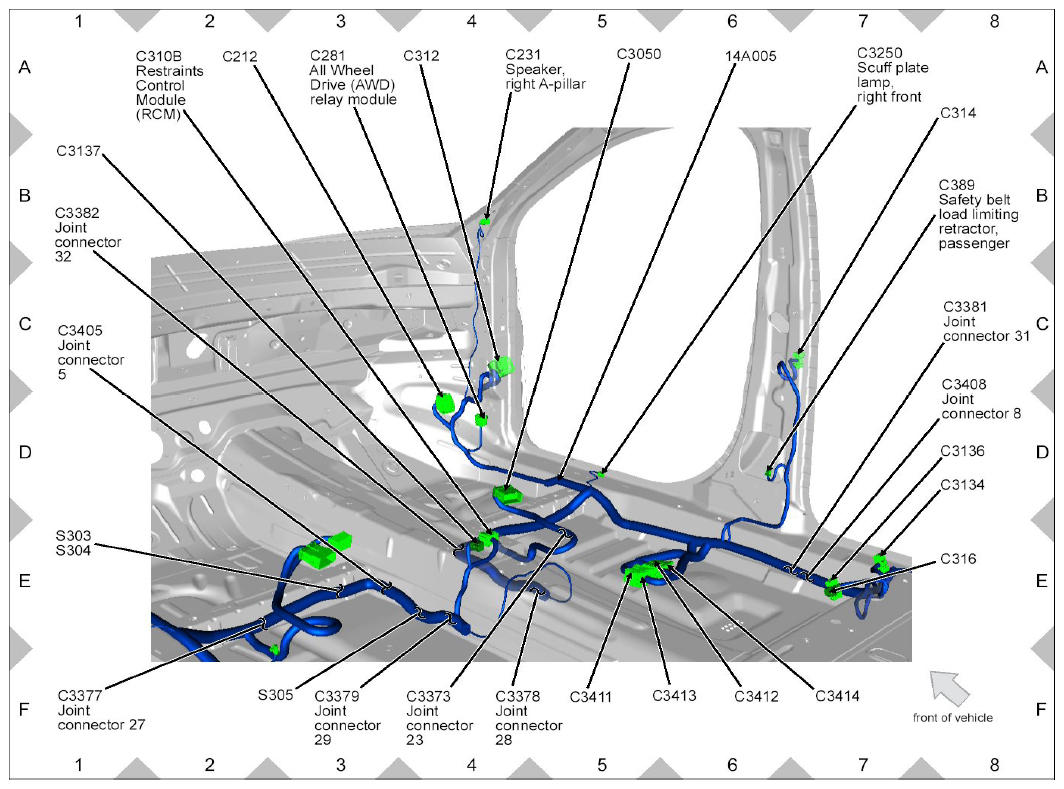

Fig 18: RH Front Compartment Wiring Harness Connectors Location

G09083000

Courtesy of FORD MOTOR CO.

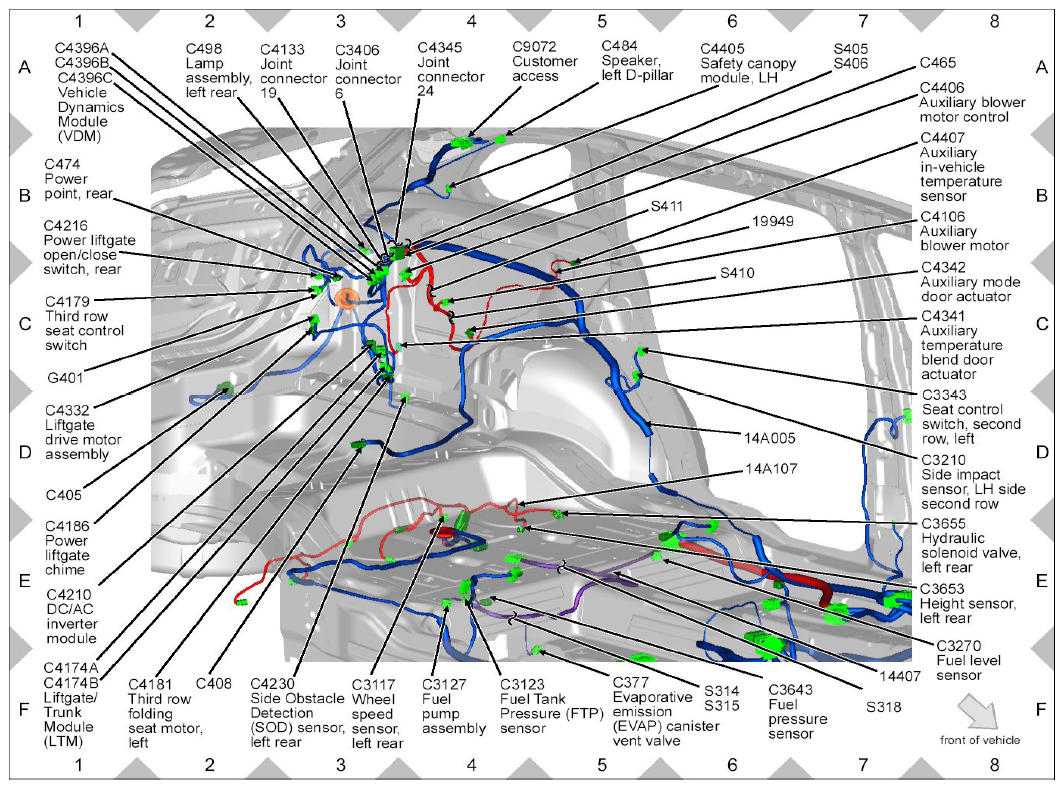

Fig 19: LH Rear Compartment Wiring Harness Connectors Location

G09083001

Courtesy of FORD MOTOR CO.

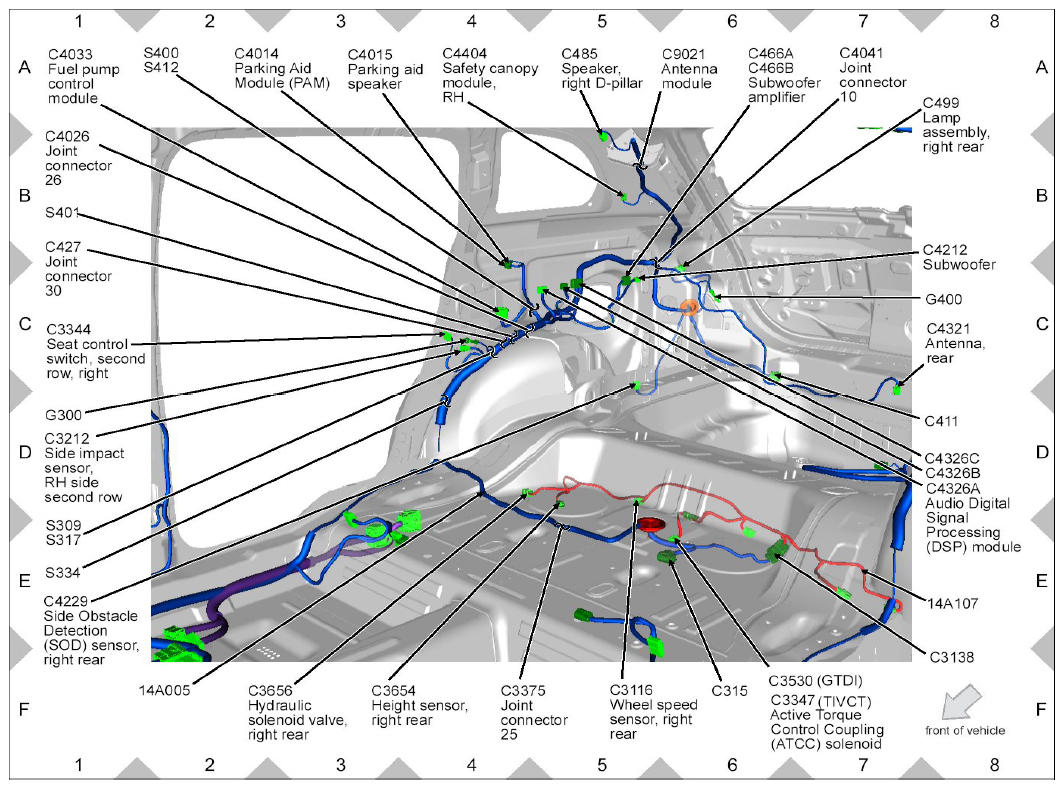

Fig 20: RH Rear Compartment Wiring Harness Connectors Location

G09083002

Courtesy of FORD MOTOR CO.

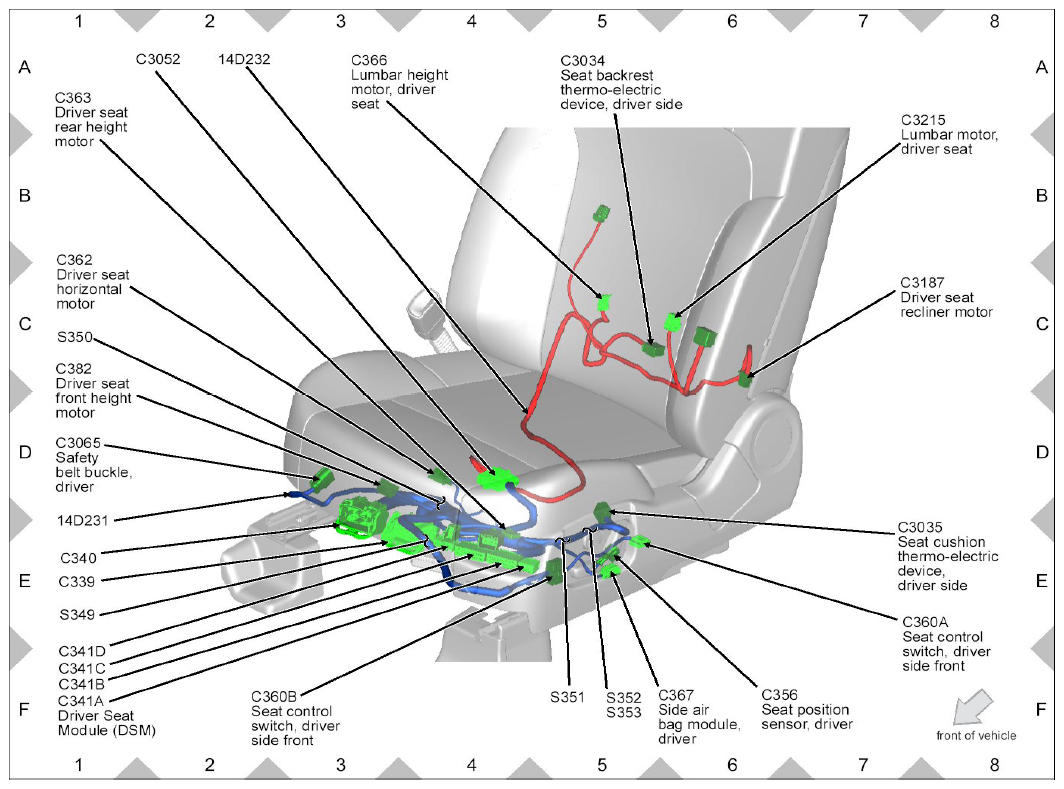

Fig 21: Driver Seat Wiring Harness Connectors Location

G09083003

Courtesy of FORD MOTOR CO.

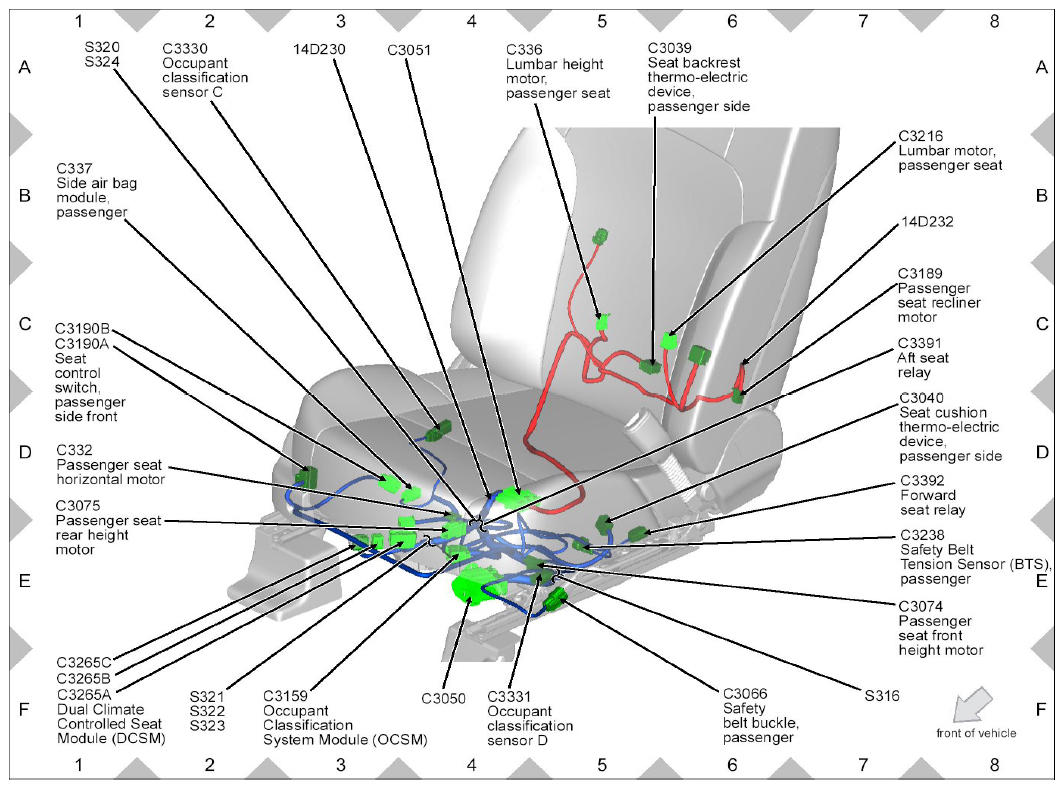

Fig 22: Front Passenger Seat Wiring Harness Connectors Location

G09083004

Courtesy of FORD MOTOR CO.

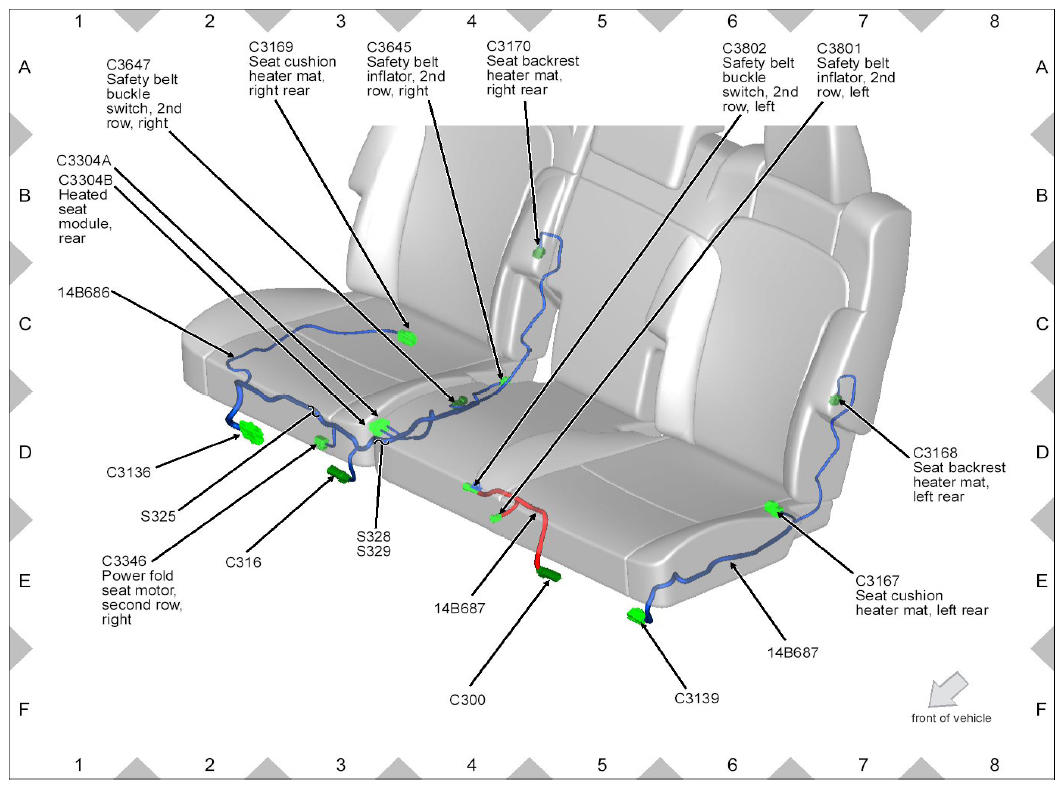

Fig 23: Rear Seat Wiring Harness Connectors Location (Bench Seat)

G09083005

Courtesy of FORD MOTOR CO.

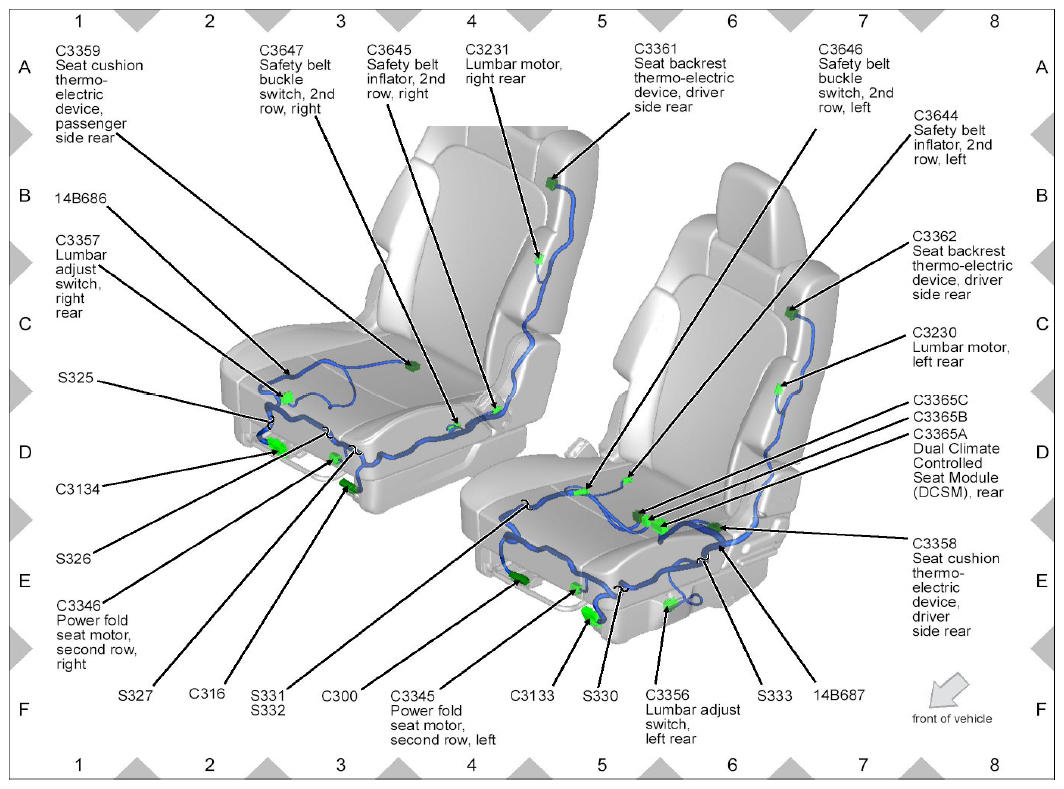

Fig 24: Rear Seat Wiring Harness Connectors Location (Seperate Seat)

G09083006

Courtesy of FORD MOTOR CO.

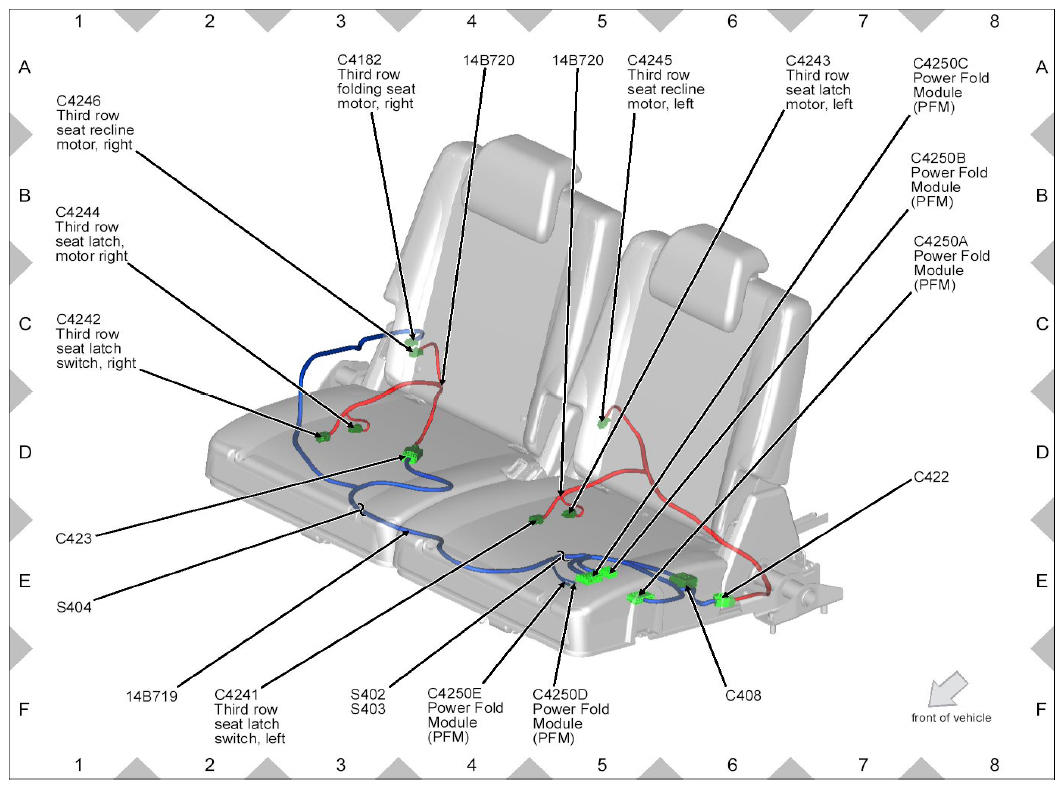

Fig 25: Third Row Rear Passenger Seat Wiring Harness Connectors Location

G09083007

Courtesy of FORD MOTOR CO.

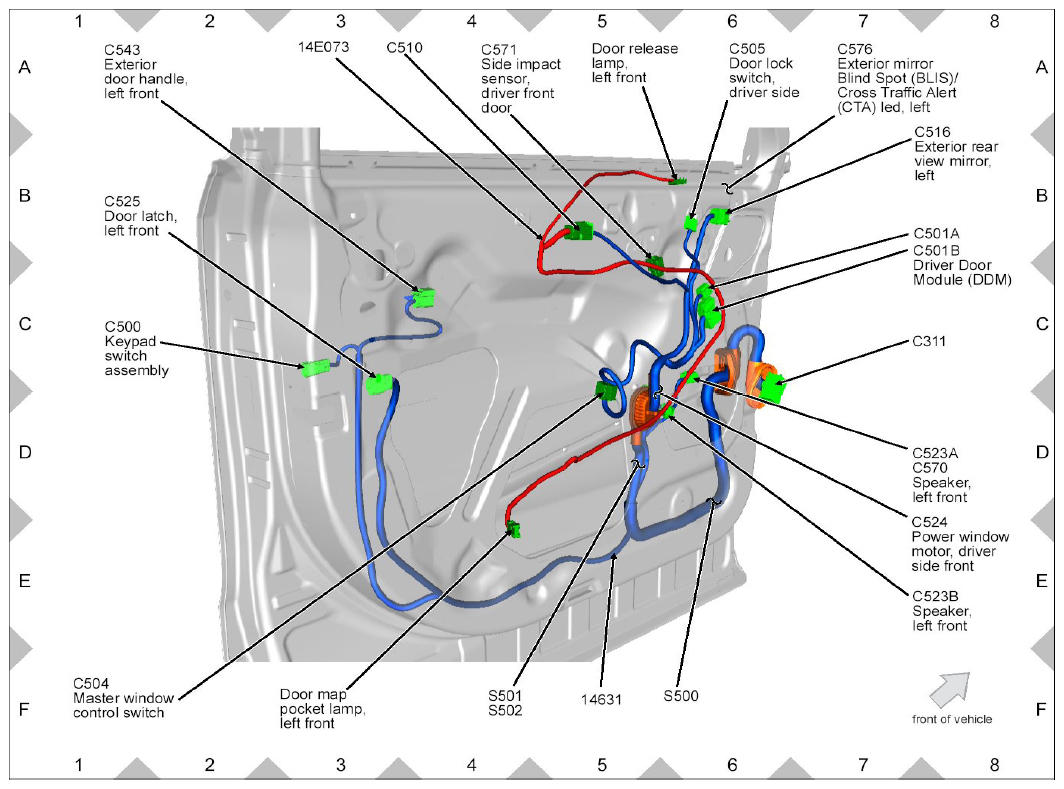

Fig 26: LH Front Door Wiring Harness Connectors Location

G09083008

Courtesy of FORD MOTOR CO.

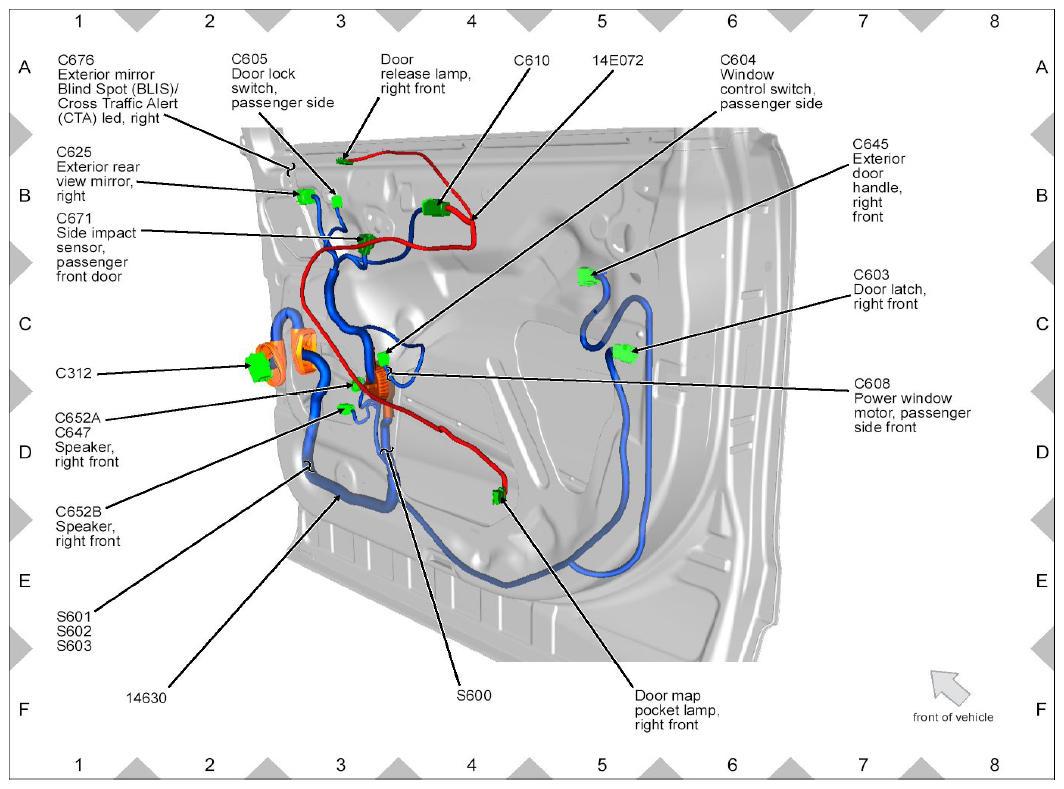

Fig 27: RH Front Door Wiring Harness Connectors Location

G09083009

Courtesy of FORD MOTOR CO.

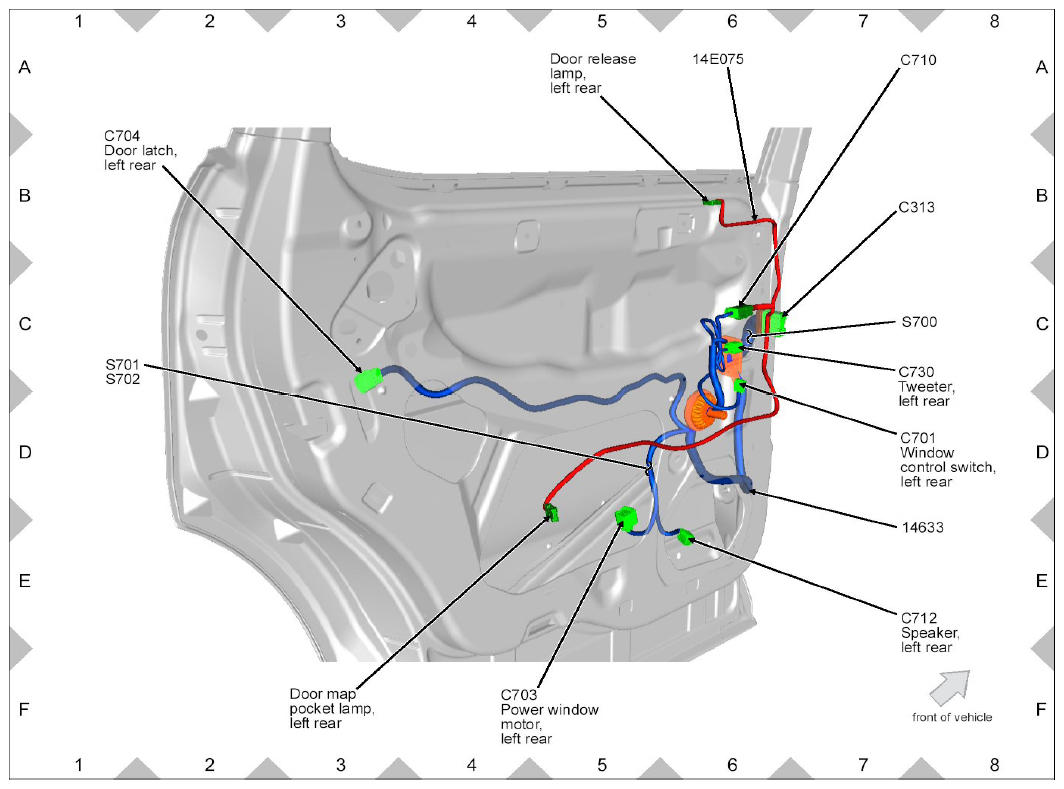

Fig 28: LH Rear Door Wiring Harness Connectors Location

G09083010

Courtesy of FORD MOTOR CO.

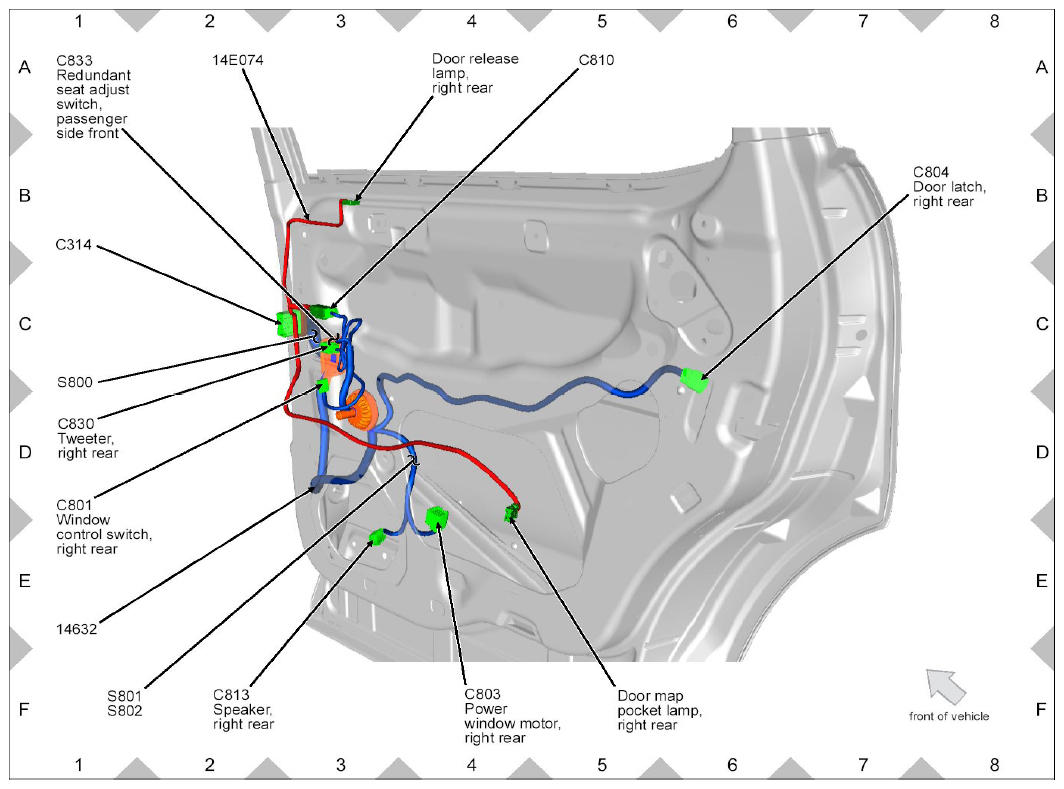

Fig 29: RH Rear Door Wiring Harness Connectors Location

G09083011

Courtesy of FORD MOTOR CO.

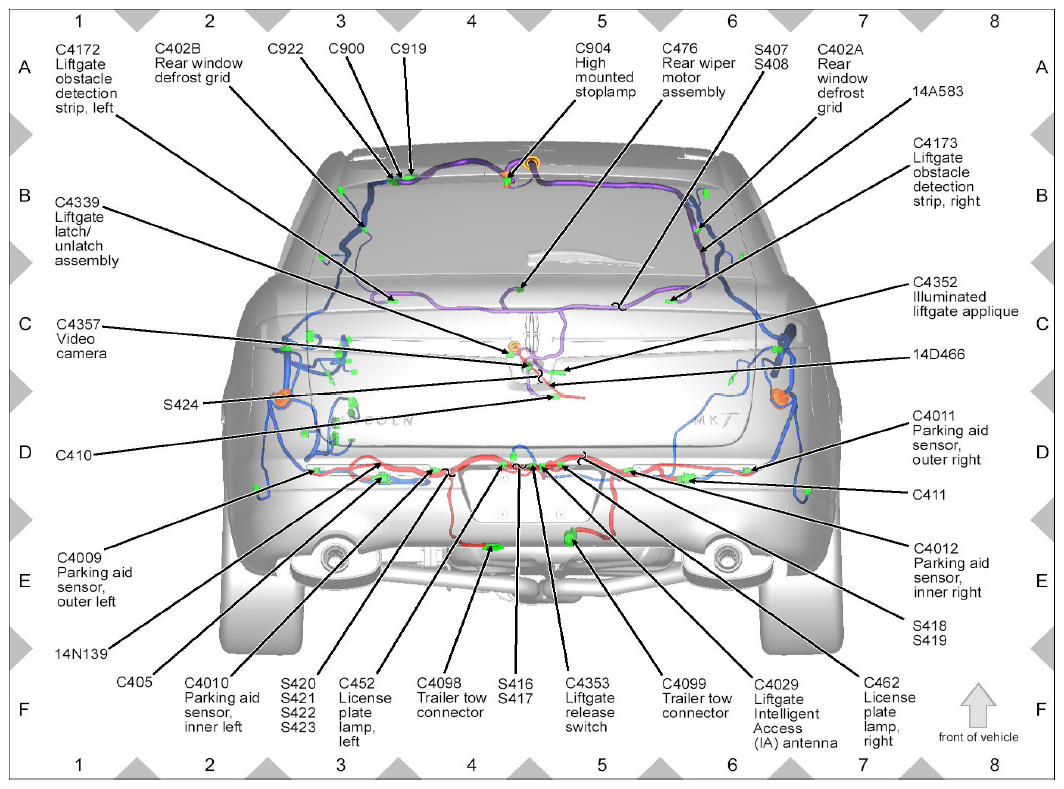

Fig 30: Liftgate Wiring Harness Connectors Location

G09083012

Courtesy of FORD MOTOR CO.

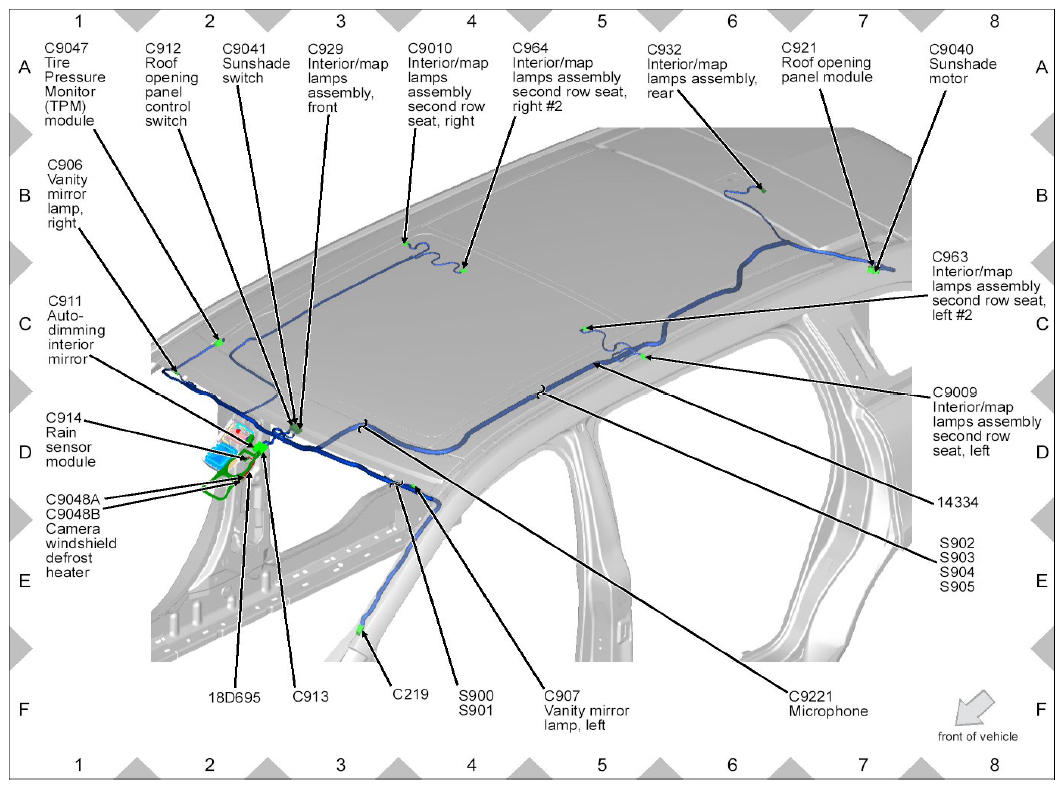

Fig 31: Roof Wiring Harness Connectors Location

G09083013

Courtesy of FORD MOTOR CO.
